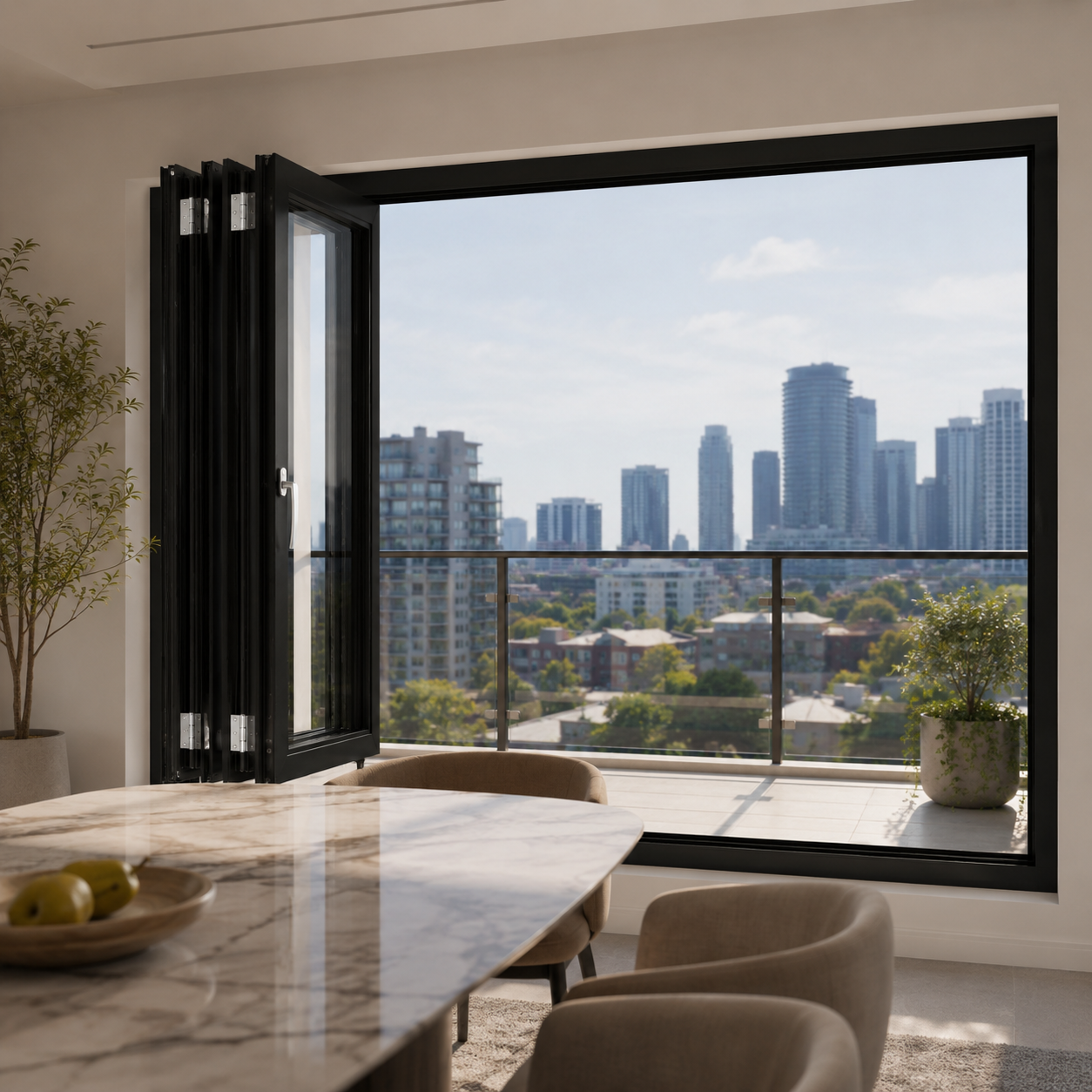

75 SERIES THERMAL BREAK SLIM NARROW FOLDING WINDOWS
Certified product solutions for residential, commercial, and project-based applications.
Certified Performance
Project Applications
Technical Support
Product Overview
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
| Series | 75 Series |
| Product Type | Thermal Break Slim Narrow Folding Window |
| Profile | Thermal Break |

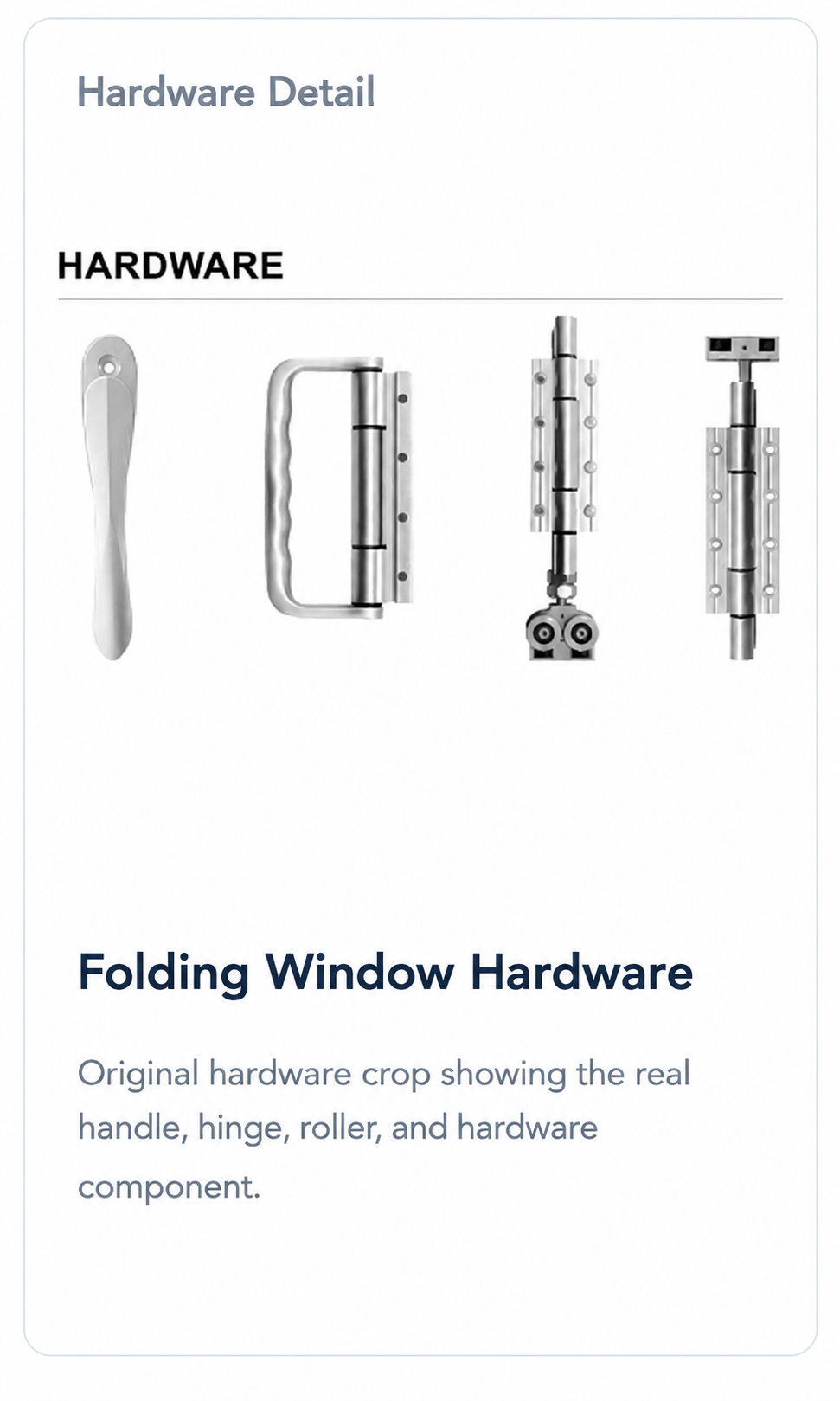

| Hardware Options | Dtop, LSMA |
| Color Options | White / Black |

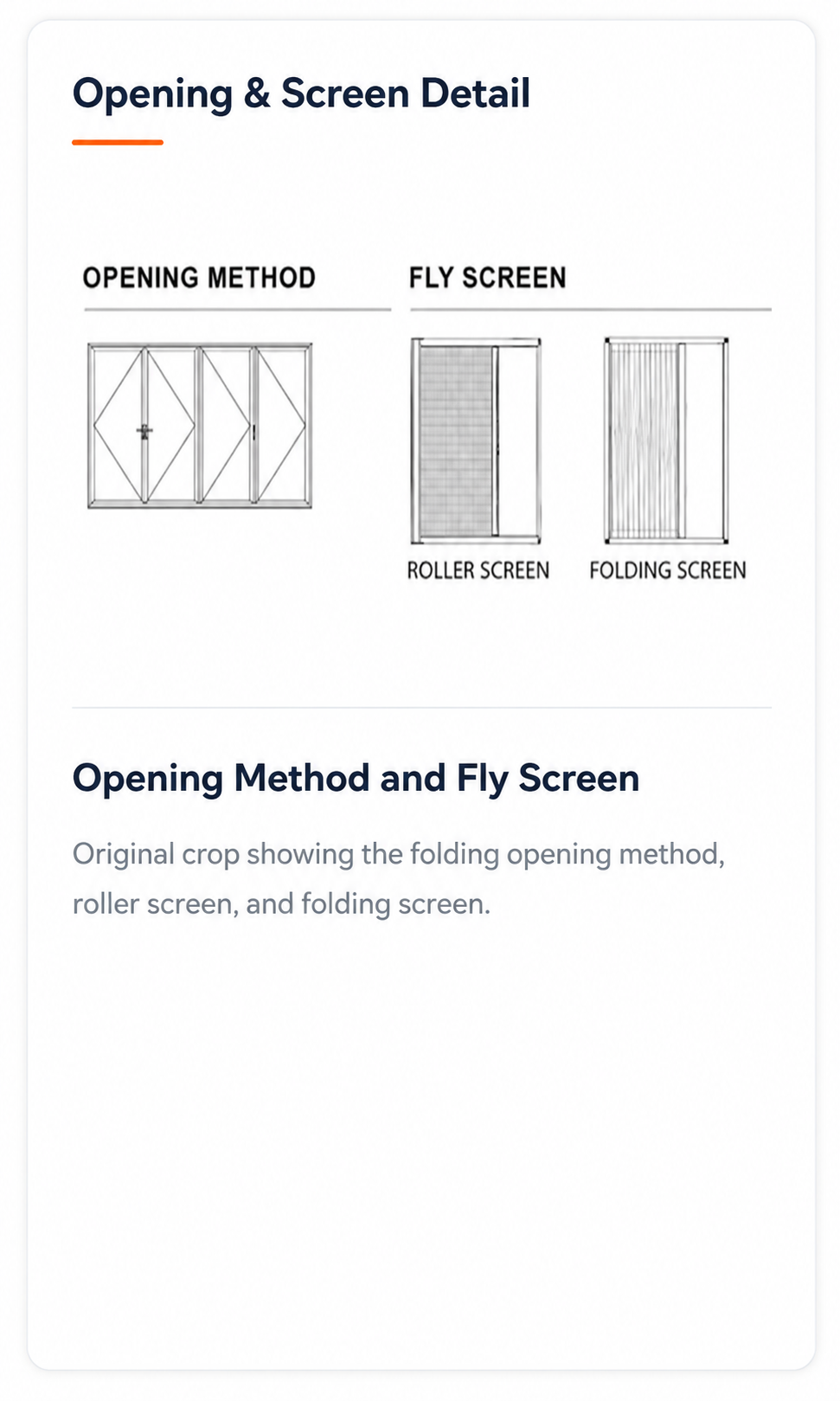

| Opening Method | Folding |
| Fly Screen Options | Roller Screen / Folding Screen |

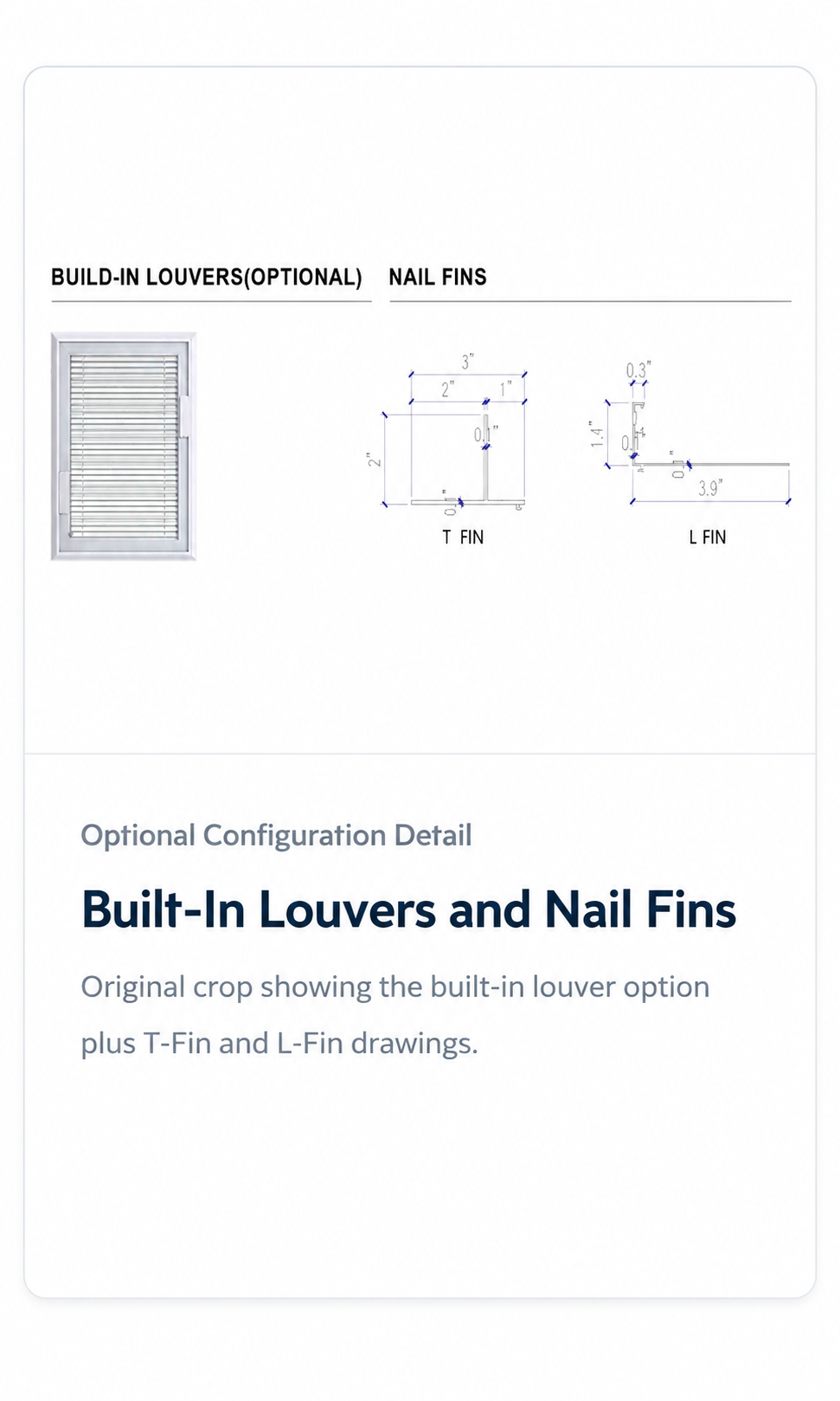

| Optional Configuration | Built-In Louvers |
| Nail Fin Options | T-Fin / L-Fin |
Certificates
AS2047 Certificate
NFRC Certification
NAFS Test Report
Energy Star
ISO 9001
Installation Video
Main Installation Guide
Certified system installation process overview.
Waterproofing Details
Key sealing and flashing steps.
Hardware Adjustment
Hardware and sash adjustment guide.
On-site Testing
Project testing and final inspection.
Download Center
Product Manual
PDF · 2.4 MB
Installation Guide
PDF · 3.1 MB
CAD & BIM Files
PDF · 15.5 MB
Test Report
PDF · 1.2 MB
Product Details / Features

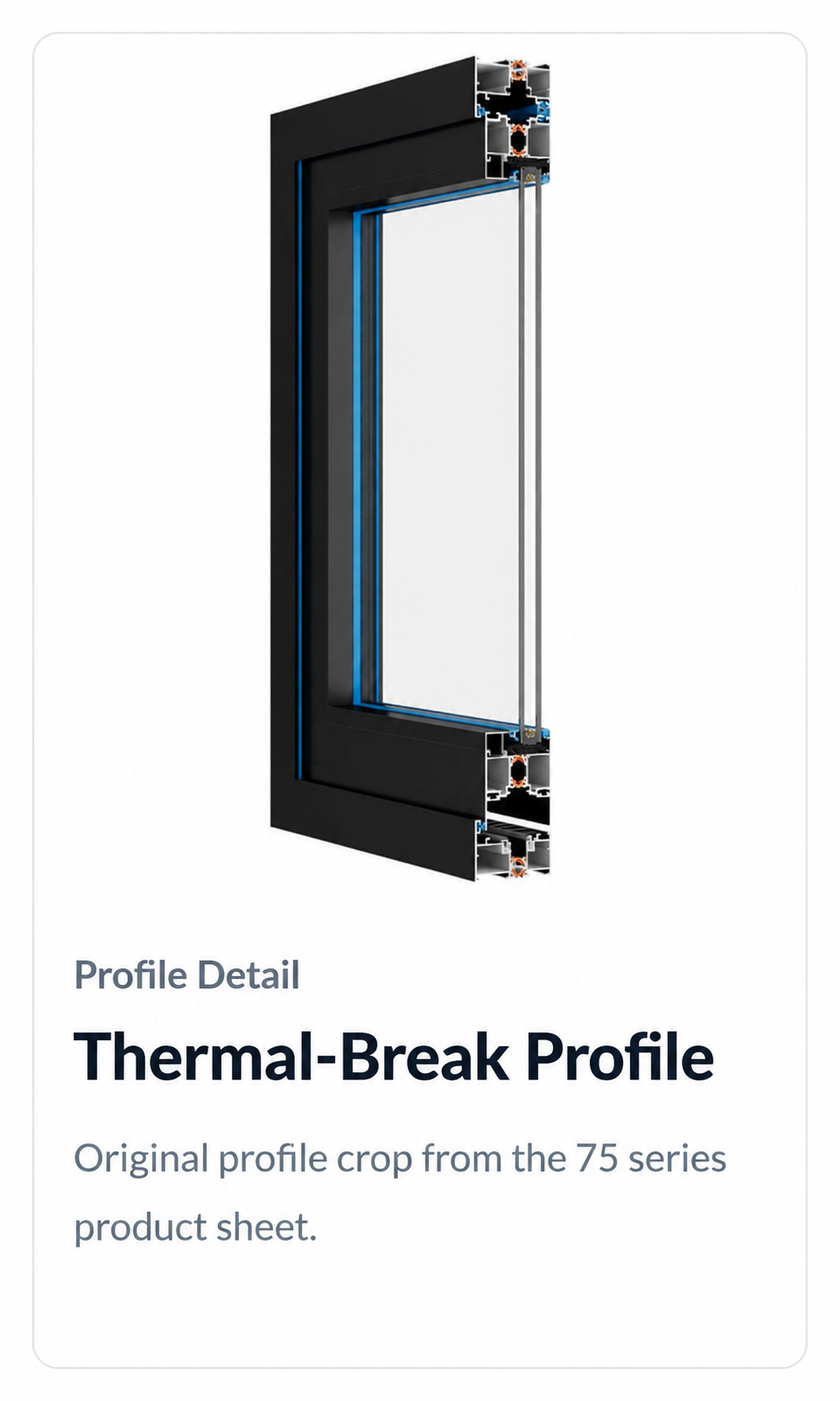

Thermal-Break Profile
Improved insulation and structural performance.
Multi-Point Locking
Secure and smooth locking system.
Drainage Design
Integrated drainage for weather resistance.
EPDM Sealing
Durable gasket system for air and water tightness.
Narrow Sightline
Clean visual profile for modern projects.
Custom Glass Options
Low-E, laminated and acoustic glass options.
Related Projects
Performance Parameters
| Parameter Item | Specification |
|---|---|
| Thickness | 2.0 |
| Wall Occupancy | 75 |
| Standard Glass | 5mm + 12Ar + 5mm Low-e Tempered Glass |

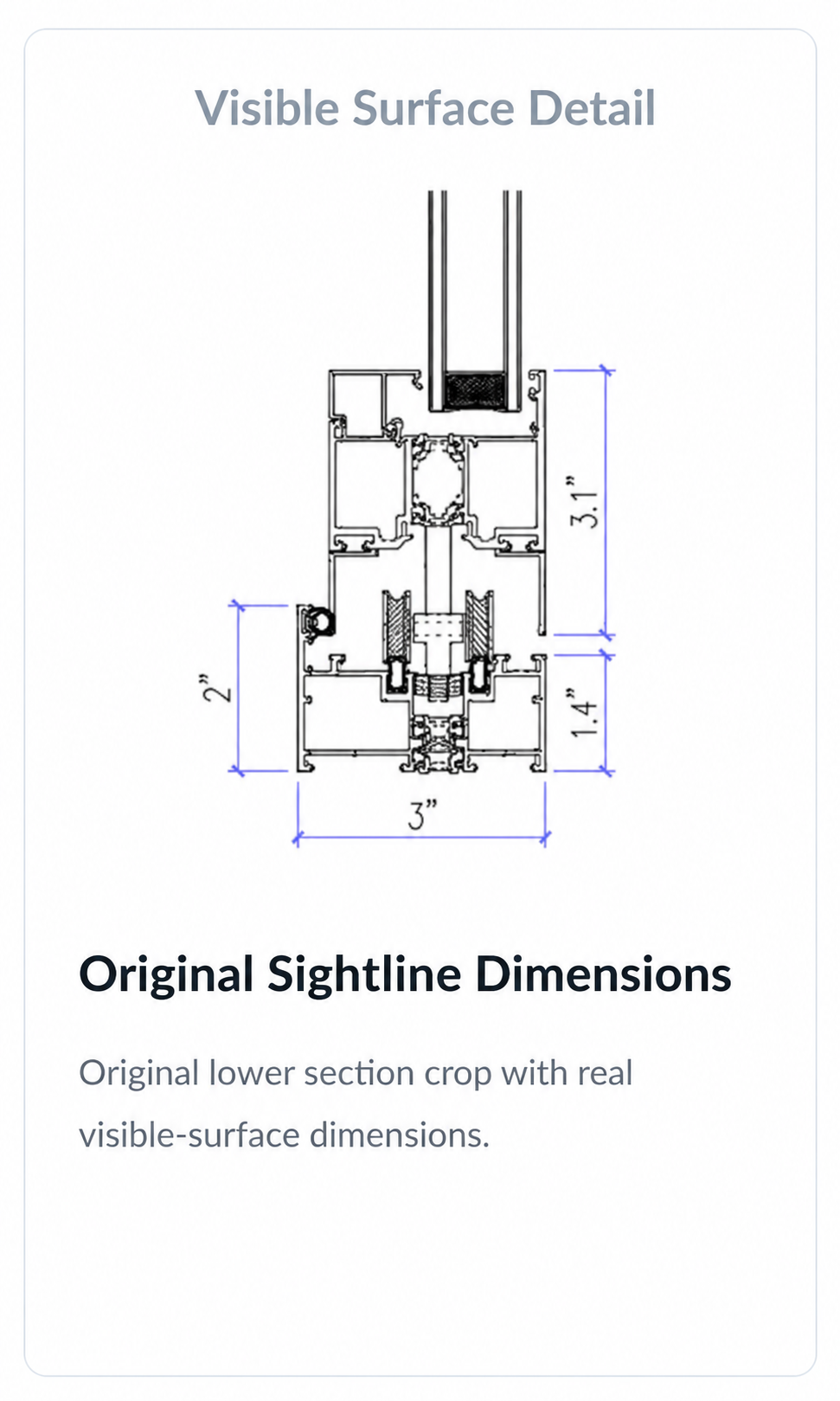

| Large Frame Visible Surface | 2" |
| Small Frame Visible Surface | 1.4" |
| Large Sash Visible Surface | 3.1 |
