Certified Product
80 SERIES THERMAL BREAK FIXED WINDOWS
Certified product solutions for residential, commercial, and project-based applications.
Certified Performance
Project Applications
Technical Support
Product Overview
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Product Specifications
Features
HEAT INSULATION
Download Center
Nail Fin Installation Guide
PDF · 3.1 MB
CAD & BIM Files
PDF · 3.5 MB
NFRC Certification
PDF · 2.4 MB
Test Report
PDF · 3.2 MB
Performance Parameters
| Performance Item | Result |
|---|---|
| U-Factor | 0.22–0.35 |
| Solar Heat Gain Coefficient (SHGC) | 0.20–0.27 |
| Visible Transmittance (VT) | 0.36–0.46 |
| Air Leakage Resistance | 1.5 at ±75 Pa |
| Water Penetration Resistance | 720 Pa |
| Design Pressure (DP) | 3840 Pa |
| Structural Test Pressure (STP) | 5760 Pa |
| Forced-Entry Resistance | Grade 10 |
Certificates
NFRC Certification
CPD Product Line Number: FYT-M-1
NFRC Certification Details
Document Control No.: 23.21-R6
80 Fixed window Test Report
Installation Video
Main Installation Guide
Certified system installation process overview.
80 Series Combination Frame Installation
Installation guide for the 80 Series thermal break inward-opening window combination frame.

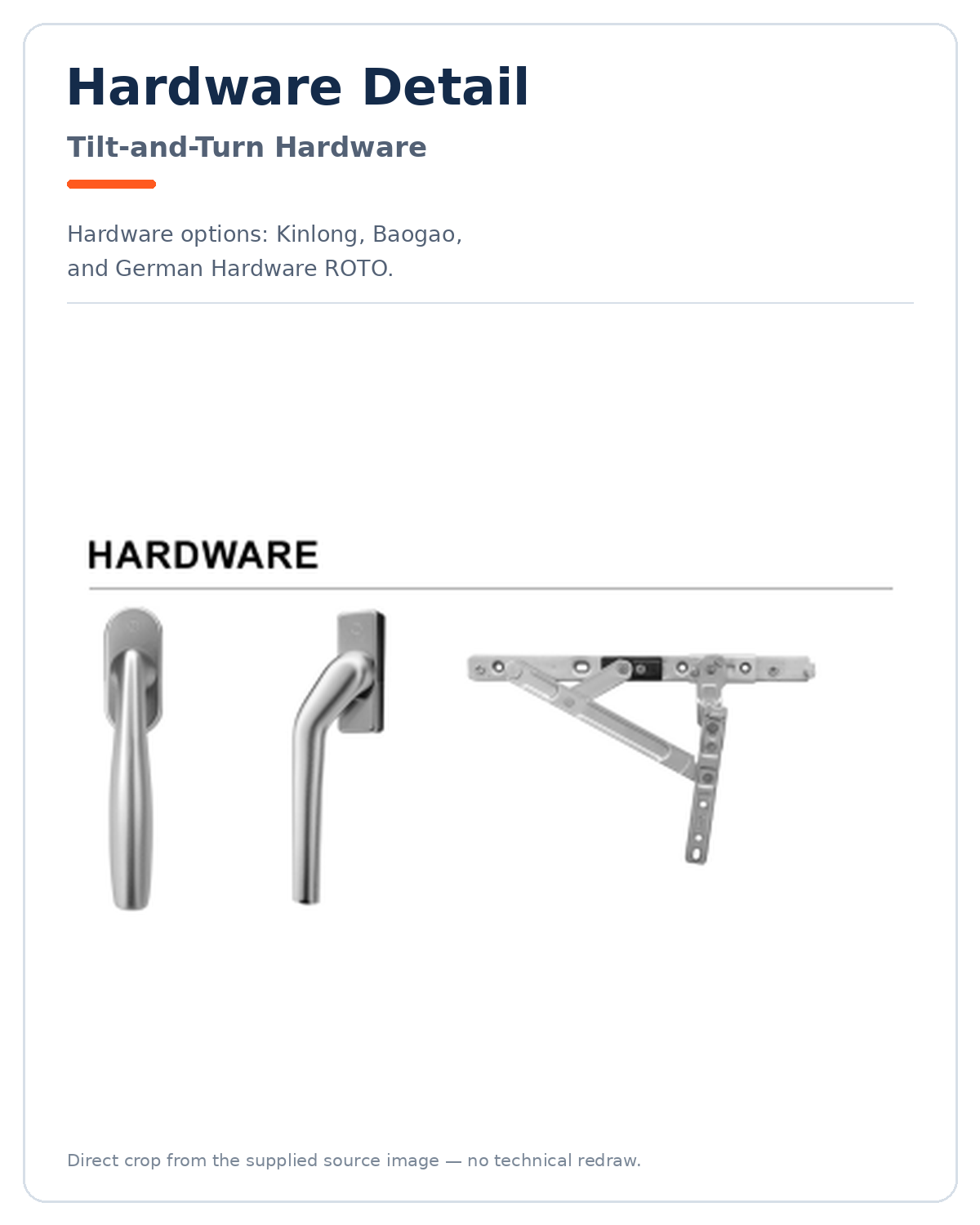

Hardware Adjustment
Hardware and sash adjustment guide.
On-site Testing
Project testing and final inspection.
Product Details / Features
Product Specifications

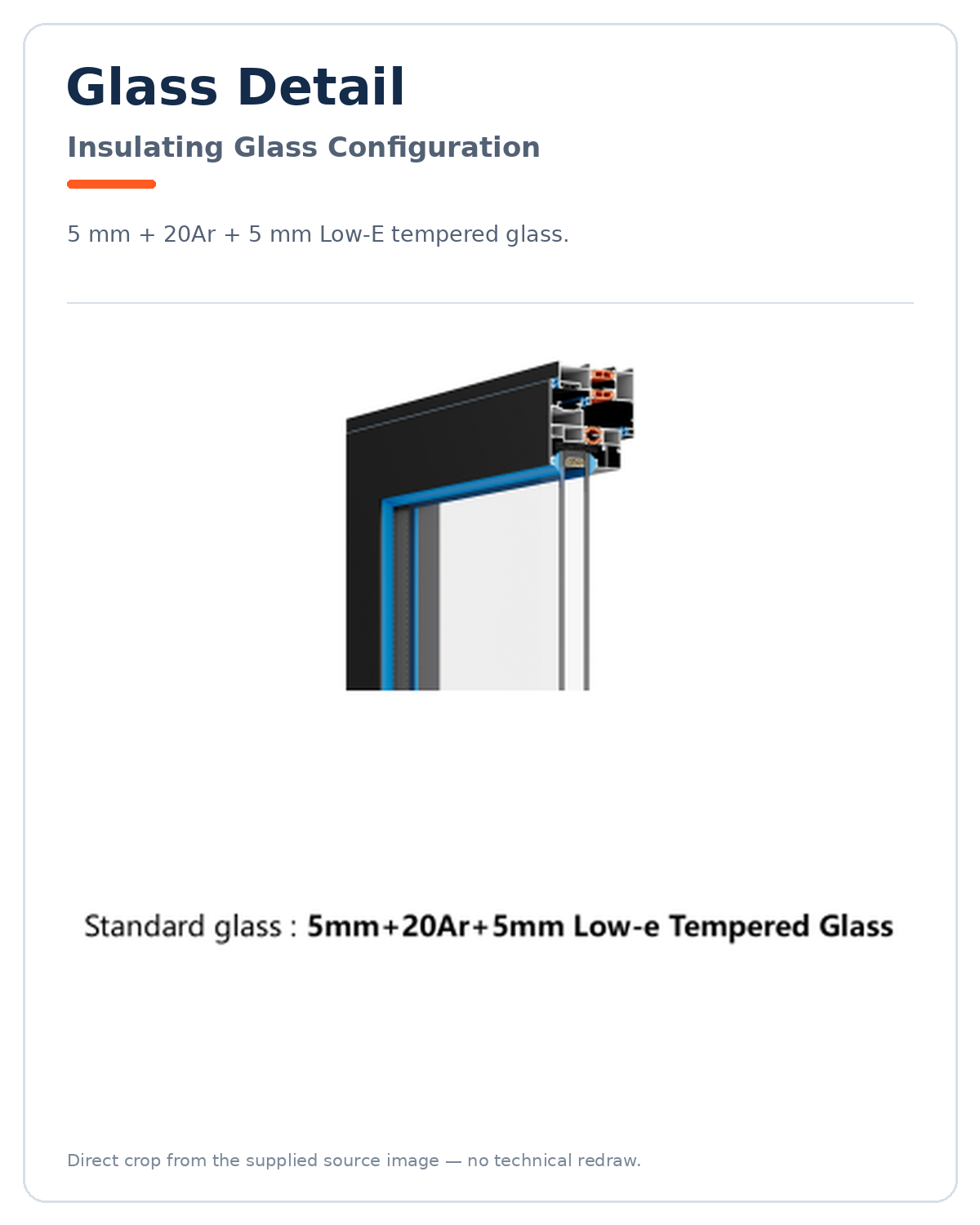

80 Series thermal break fixed window with a 1.6 mm profile, 80 mm frame depth, Low-E insulated glass, and a 3.1” visible sash surface.
Performance Parameters
Tested performance covers thermal efficiency, solar control, air and water resistance, structural strength, and forced-entry resistance.

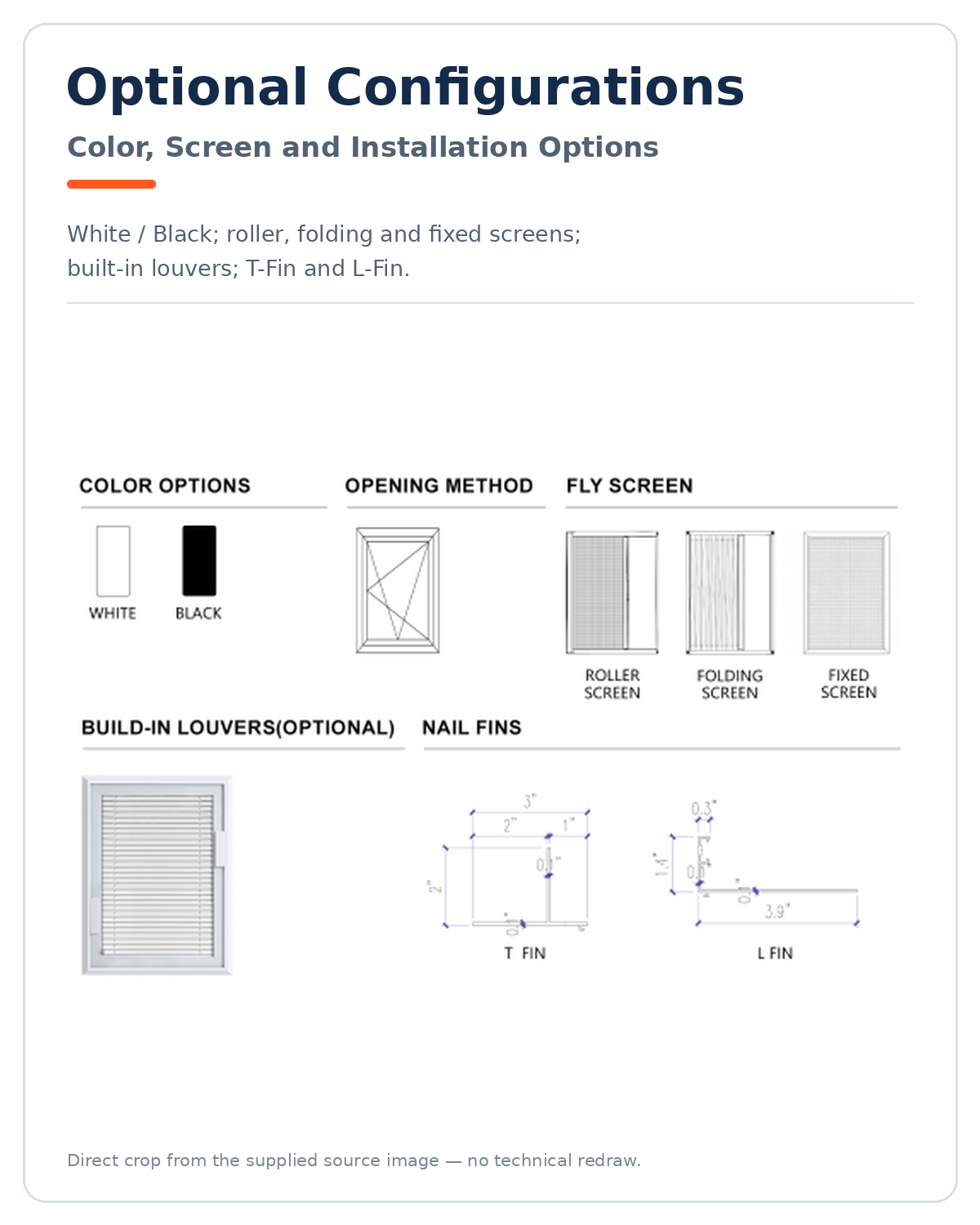

Color Options
Available standard color options: White and Black.
Fixed Window Type
Durable gasket system for air and water tightness.
Built-in Louvers (Optional)
Optional built-in louver configuration available for the 80 Series fixed window.
Nail Fins
Low-E, laminated and acoustic glass options.
Related Projects

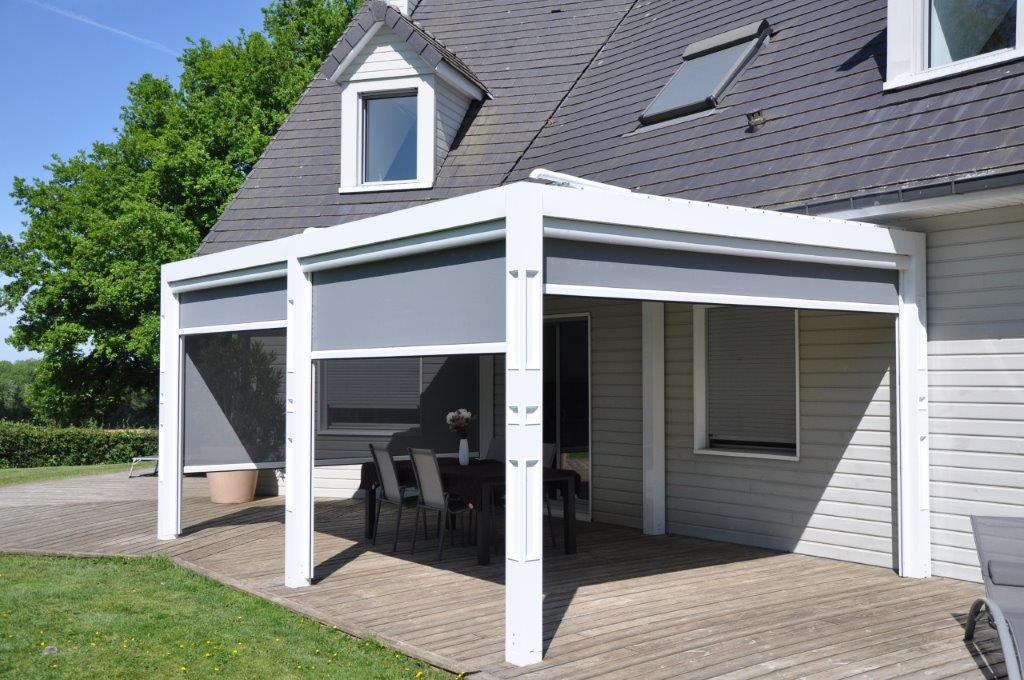

France Normandy Residential Pergola Project
Apartment | 2025
Neufbosc, France
A modern pergola for comfortable courtyard living in every season. It supports dining, reading, and relaxing while making the terrace more usable and natural.
San Juan Modern Residential Window & Door Project
Apartment | 2024
San Juan, Puerto Rico
Located in a residential neighborhood in San Juan, this project features a clean modern facade paired with an aluminum window
New York High-end Residential Windows & Doors Project
Public Building | 2022
Atlanta, GA
High-quality window and door systems with an elegant entry door improve daylighting

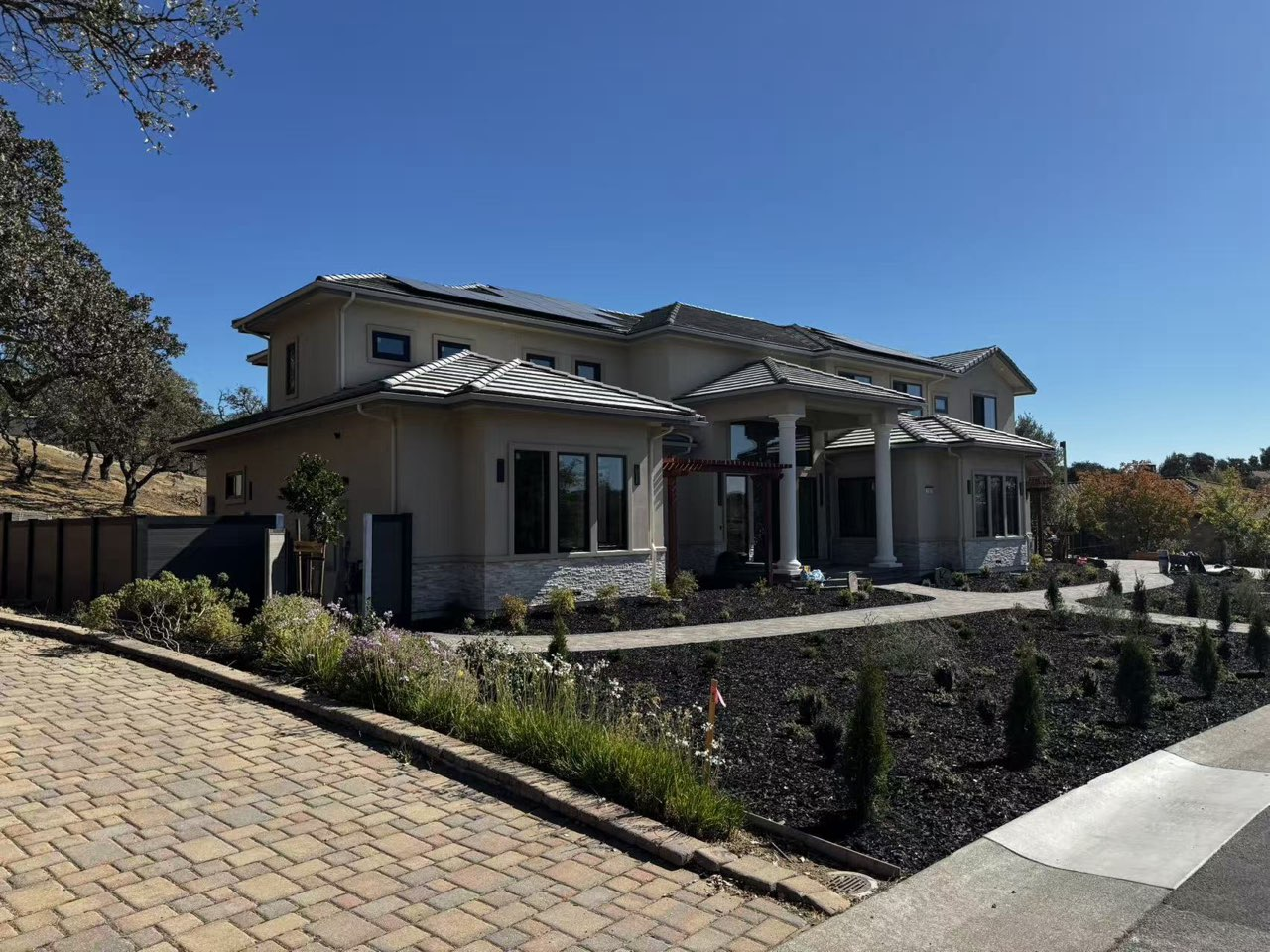

Hayward High-End Residential Window & Door Project
