120 Slim narrow fixed window
Certified product solutions for residential, commercial, and project-based applications.
Certified Performance
Project Applications
Technical Support
Product Overview
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
| Series | 120 Series |
|---|---|
| Product Type | Thermal-Break Fixed Window |
| Profile | Thermal-Break Aluminum |
| Profile Specification | 2.0 mm Thickness · 120 mm System Depth |
| Standard Glass | 5 mm Low-E + 20 mm Ar + 5 mm Tempered Glass |

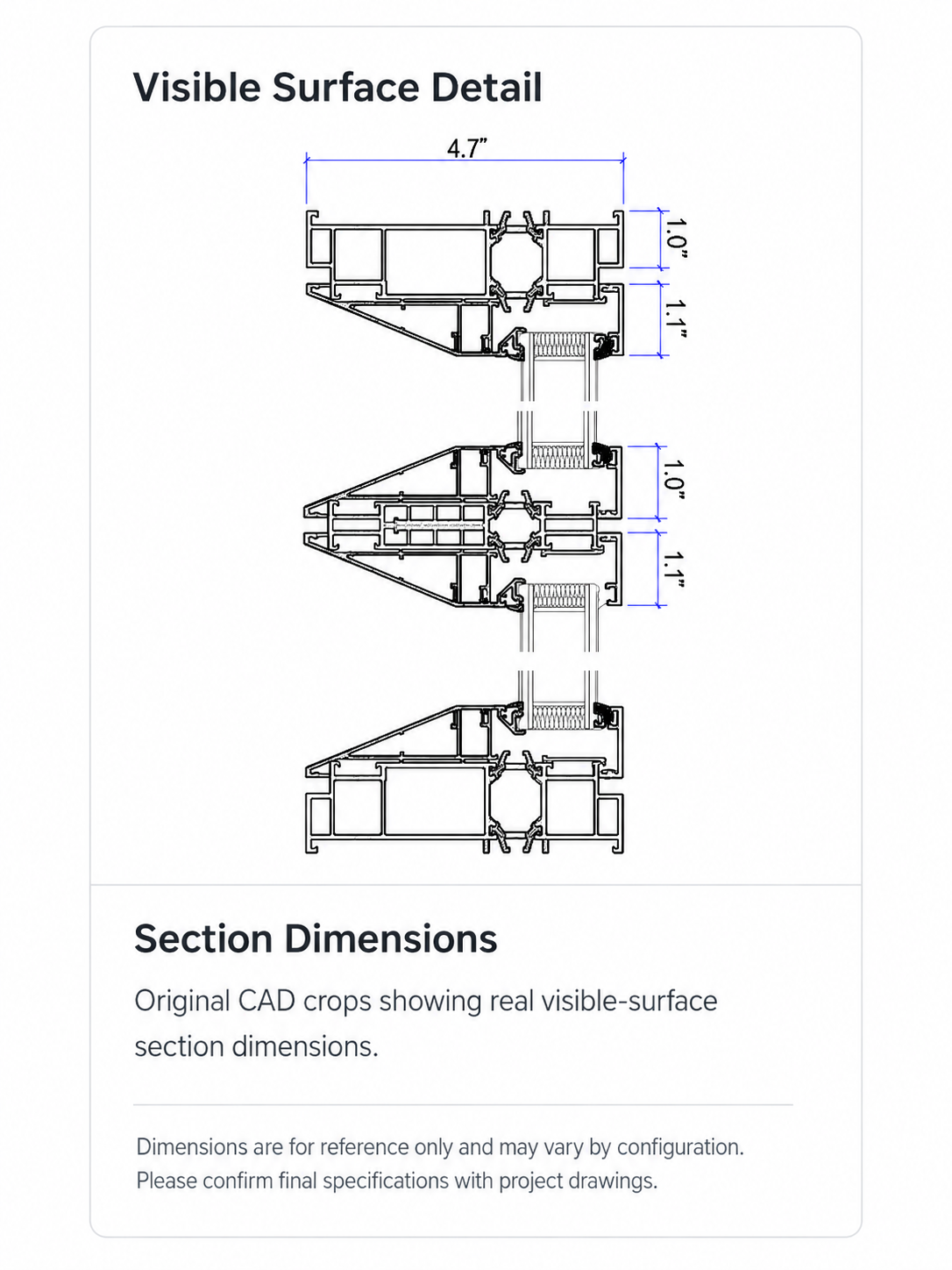

| Visible Surface | Outdoor: 25 mm · Indoor: 41 mm |

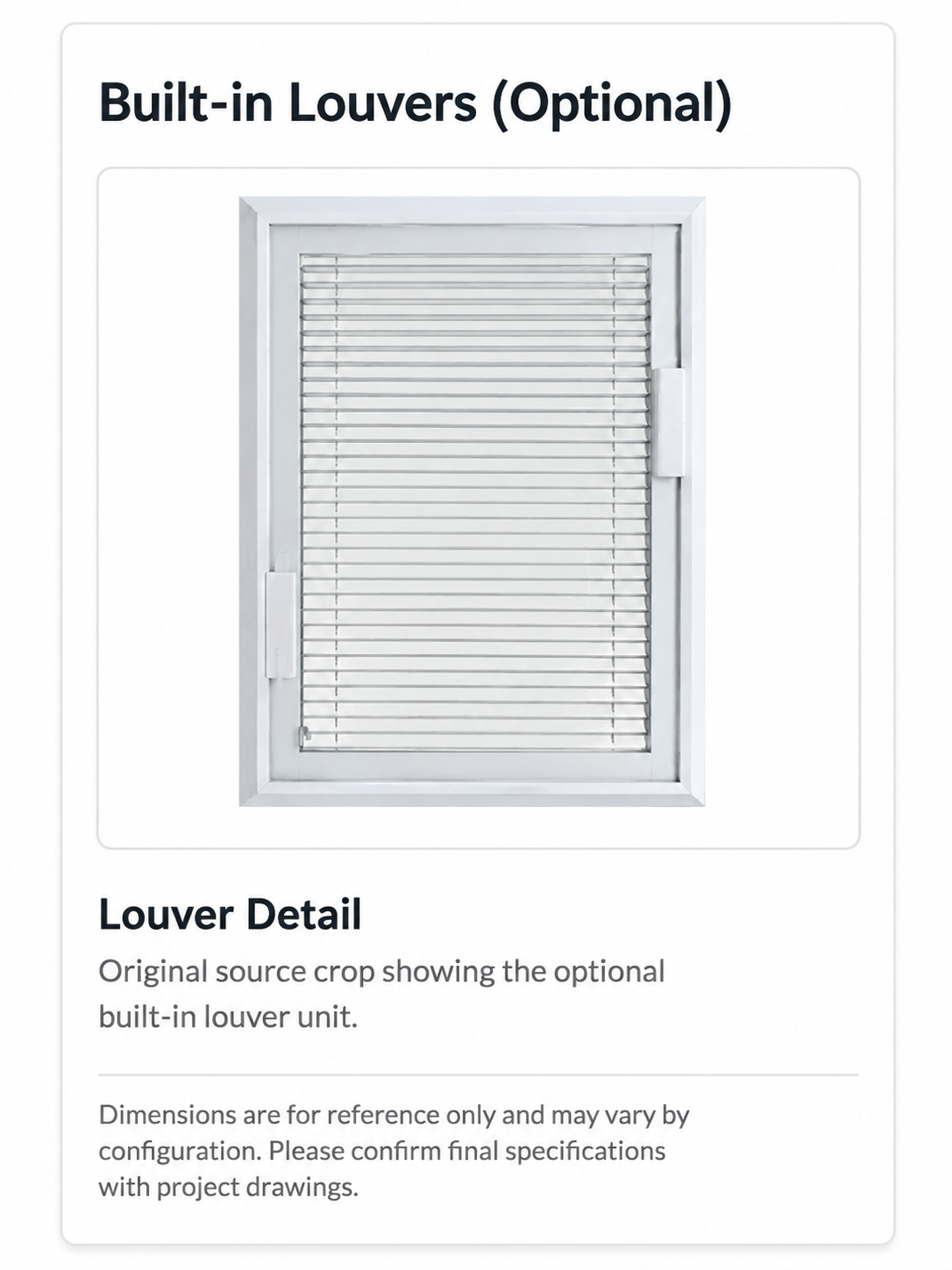

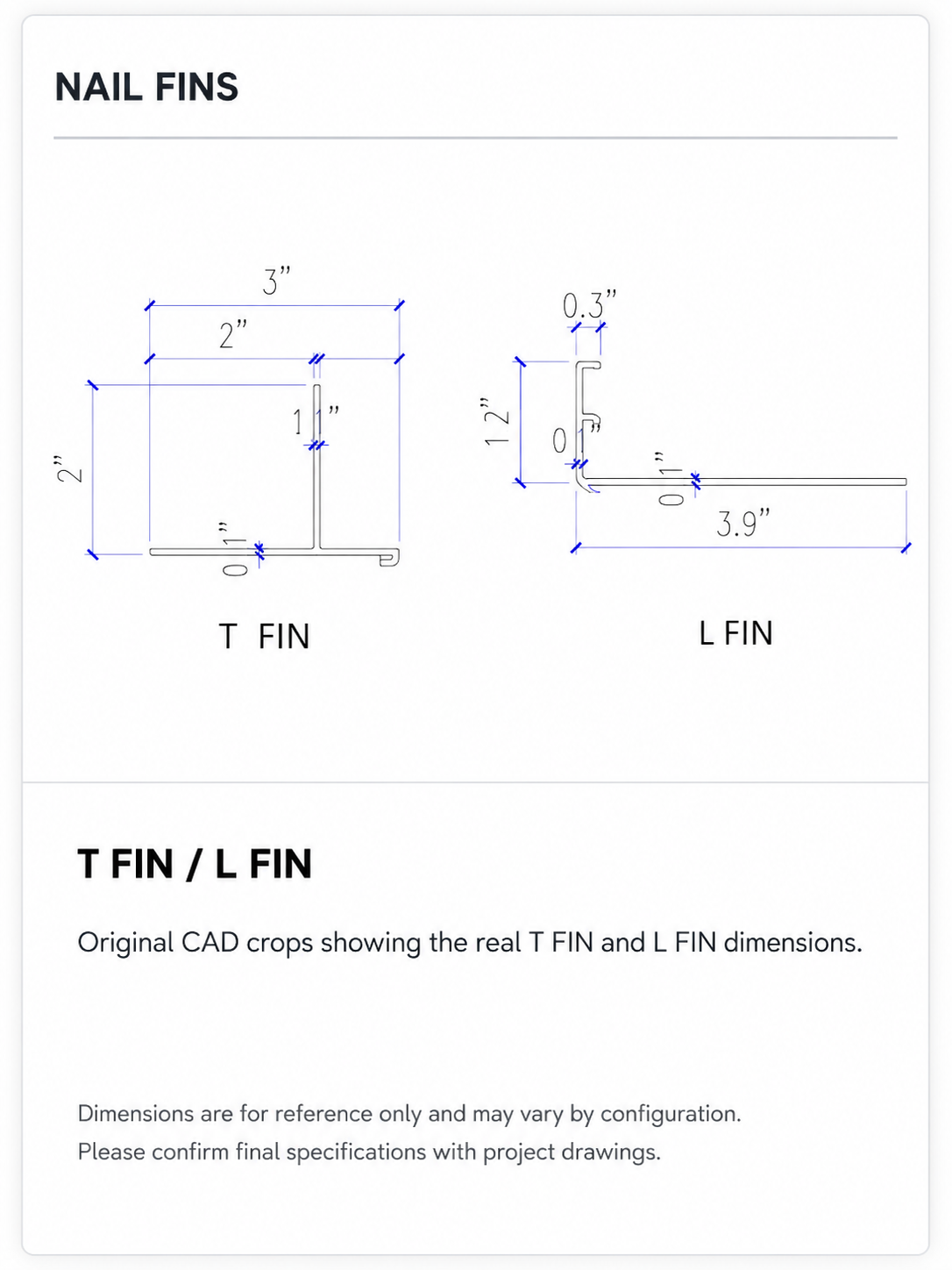

| Optional Features | Built-In Louvers · T Fin · L Fin |
Certificates
AS2047 Certificate

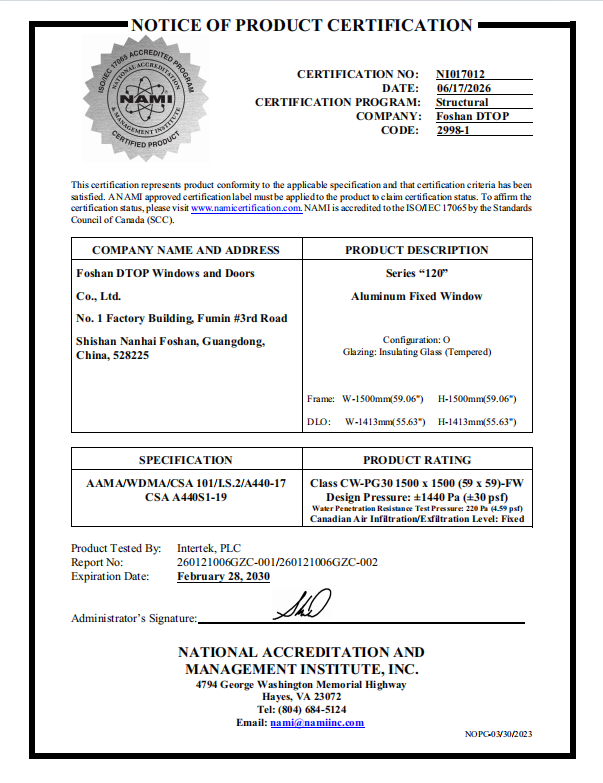

NFRC Certification

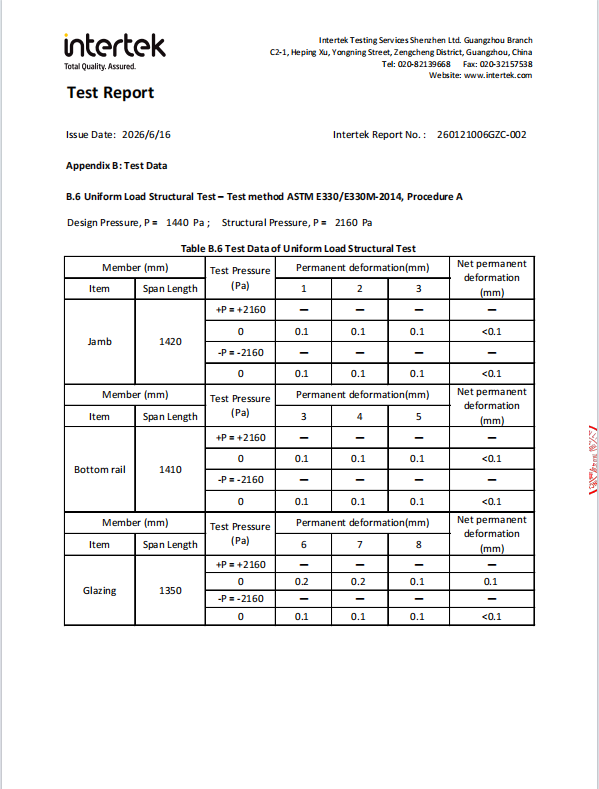

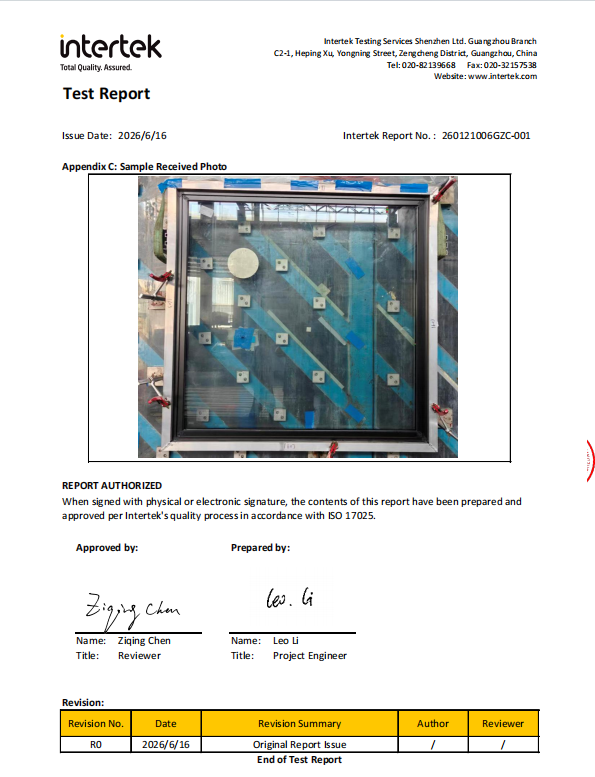

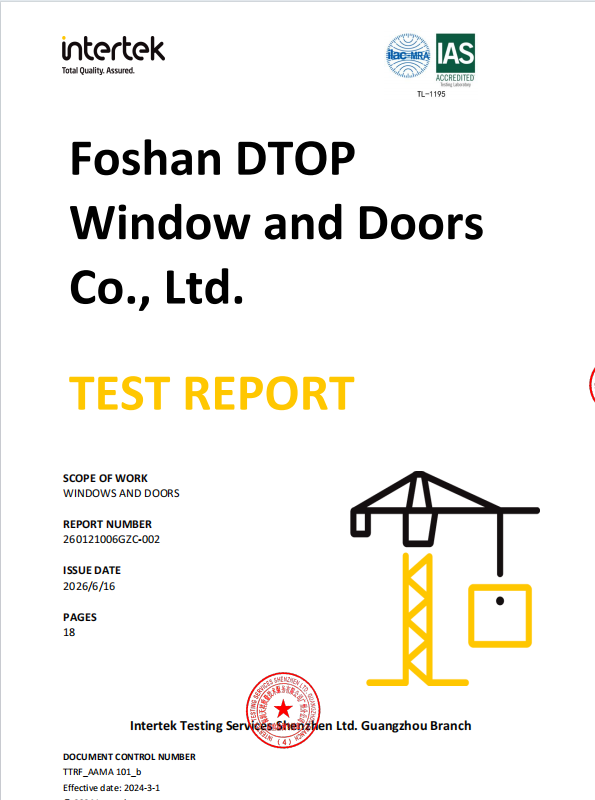

NAFS Test Report
Energy Star
ISO 9001
Installation Video
Main Installation Guide
Certified system installation process overview.
Waterproofing Details
Key sealing and flashing steps.
Hardware Adjustment
Hardware and sash adjustment guide.
On-site Testing
Project testing and final inspection.
Download Center
Product Manual
PDF · 2.4 MB
Installation Guide
PDF · 3.1 MB
CAD & BIM Files
PDF · 15.5 MB

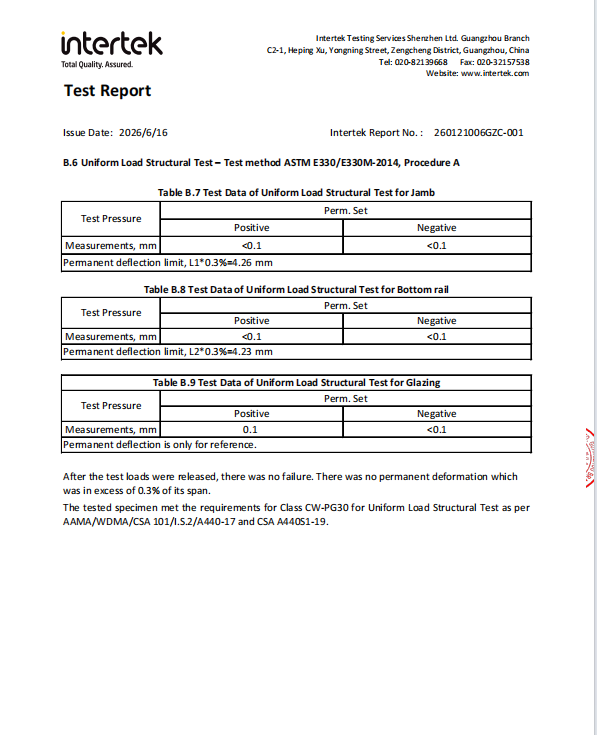

Test Report
PDF · 1.2 MB
Product Details / Features

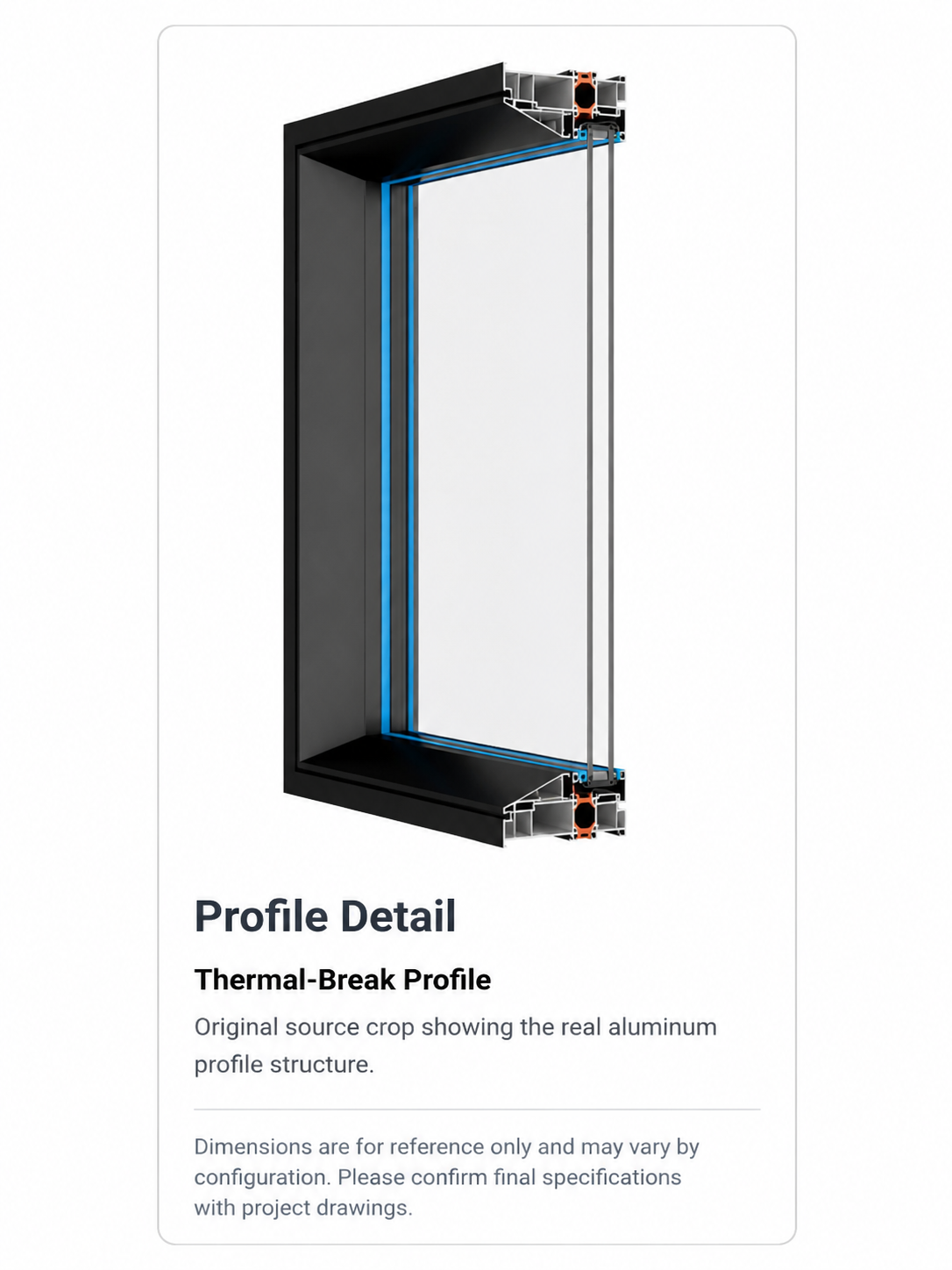

Thermal-Break Profile
Improved insulation and structural performance.
Multi-Point Locking
Secure and smooth locking system.

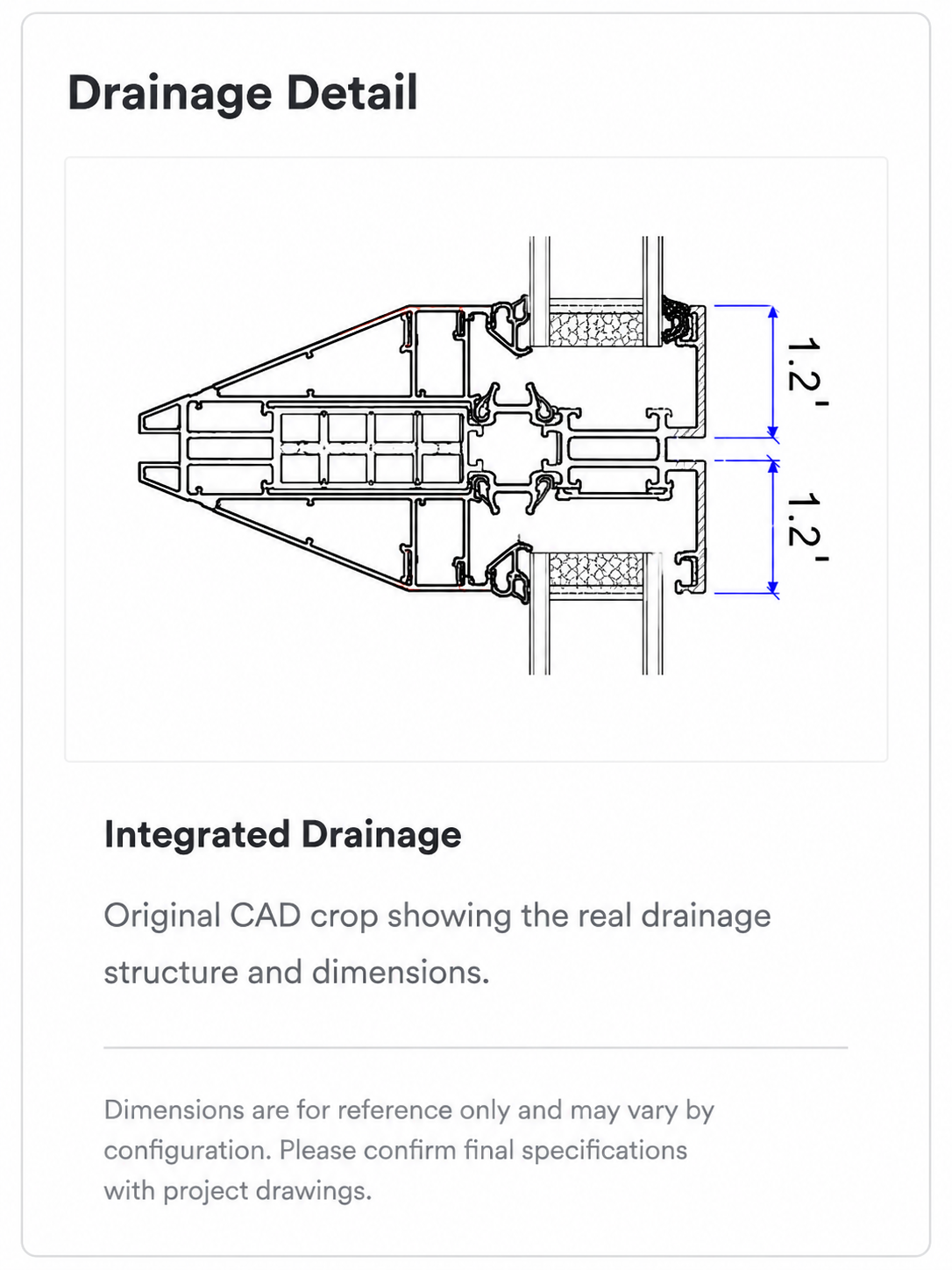

Drainage Design
Integrated drainage for weather resistance.
EPDM Sealing
Durable gasket system for air and water tightness.
Narrow Sightline
Clean visual profile for modern projects.
Custom Glass Options
Low-E, laminated and acoustic glass options.
Related Projects

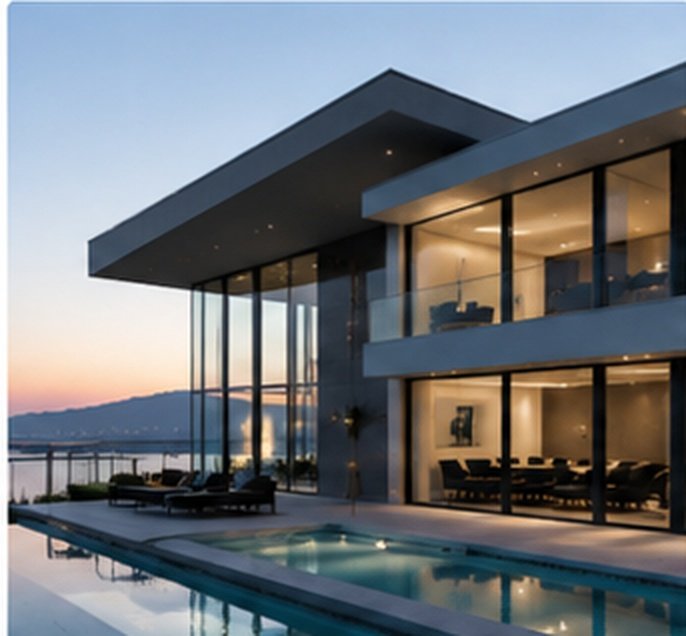

Coastal Villa Fixed Window Project
Panoramic fixed windows bring abundant natural light and unobstructed ocean views, enhancing the modern coastal living experience.

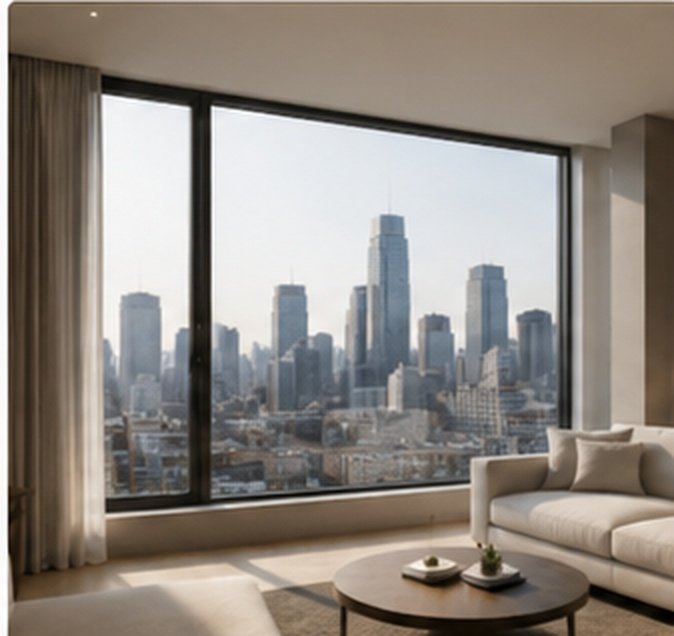

City Apartment Fixed Window Project
Slim fixed windows maximize daylight and city views while delivering excellent thermal performance and sound insulation.

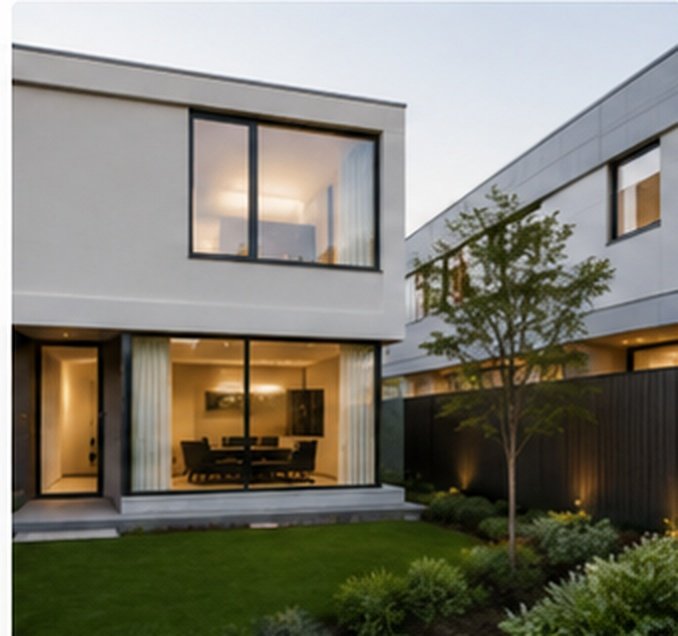

Modern Residential Fixed Window Project
Large fixed windows create bright and open living spaces, perfectly connecting indoor comfort with outdoor nature.

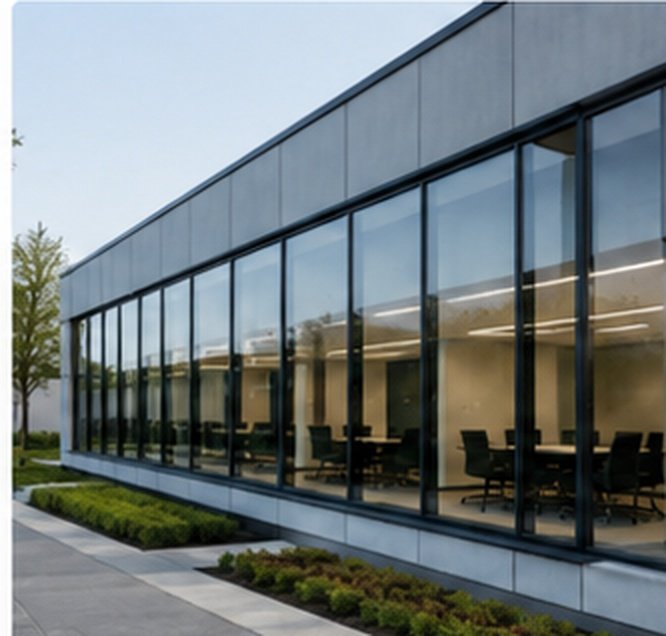

Wellington Outdoor Pavilion Project
Fixed windows provide a sleek and professional look while ensuring energy efficiency and a comfortable working environment.
Performance Parameters
| Thermal Performance |
U-Factor: 0.24–0.47 SHGC: 0.21–0.25 VT: 0.36–0.46 |
|---|---|
| Air & Water Performance |
Air Leakage Test Pressure: ±75 Pa Water Penetration Resistance: 720 Pa |
| Structural Performance |
Design Pressure (DP): 3840 Pa Structural Test Pressure (STP): 5760 Pa |
| Security Performance | Forced-Entry Resistance: Grade 10 |
