75 SERIES THERMAL BREAK CASEMENT WINDOW
Certified product solutions for residential, commercial, and project-based applications.
Certified Performance
Project Applications
Technical Support
Product Overview
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
| Series | 75 SERIES THERMAL BREAK CASEMENT WINDOW |
| Product Type | Thermal Break Casement window System |
| Frame Material | Thermal-break aluminum profile |

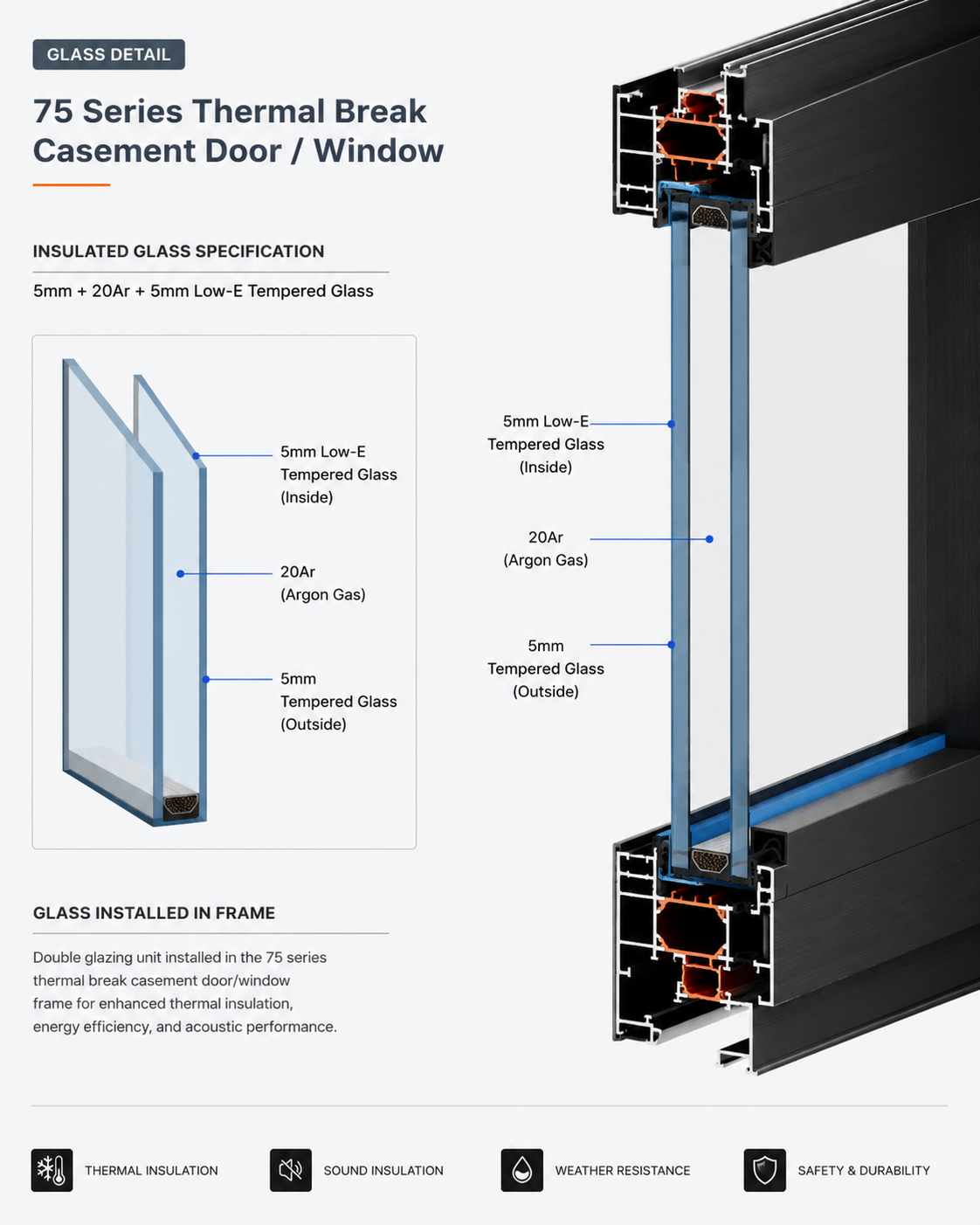

| Glass Options | 5mm + 20Ar + 5mm Low-E Tempered Glass |
| Certification | AAMA / NAMI / NAFS / CSA / NFRC / Title 24 |
| Opening Type | Casement Opening |
| Application | Residential, commercial, project supply |
Certificates
CSA＆AAMA Certification
Certified Windows & Doors for Global Projects

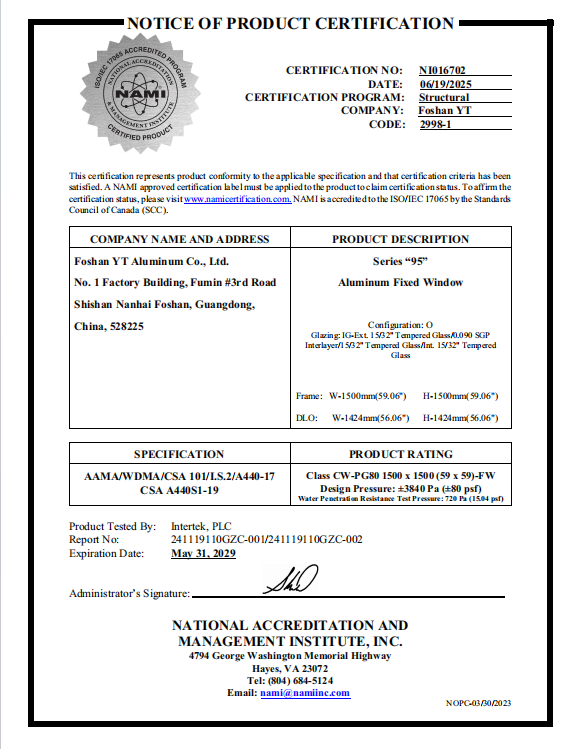

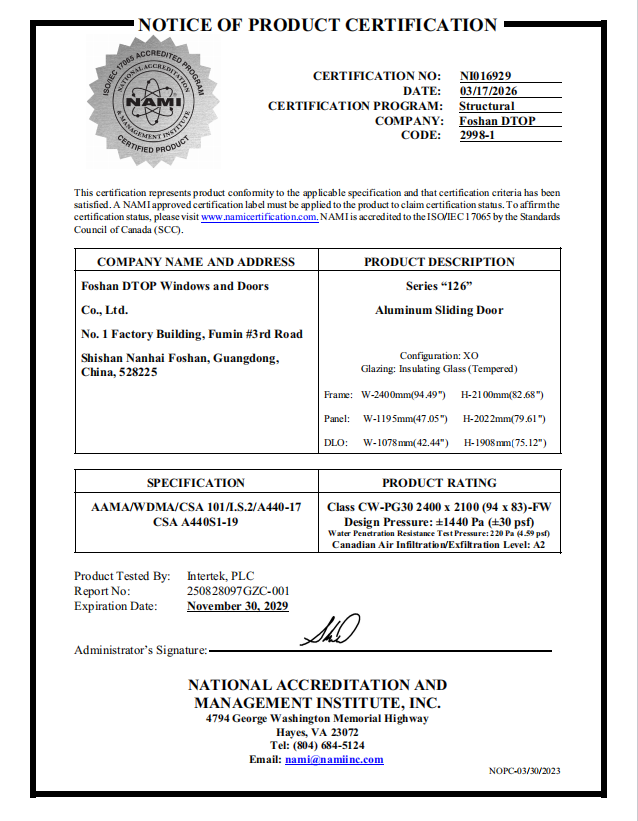

NAMI Structural Certification

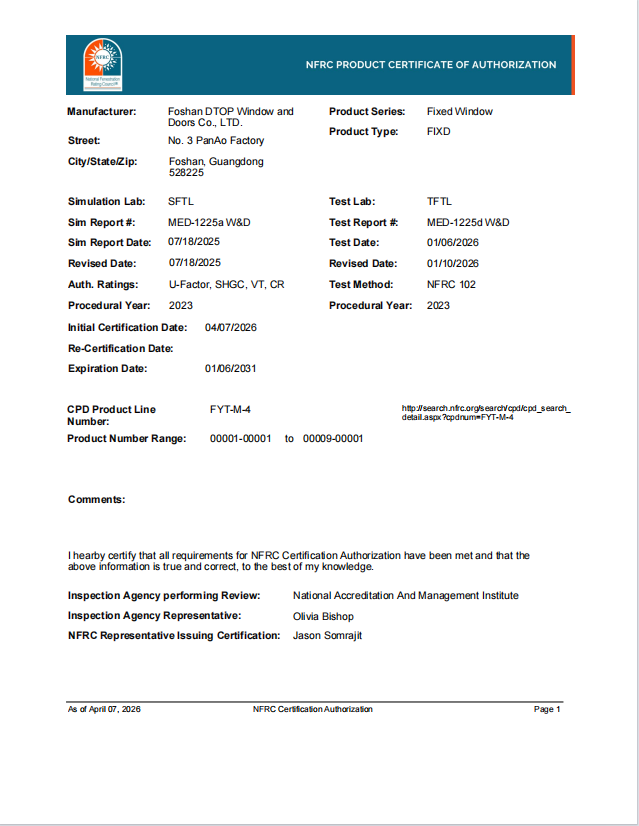

NFRC Certification

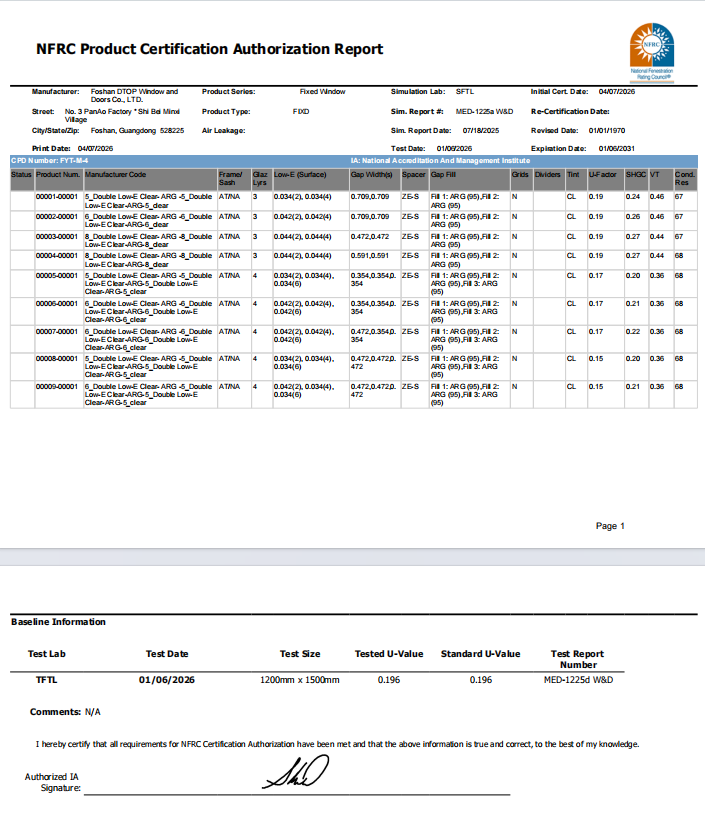

NFRC Product Test Report
Installation Video
Main Installation Guide
Certified system installation process overview.
Waterproofing Details
Key sealing and flashing steps.
Hardware Adjustment
Hardware and sash adjustment guide.
On-site Testing
Project testing and final inspection.
Download Center
Product Manual
PDF · 2.4 MB
Installation Guide
PDF · 3.1 MB
NAMI Structured Certificate
PDF · 15.5 MB
Test Report
PDF · 1.2 MB
Product Details / Features

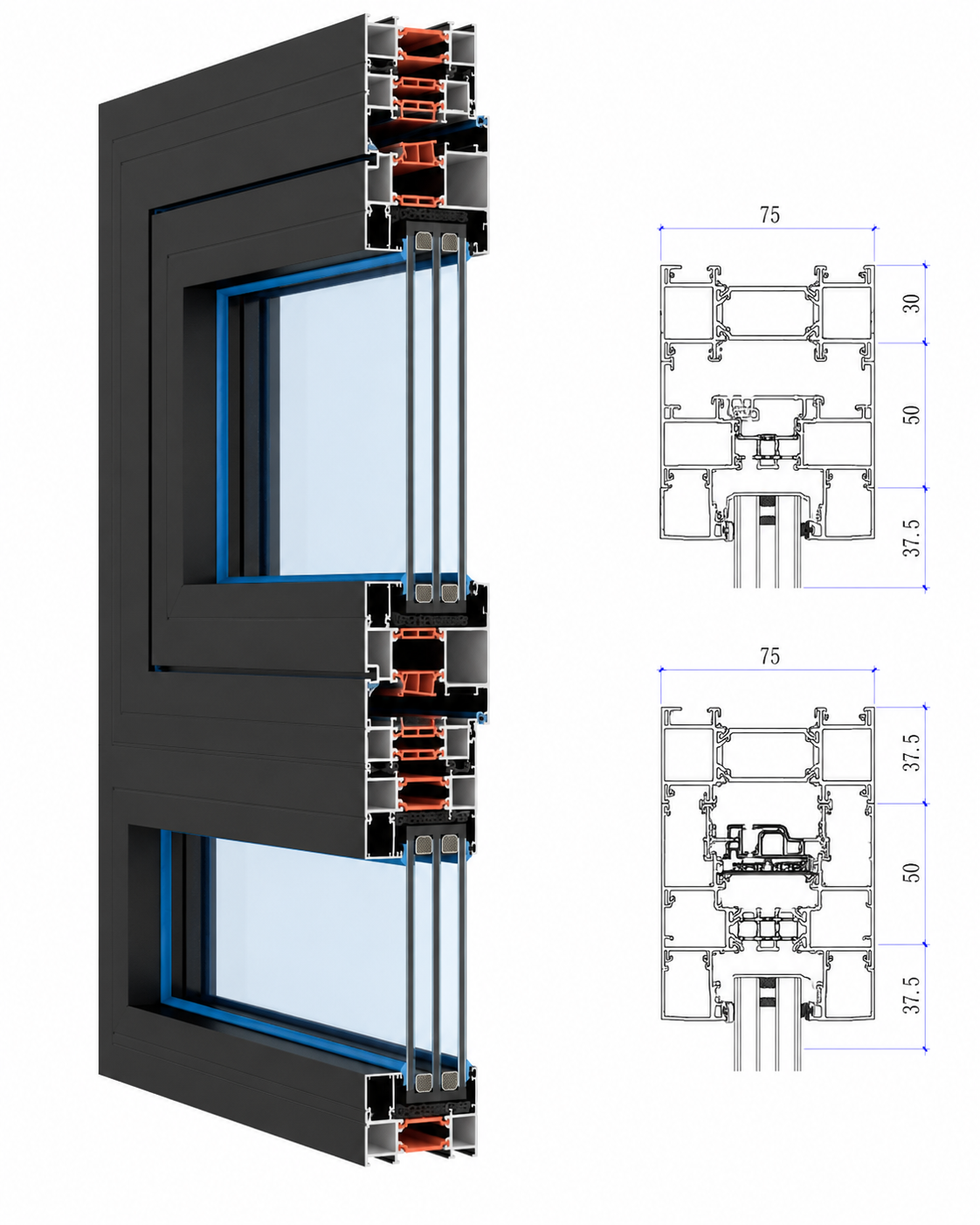

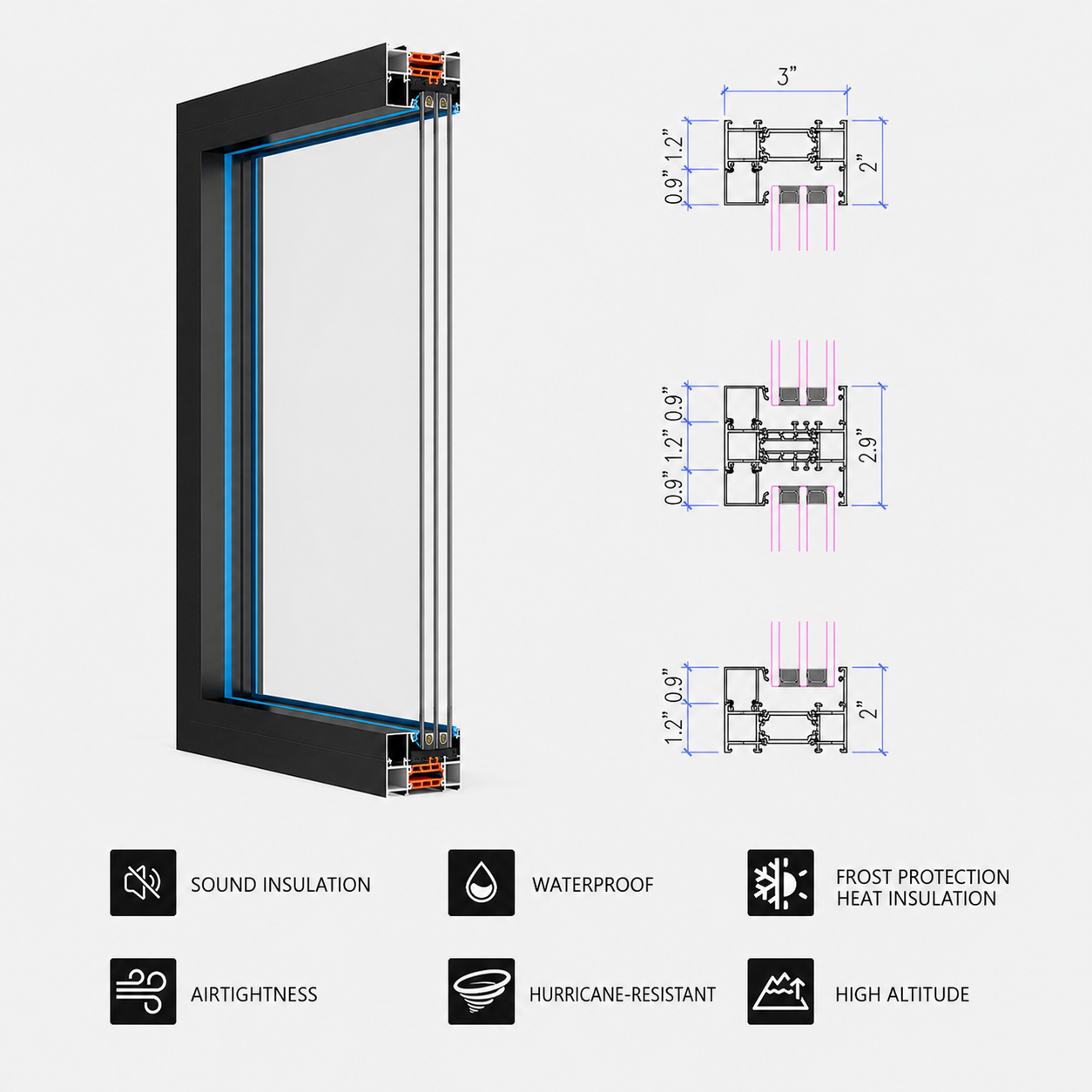

Thermal-Break Profile
Improved insulation and structural performance.

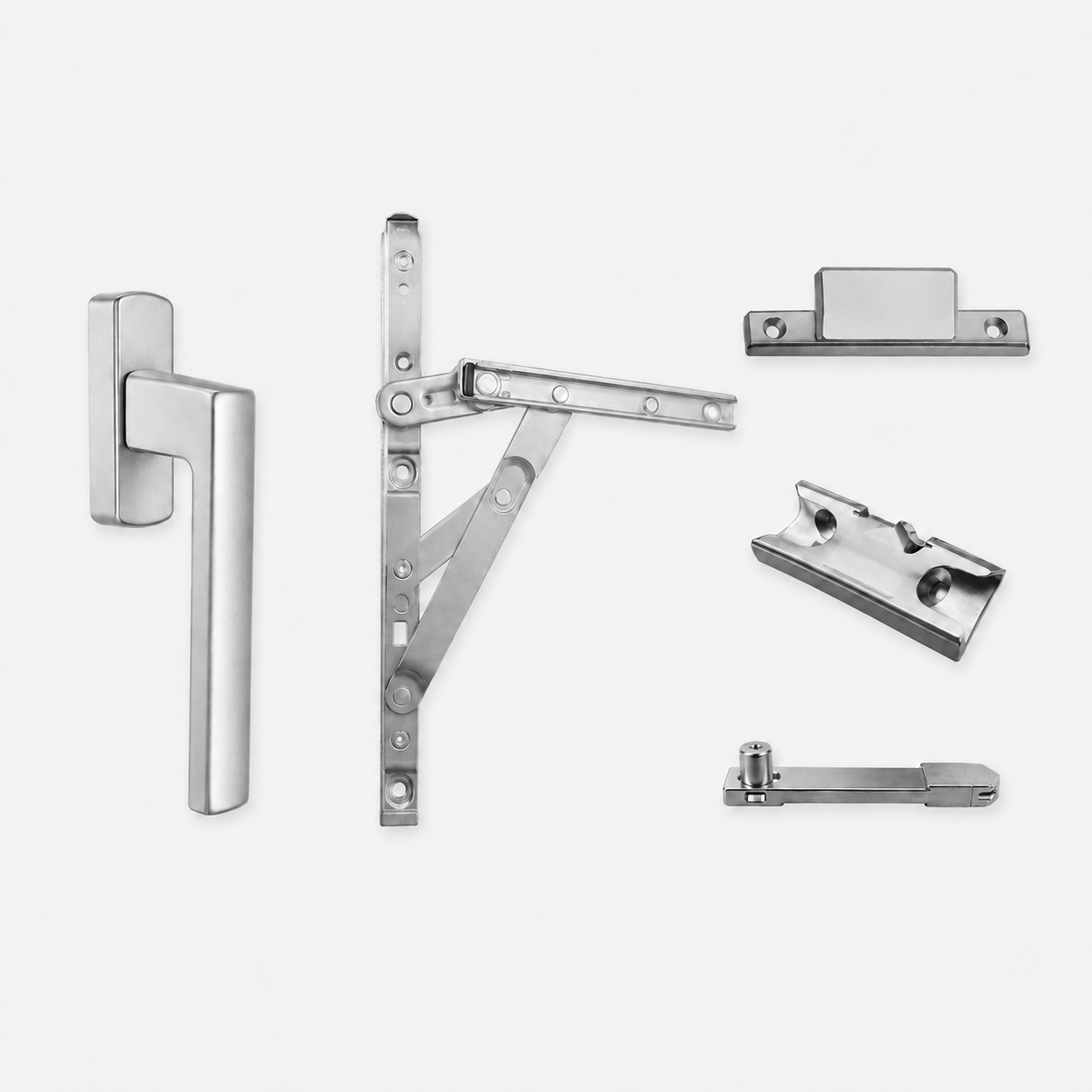

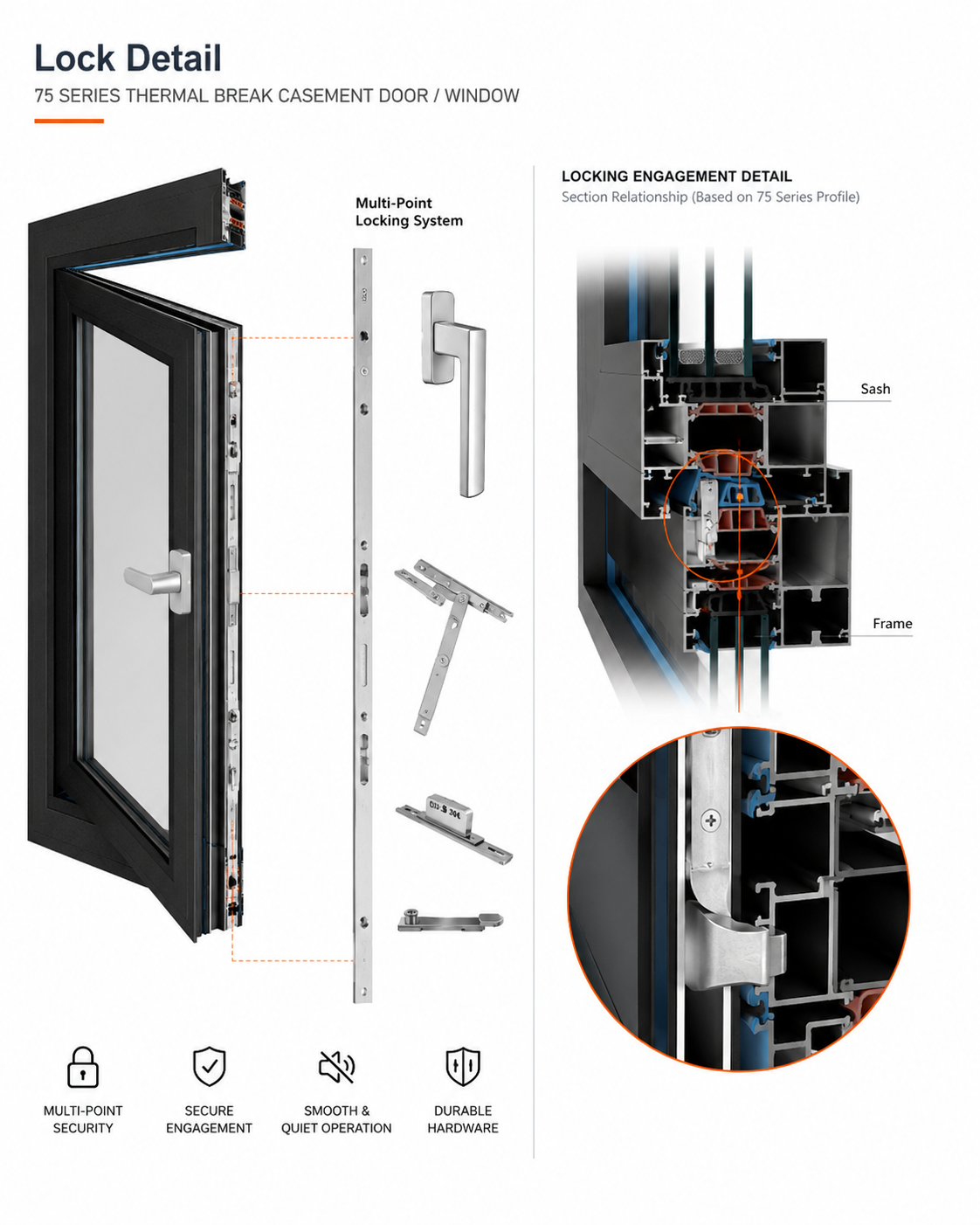

Multi-Point Locking
Secure and smooth locking system.

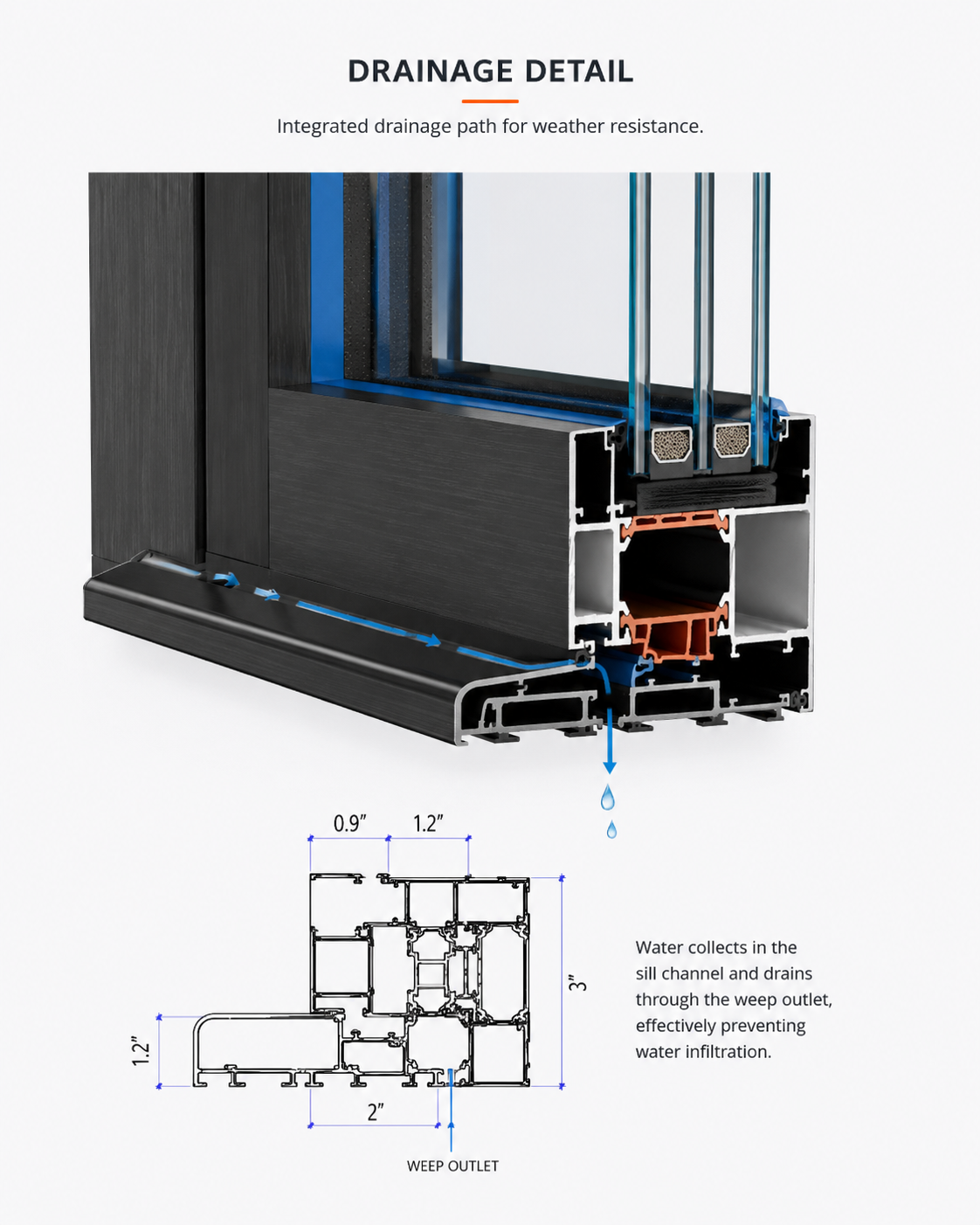

Drainage Design
Integrated drainage for weather resistance.

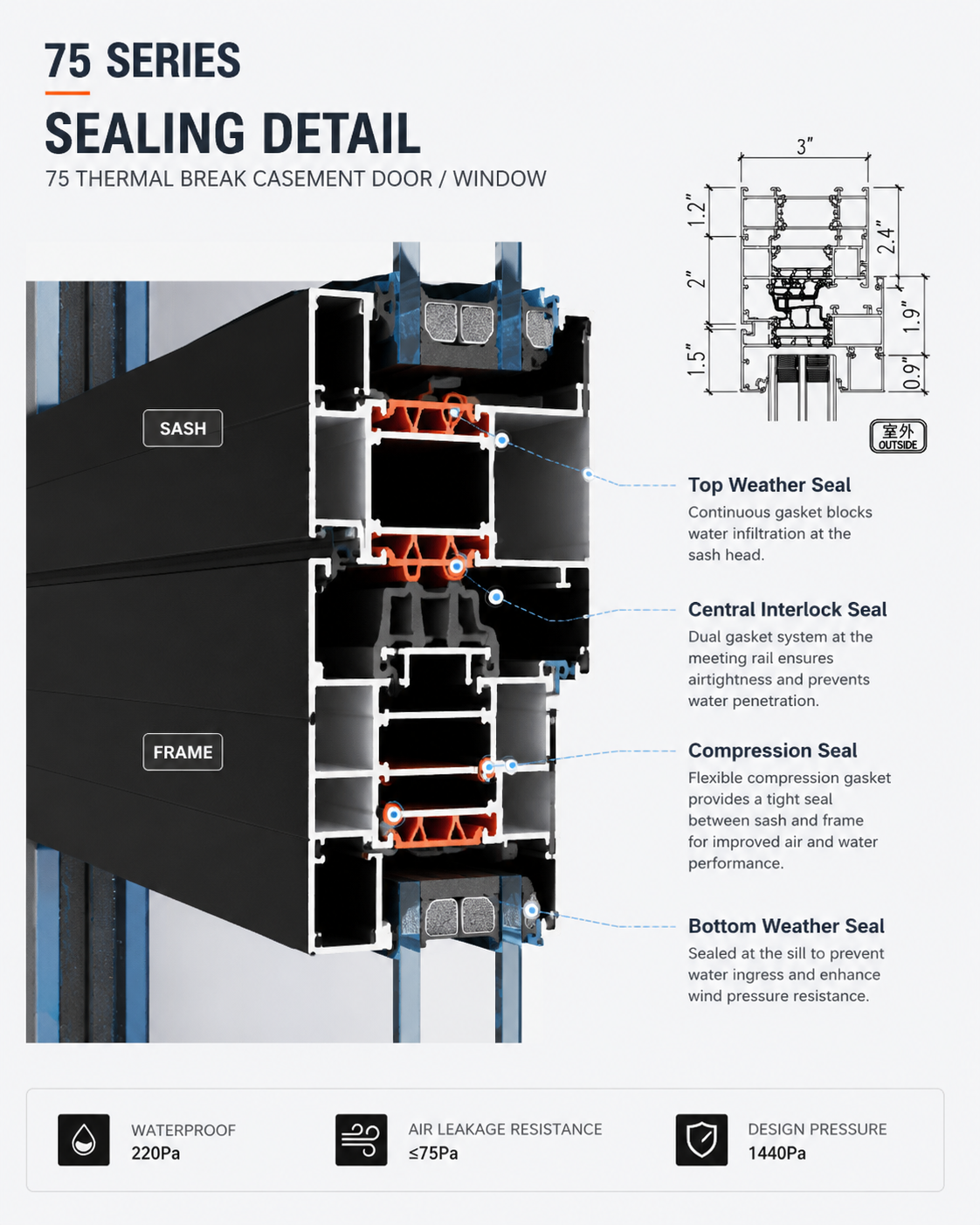

EPDM Sealing
Durable gasket system for air and water tightness.

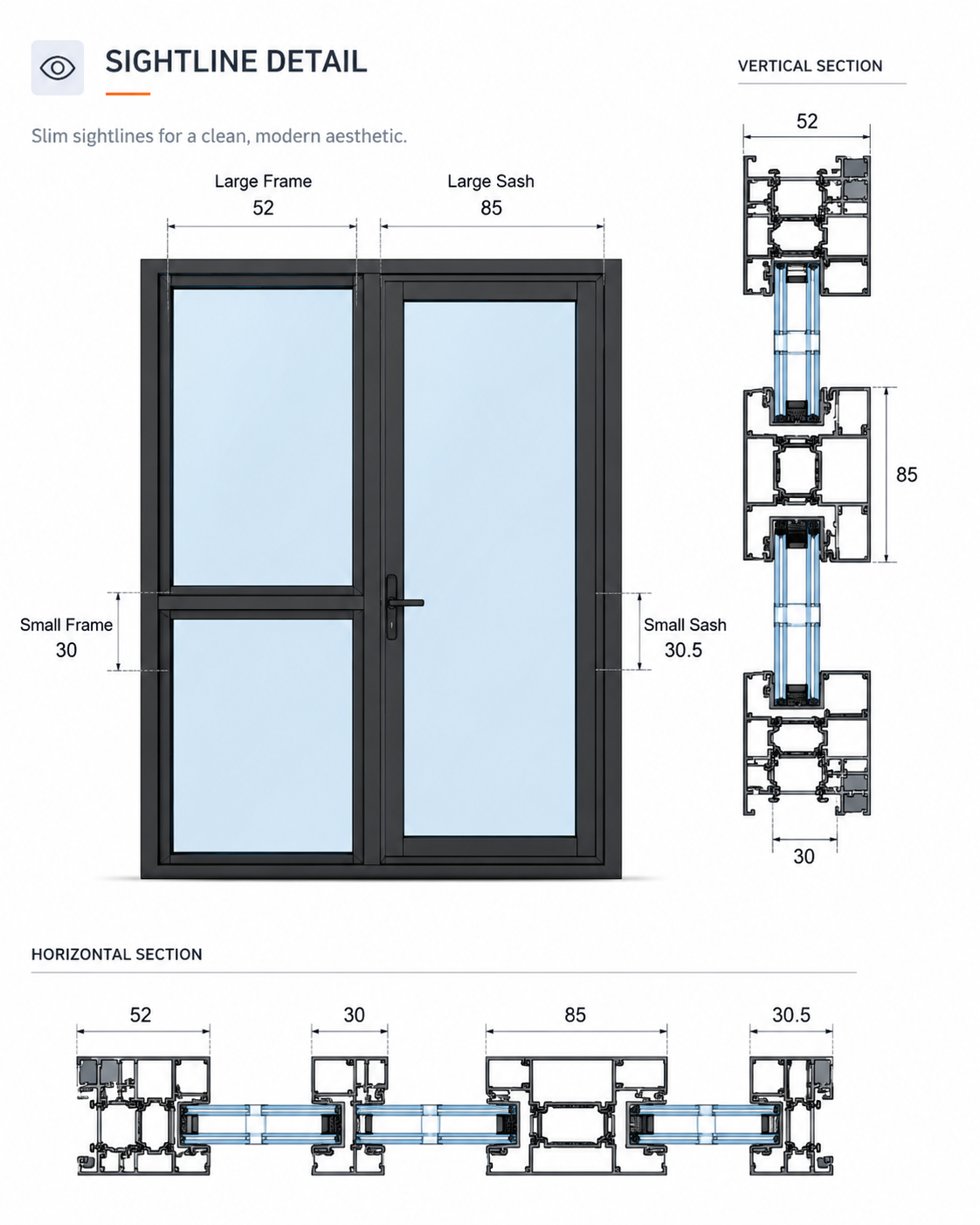

Narrow Sightline
Clean visual profile for modern projects.
Custom Glass Options
Low-E, laminated and acoustic glass options.
Related Projects
Miami Bayfront Resort Hotel Project
Hotel | 2024
Miami, Florida, USA
Impact-resistant aluminum windows, sliding doors, and curtain wall systems designed for coastal weather, panoramic ocean views, and long-term guest comfort.
Arkansas High-End Residential Window & Door Project
Public Building | 2021
Arkansas, USA
A high-end single-family residential window and door upgrade project in Hot Springs
Wellington Outdoor Pavilion Project
Apartment | 2023
Wellington, New Zealand
Located in Wellington, New Zealand, this project creates a modern outdoor pavilion around the pool and courtyard area.It focuses on shading, openness, and leisure ambience.
Barbados Commercial Office Building Glass Railing Project
Commercial Office | 2022
Christ Church Business District, Barbados
A contemporary glass curtain wall system enhances natural light, exterior transparency.
Performance Parameters
| Test Item | Standard | Result |
|---|---|---|
| U-Factor | ANSI/NFRC 100 | 0.20–0.24 |
| Solar Heat Gain Coefficient (SHGC) | ANSI/NFRC 200 | 0.20–0.27 |
| Visible Transmittance (VT) | ANSI/NFRC 200 | 0.36–0.46 |
| Air Leakage Resistance | ANSI/NFRC 400 | 1.5 L/s·m² @ ±75 Pa |
| Water Penetration Resistance | AAMA/WDMA/CSA 101/I.S.2/A440 (NAFS) | 220 Pa |
| Design Pressure (DP) | AAMA/WDMA/CSA 101/I.S.2/A440 (NAFS) | 1440 Pa |
| Structural Test Pressure (STP) | AAMA/WDMA/CSA 101/I.S.2/A440 (NAFS) | 2160 Pa |
| Forced-Entry Resistance | NAFS / ASTM F588 | Grade 10 |
