Certified Product
75 Casement Door
Certified product solutions for residential, commercial, and project-based applications.
Certified Performance
Project Applications
Technical Support
Product Overview
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge

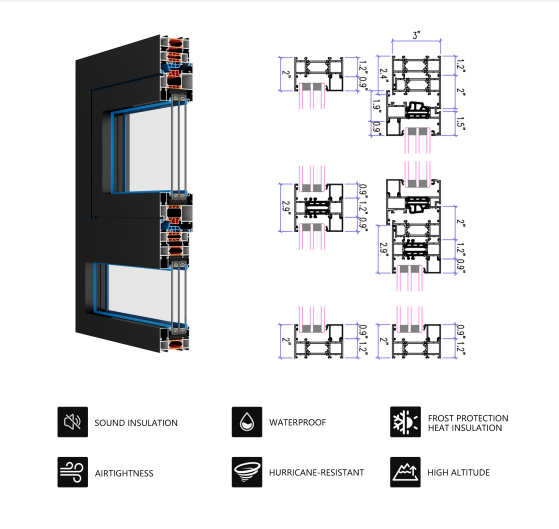

| Series | 75 Series Thermal Break Casement Door / Window |
| Product Type | Aluminum Casement Door and Window System |
| Frame Material | 1.8 mm Thermal-Break Aluminum Profile |
| Frame Depth | 75 mm |
| Standard Glass | 5 mm + 20Ar + 5 mm Low-E Tempered Insulating Glass |

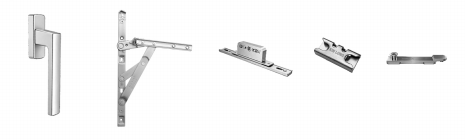

| Hardware Options | Kinlong, Baogao and German Roto Hardware |
| Thermal Performance | U-Factor: 0.20–0.24; SHGC: 0.20–0.27; VT: 0.36–0.46 |
| Structural Performance | DP: 1440 Pa; STP: 2160 Pa; Water Resistance: 220 Pa |
| Air & Security | Air Leakage: 1.5 at ±75 Pa; Forced Entry: Grade 10 |
| Options | White or Black; Roller or Folding Screen; Built-In Louvers; T-Fin or L-Fin |
Certificates
AAMA Certification
NFRC Certification
California Title 24 Compliance
CSA Certification
NAFS Compliance
Installation Video
Main Installation Guide
Certified system installation process overview.
Waterproofing Details
Key sealing and flashing steps.
Hardware Adjustment
Hardware and sash adjustment guide.
On-site Testing
Project testing and final inspection.
Download Center
Product Manual
PDF · 2.4 MB
Installation Guide
PDF · 3.1 MB
CSA ＆ AAMA Certification
PDF · 1.8 MB
Test Report
PDF · 1.2 MB
Product Details / Features

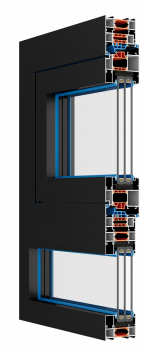

Thermal-Break Profile
Improved insulation and structural performance.
Multi-Point Locking
Secure and smooth locking system.
Drainage Design
Integrated drainage for weather resistance.
EPDM Sealing
Durable gasket system for air and water tightness.
Narrow Sightline
Clean visual profile for modern projects.
Custom Glass Options
Low-E, laminated and acoustic glass options.
Related Projects

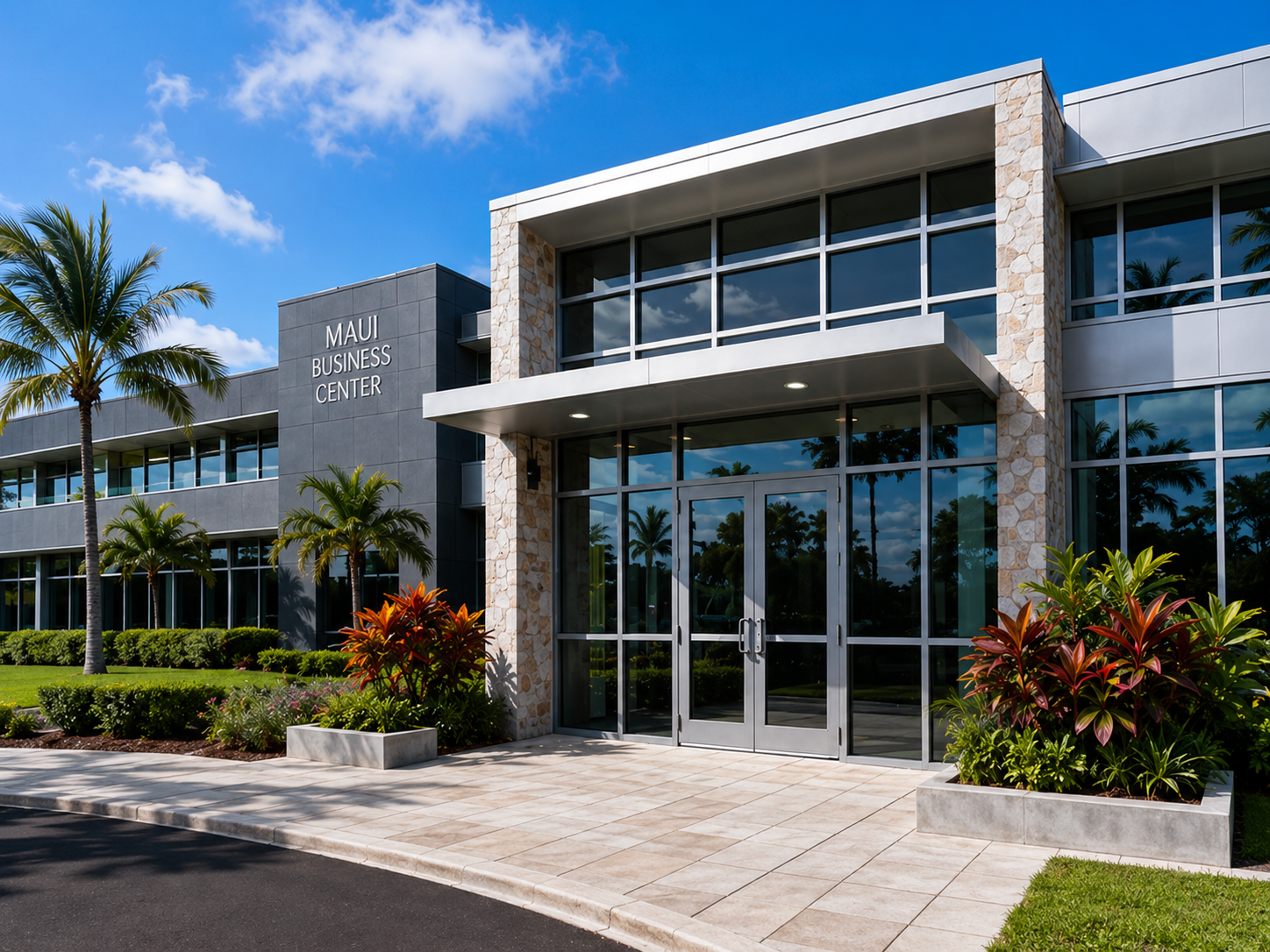

Maui Commercial Office Aluminum Door Project
Commercial Office | 2022
Kahului, Maui, Hawaii, USA
A modern aluminum-and-glass entrance system improves daylight, accessibility, and the overall appearance of the office building.
Vancouver Waterfront Boutique Hotel Project
Hotel | 2023
Vancouver, British Columbia, Canada
Thermal-break window and balcony door systems improve insulation, acoustic comfort, and waterfront views while complementing the hotel’s modern facade.
Dallas High-End Residential Window & Door Project
Public Building | 2025
North Richardson, Dallas, USA
A high-end townhouse window and door upgrade project that enhances natural daylight, improves comfort and exterior quality
San Juan Modern Residential Window & Door Project
Apartment | 2024
San Juan, Puerto Rico
Located in a residential neighborhood in San Juan, this project features a clean modern facade paired with an aluminum window
Performance Parameters
| Performance Item | Result |
|---|---|
| U-Factor | 0.20–0.24 |
| Solar Heat Gain Coefficient (SHGC) | 0.20–0.27 |
| Visible Transmittance (VT) | 0.36–0.46 |
| Air Leakage Resistance | 1.5 at ±75 Pa |
| Water Penetration Resistance | 220 Pa |
| Design Pressure (DP) | 1440 Pa |
| Structural Test Pressure (STP) | 2160 Pa |
| Forced-Entry Resistance | Grade 10 |
