100 Series Hand-Crank Operated Tilt-and-Turn Window
Certified product solutions for residential, commercial, and project-based applications.
Certified Performance
Project Applications
Technical Support
Product Overview
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
| Series | 100 Series |
| Product Type | Hand-Cranked Out-Swing Top-Hung Window |
| Frame Profile Width | 100 mm |
| Wall Thickness | 1.8 mm |
| Glass Configuration | 5 + 20A + 5 |
| Opening Type | Hand-Cranked Out-Swing |
| Single Leaf Load Limit | 150 kg |
| Max Single Sash Width | 1000 mm |
| Max Single Sash Height | 2500 mm |
Certificates
AS2047 Certificate
NFRC Certification
NAFS Test Report
Energy Star
ISO 9001
Installation Video
Main Installation Guide
Certified system installation process overview.
Waterproofing Details
Key sealing and flashing steps.
Hardware Adjustment
Hardware and sash adjustment guide.
On-site Testing
Project testing and final inspection.
Download Center
Product Manual
PDF · 2.4 MB
Installation Guide
PDF · 3.1 MB
CAD & BIM Files
PDF · 15.5 MB
Test Report
PDF · 1.2 MB
Product Details / Features

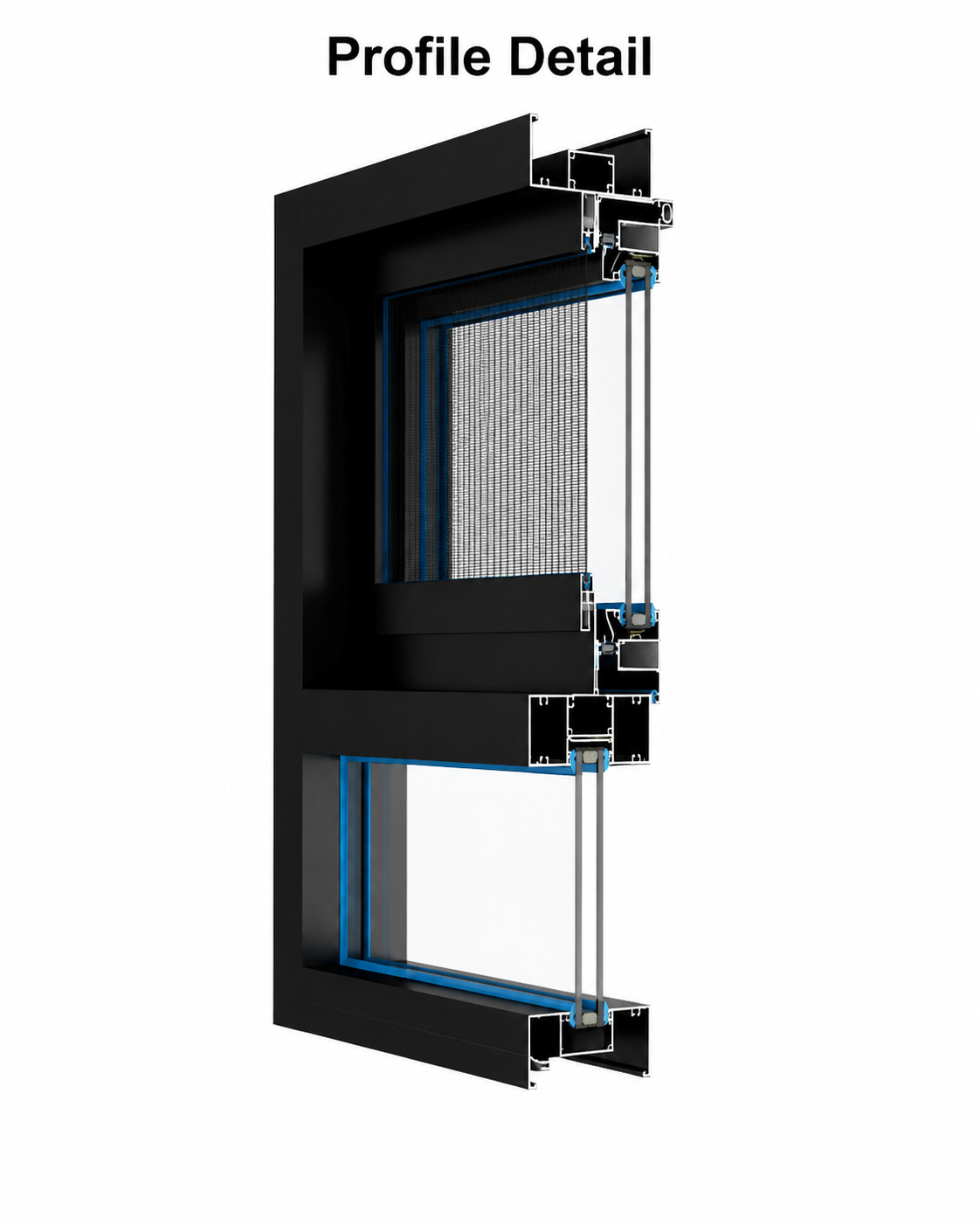

Thermal-Break Profile
Improved insulation and structural performance.
Multi-Point Locking
Secure and smooth locking system.
Drainage Design
Integrated drainage for weather resistance.
EPDM Sealing
Durable gasket system for air and water tightness.
Narrow Sightline
Clean visual profile for modern projects.
Custom Glass Options
Low-E, laminated and acoustic glass options.
Related Projects
Performance Parameters
| Performance Item | Result |
|---|---|
| Sound Insulation | 35 dB |
| Wind Resistance | Grade 9 |
| Thermal Insulation | 0.77 W/(m²·K) |
| Airtightness | 700 Pa |
| Watertightness | q1 = 0.39 m³/(m·h); q2 = 0.75 m³/(m·h) |
