Certified Product

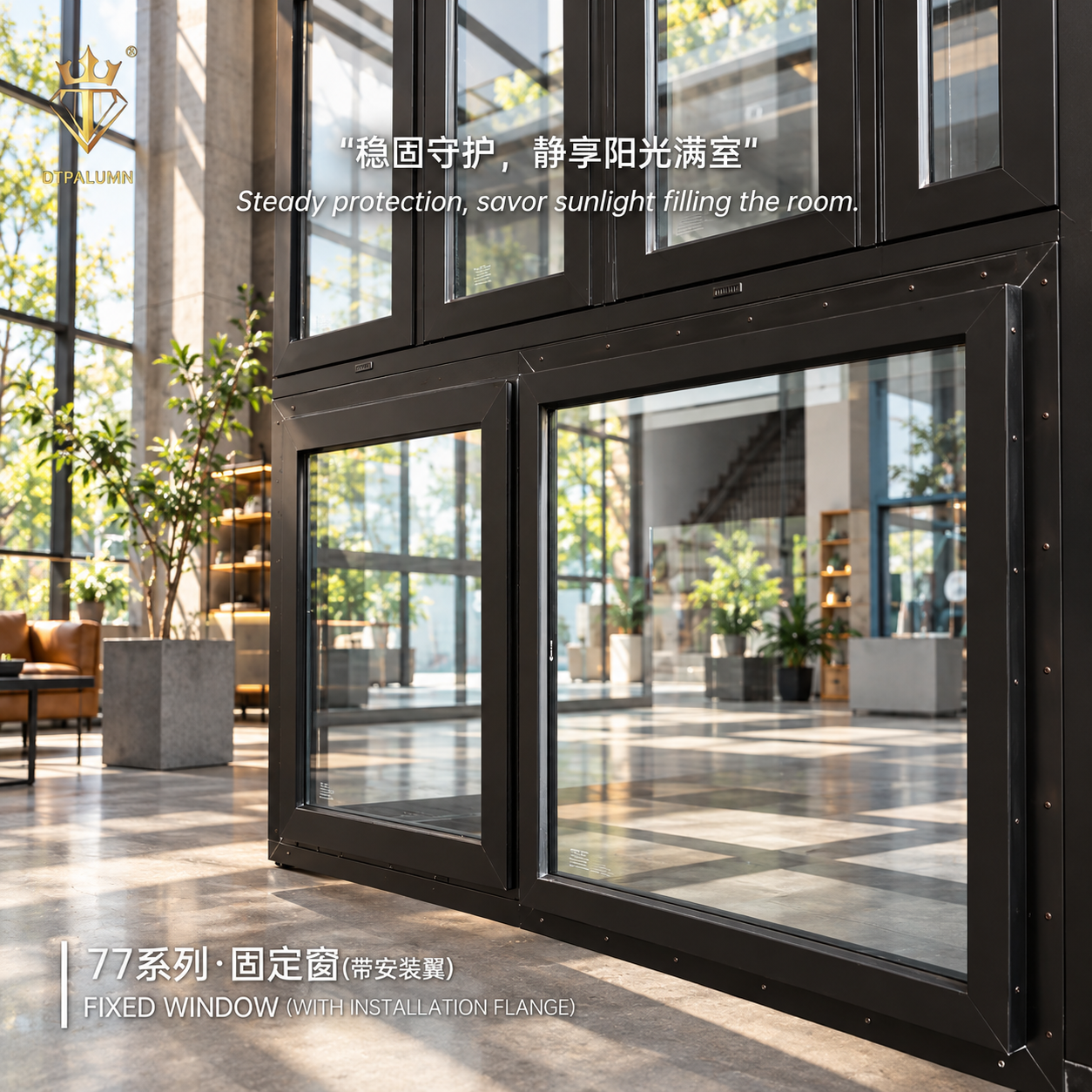

80-77 Fixed Window
Certified product solutions for residential, commercial, and project-based applications.
Certified Performance
Project Applications
Technical Support

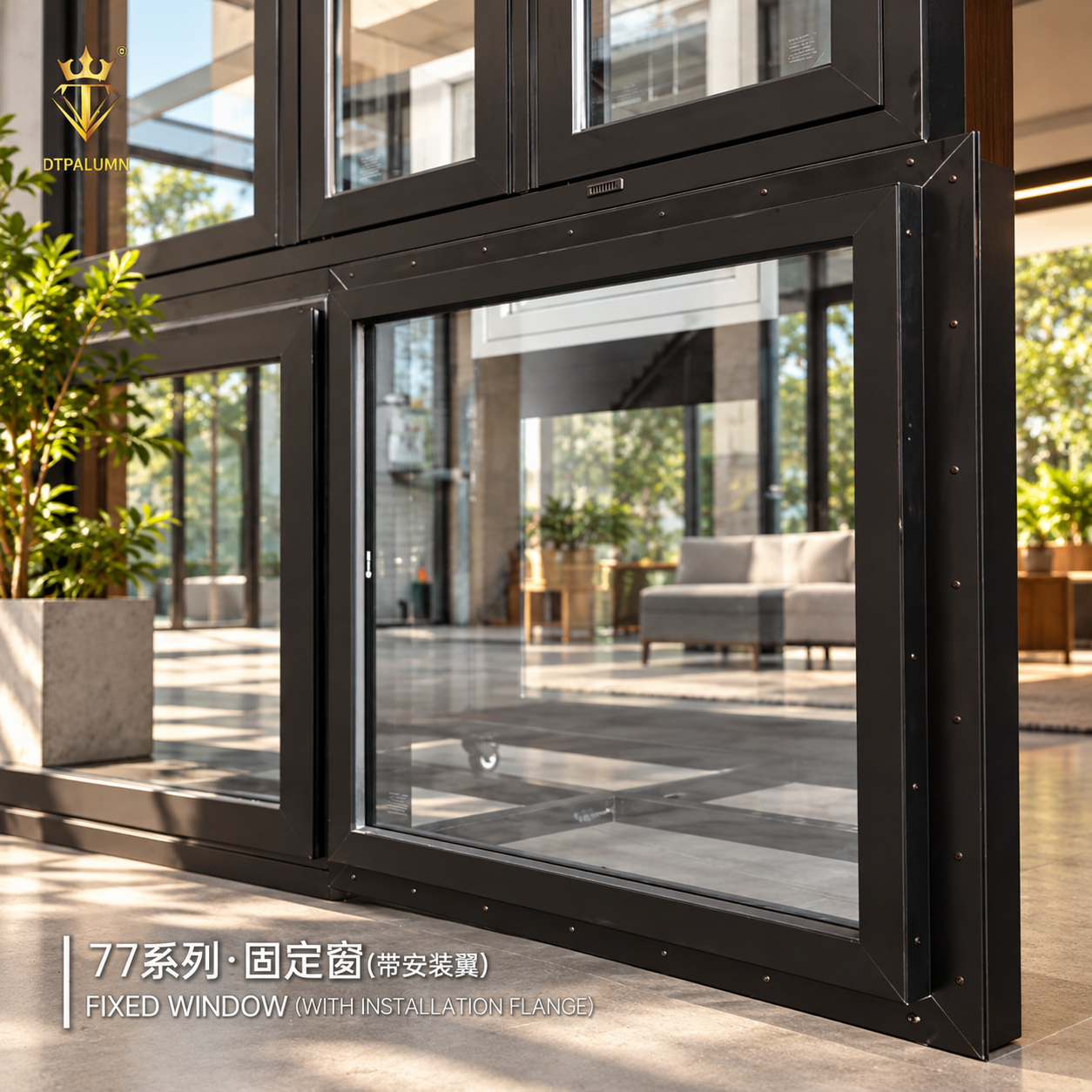

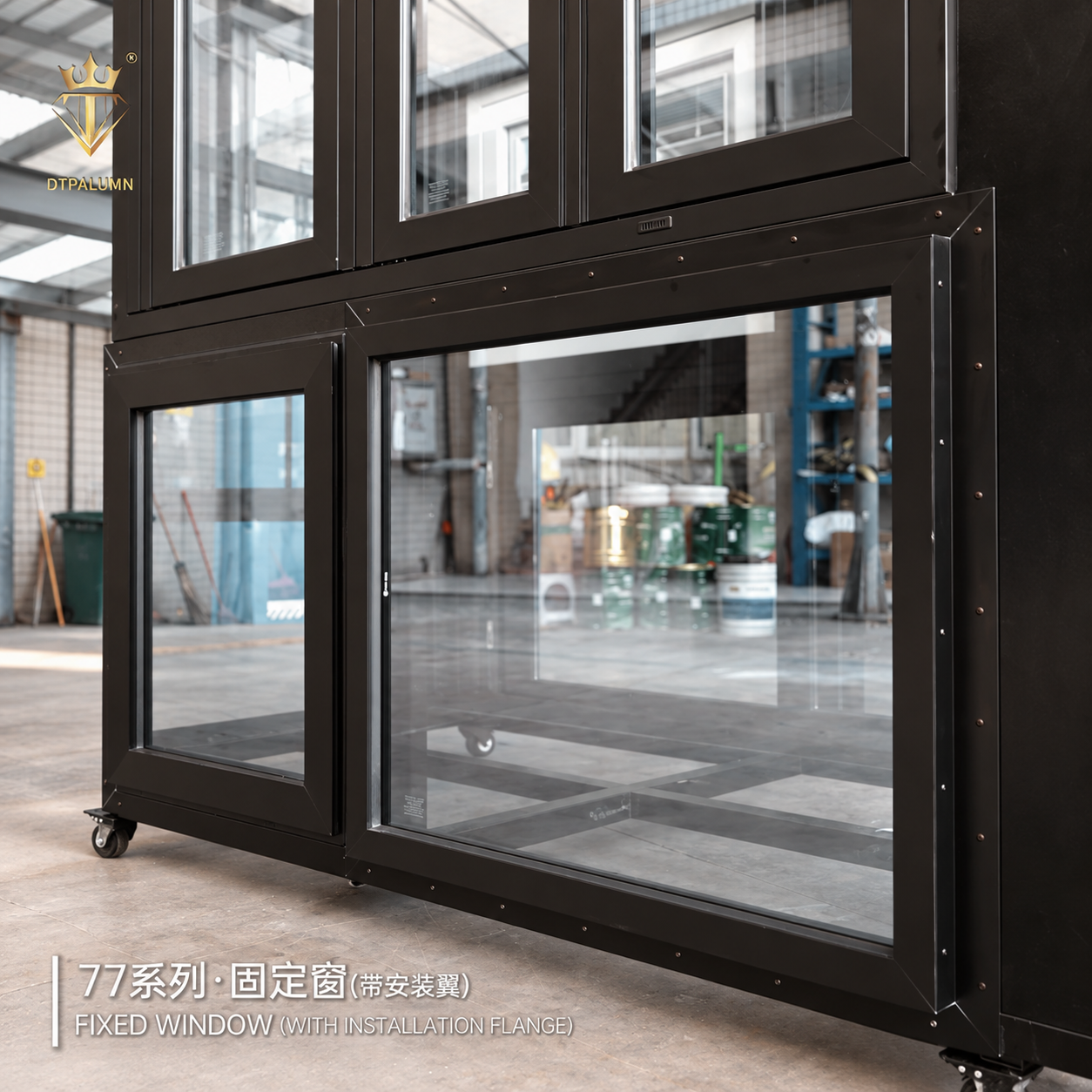

Product Overview
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Product Specifications
Features
HEAT INSULATION
Download Center
Nail Fin Installation Guide
PDF · 3.1 MB
CAD & BIM Files
PDF · 3.5 MB

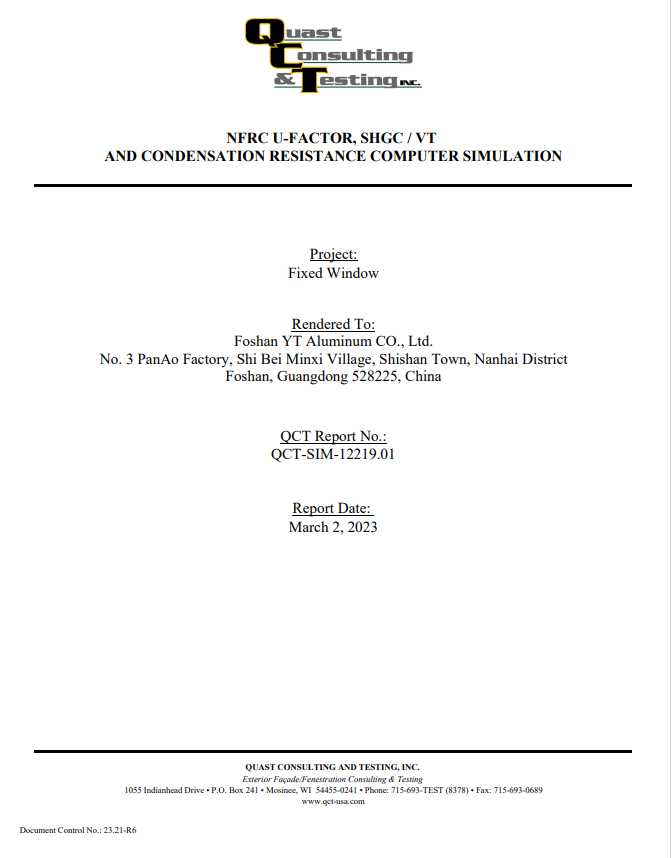

NFRC Certification
PDF · 2.4 MB
Test Report
PDF · 3.2 MB

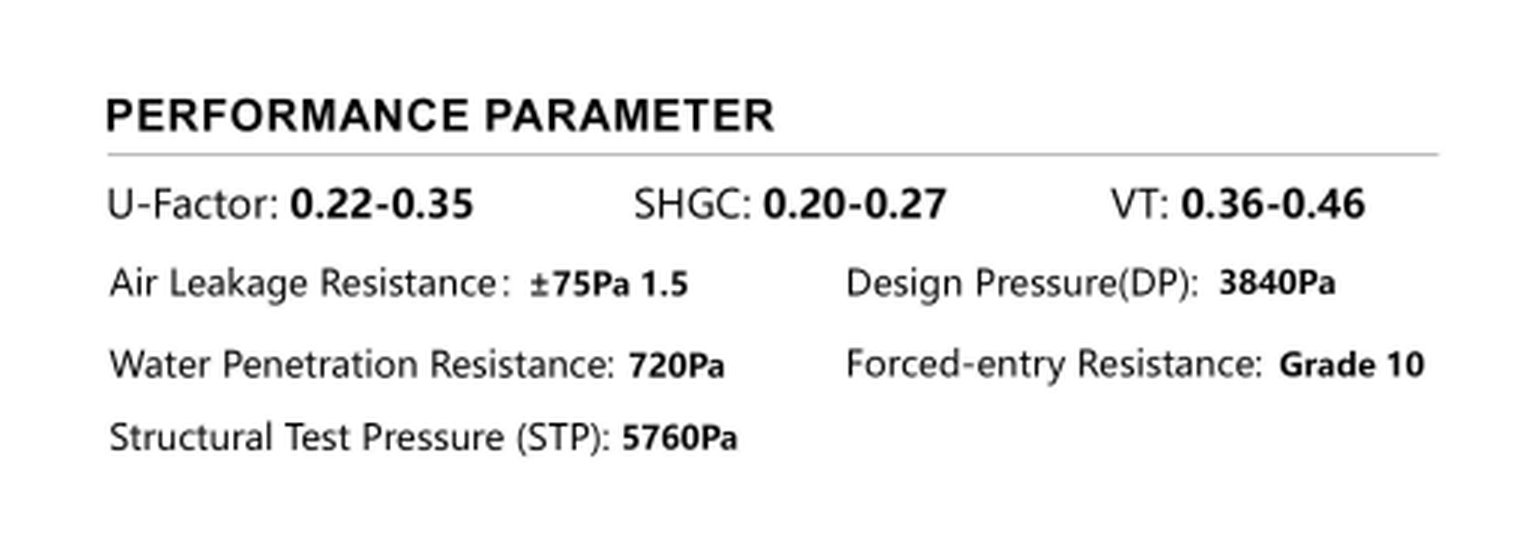

Performance Parameters
| Performance Item | Result |
|---|---|
| U-Factor | 0.22–0.35 |
| Solar Heat Gain Coefficient (SHGC) | 0.20–0.27 |
| Visible Transmittance (VT) | 0.36–0.46 |
| Air Leakage Resistance | 1.5 at ±75 Pa |
| Water Penetration Resistance | 720 Pa |
| Design Pressure (DP) | 3840 Pa |
| Structural Test Pressure (STP) | 5760 Pa |
| Forced-Entry Resistance | Grade 10 |
Certificates

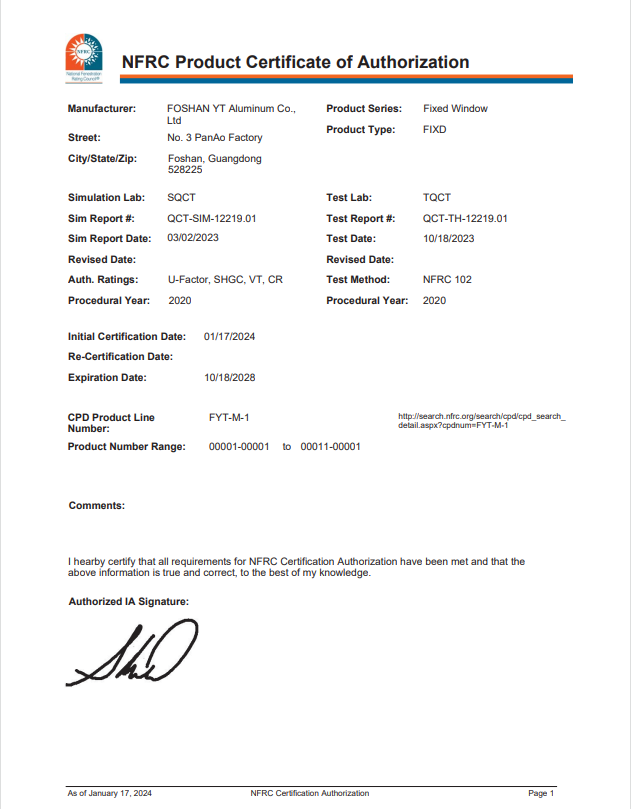

NFRC Certification
CPD Product Line Number: FYT-M-1

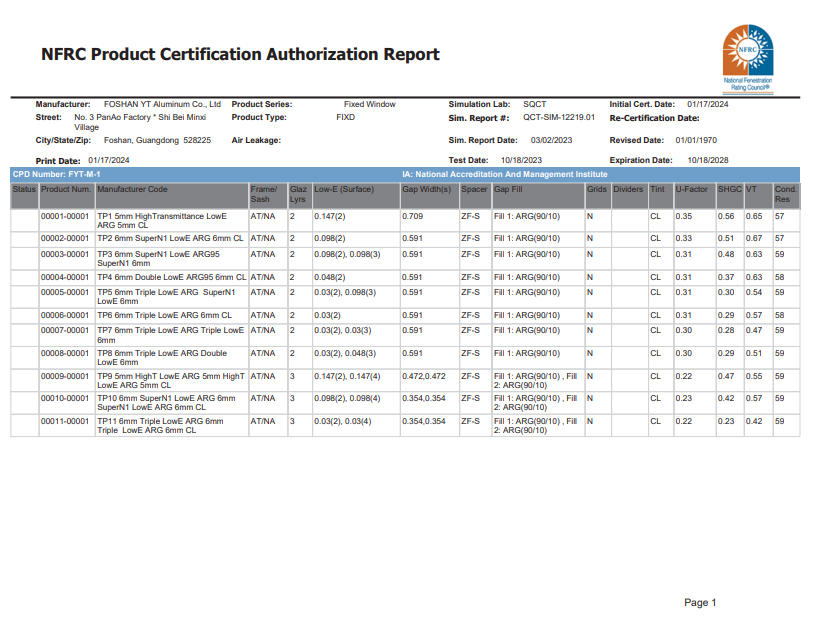

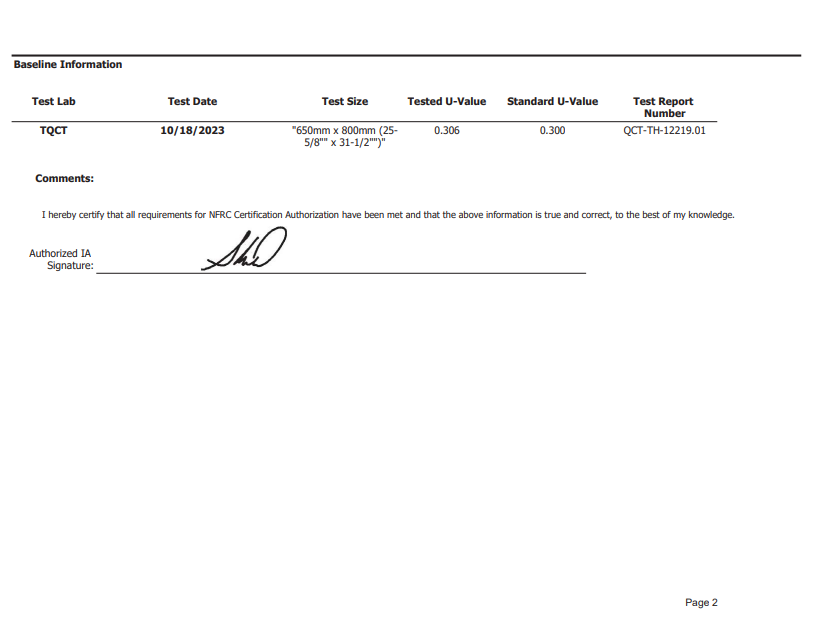

NFRC Certification Details
Document Control No.: 23.21-R6

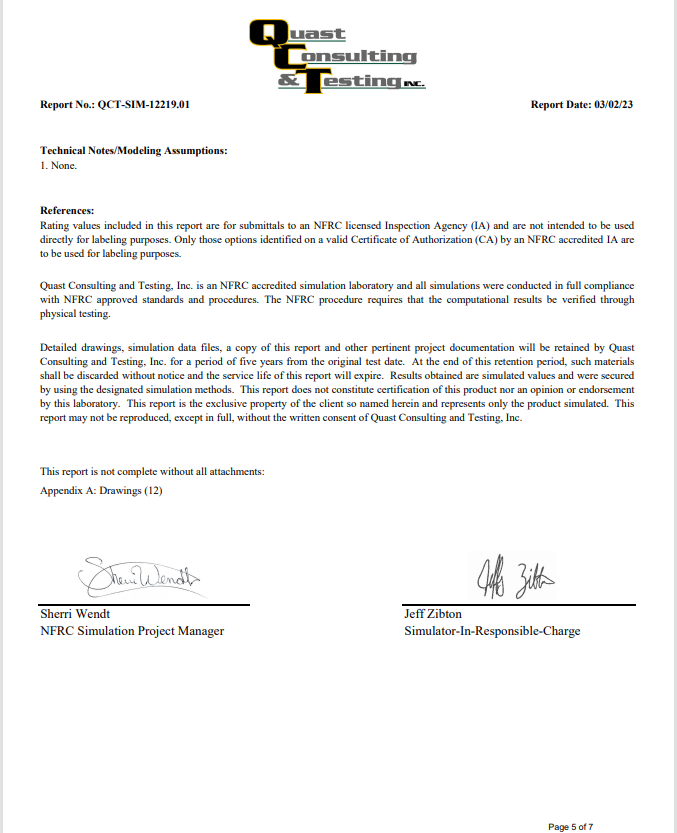

80 Fixed window Test Report
Installation Video
Main Installation Guide
Certified system installation process overview.
80 Series Combination Frame Installation
Installation guide for the 80 Series thermal break inward-opening window combination frame.
Hardware Adjustment
Hardware and sash adjustment guide.
On-site Testing
Project testing and final inspection.
Product Details / Features

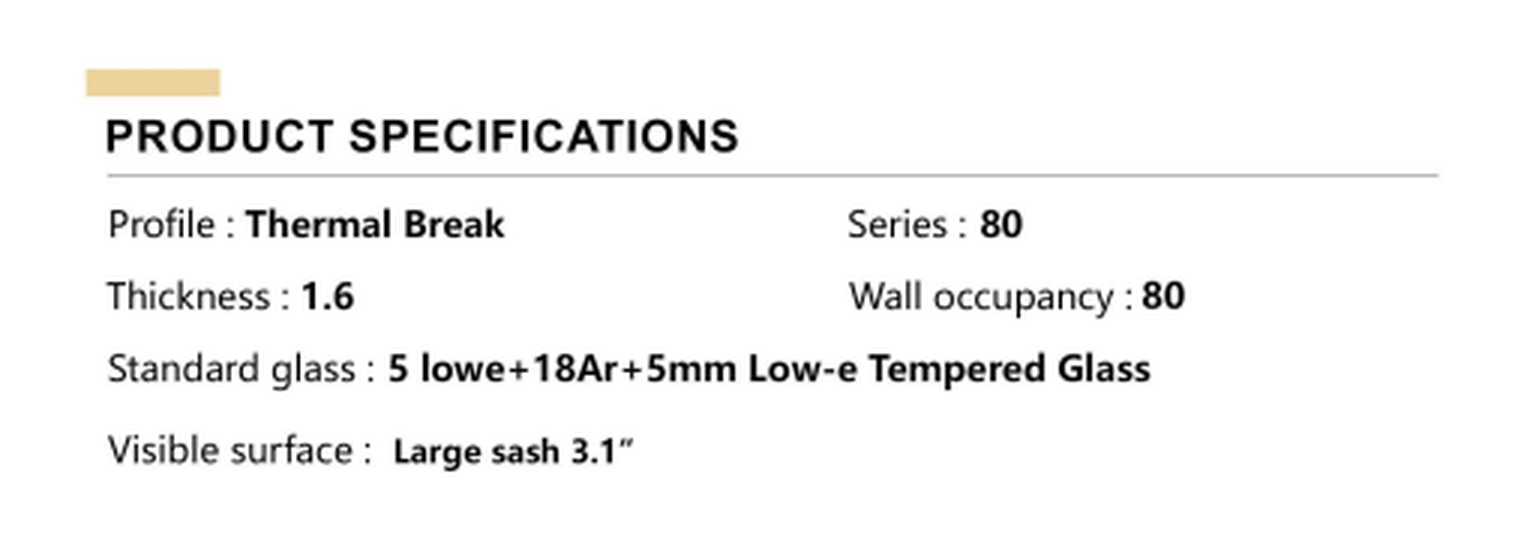

Product Specifications
80 Series thermal break fixed window with a 1.6 mm profile, 80 mm frame depth, Low-E insulated glass, and a 3.1” visible sash surface.
Performance Parameters
Tested performance covers thermal efficiency, solar control, air and water resistance, structural strength, and forced-entry resistance.

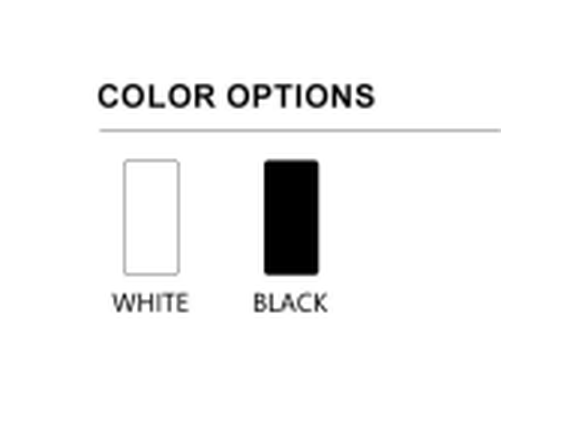

Color Options
Available standard color options: White and Black.

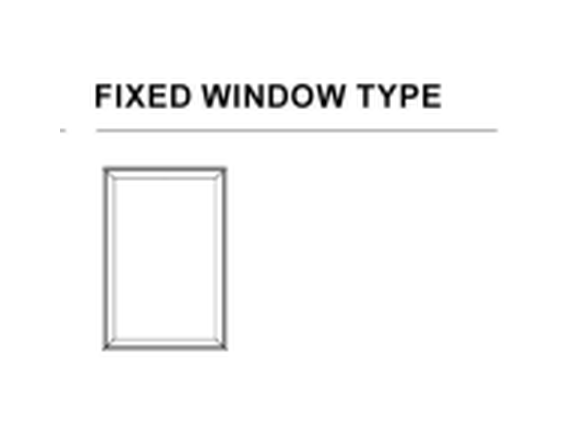

Fixed Window Type
Durable gasket system for air and water tightness.

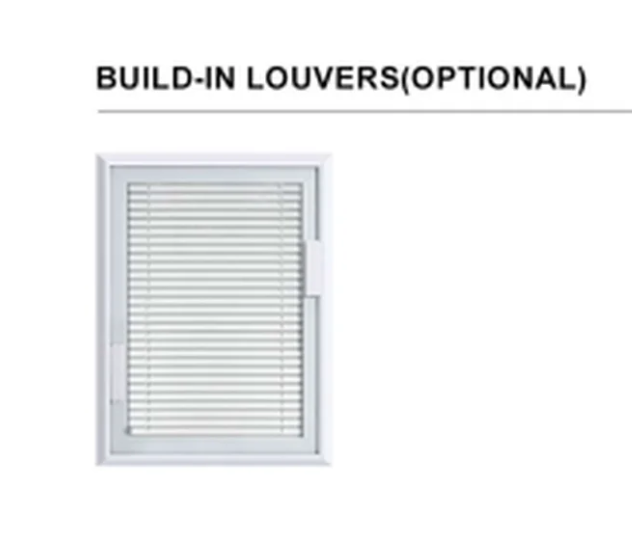

Built-in Louvers (Optional)
Optional built-in louver configuration available for the 80 Series fixed window.

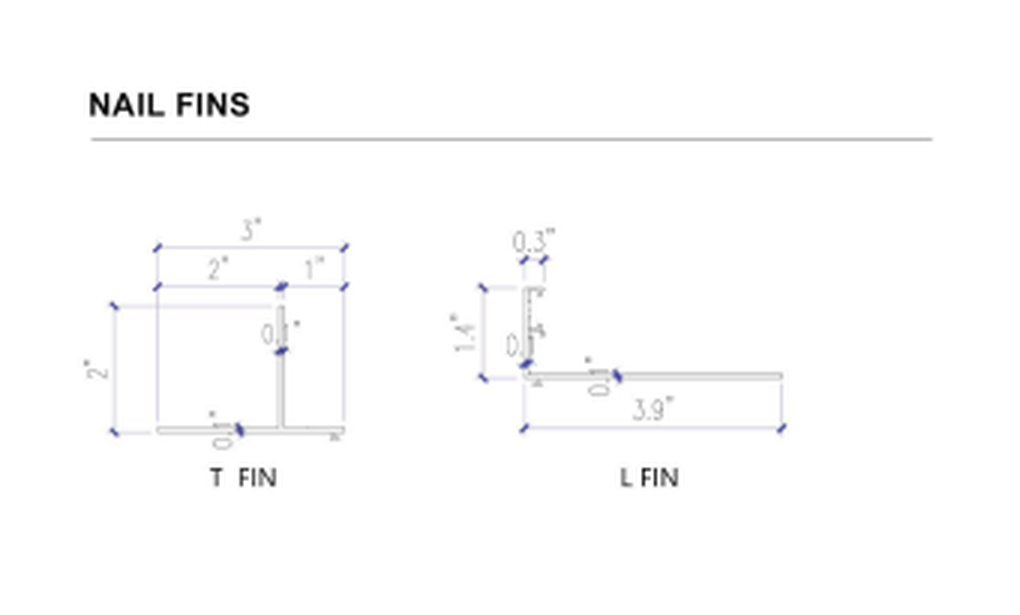

Nail Fins
Low-E, laminated and acoustic glass options.
