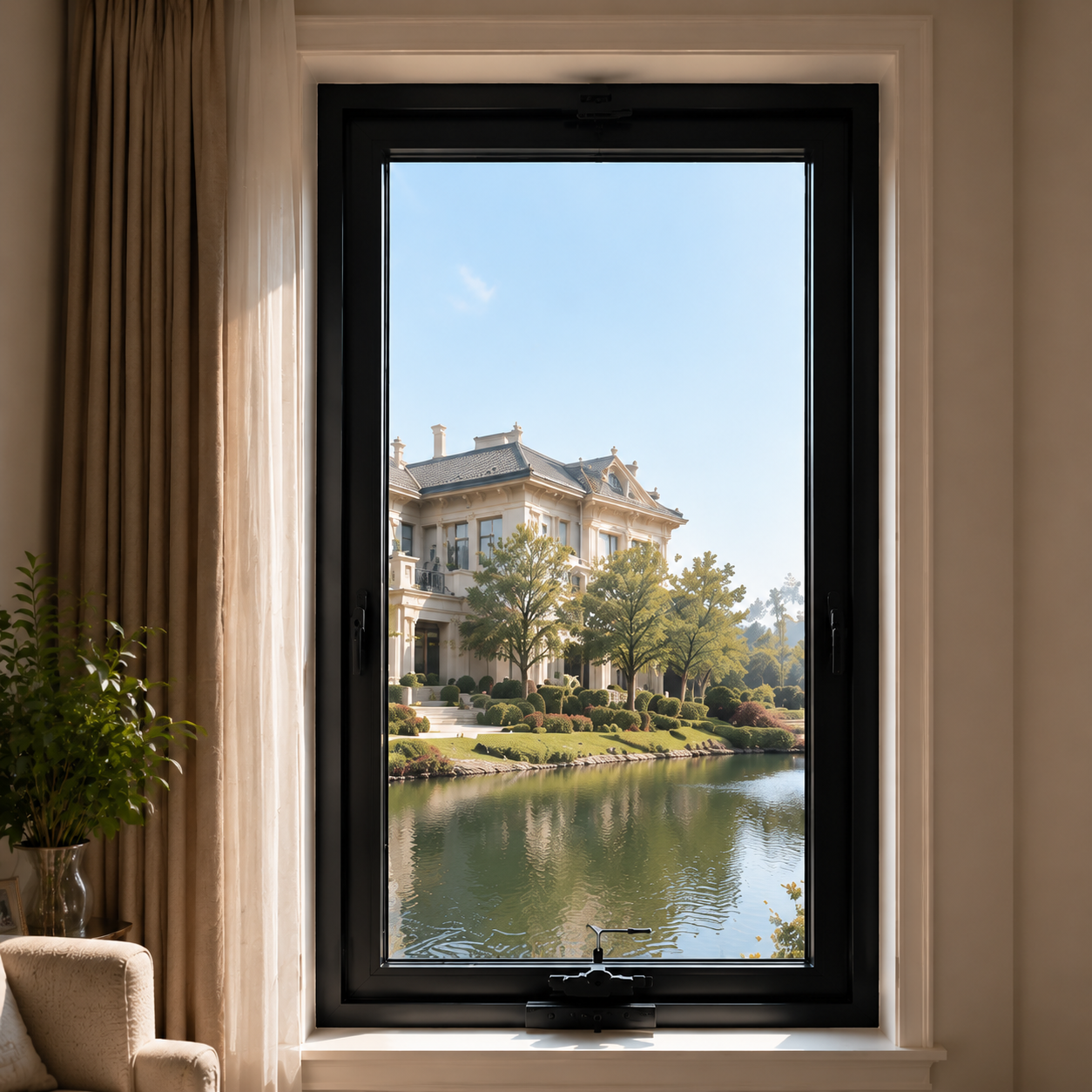

80 American-style hand-cranked window
Certified product solutions for residential, commercial, and project-based applications.
Certified Performance
Project Applications
Technical Support
Product Overview
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge

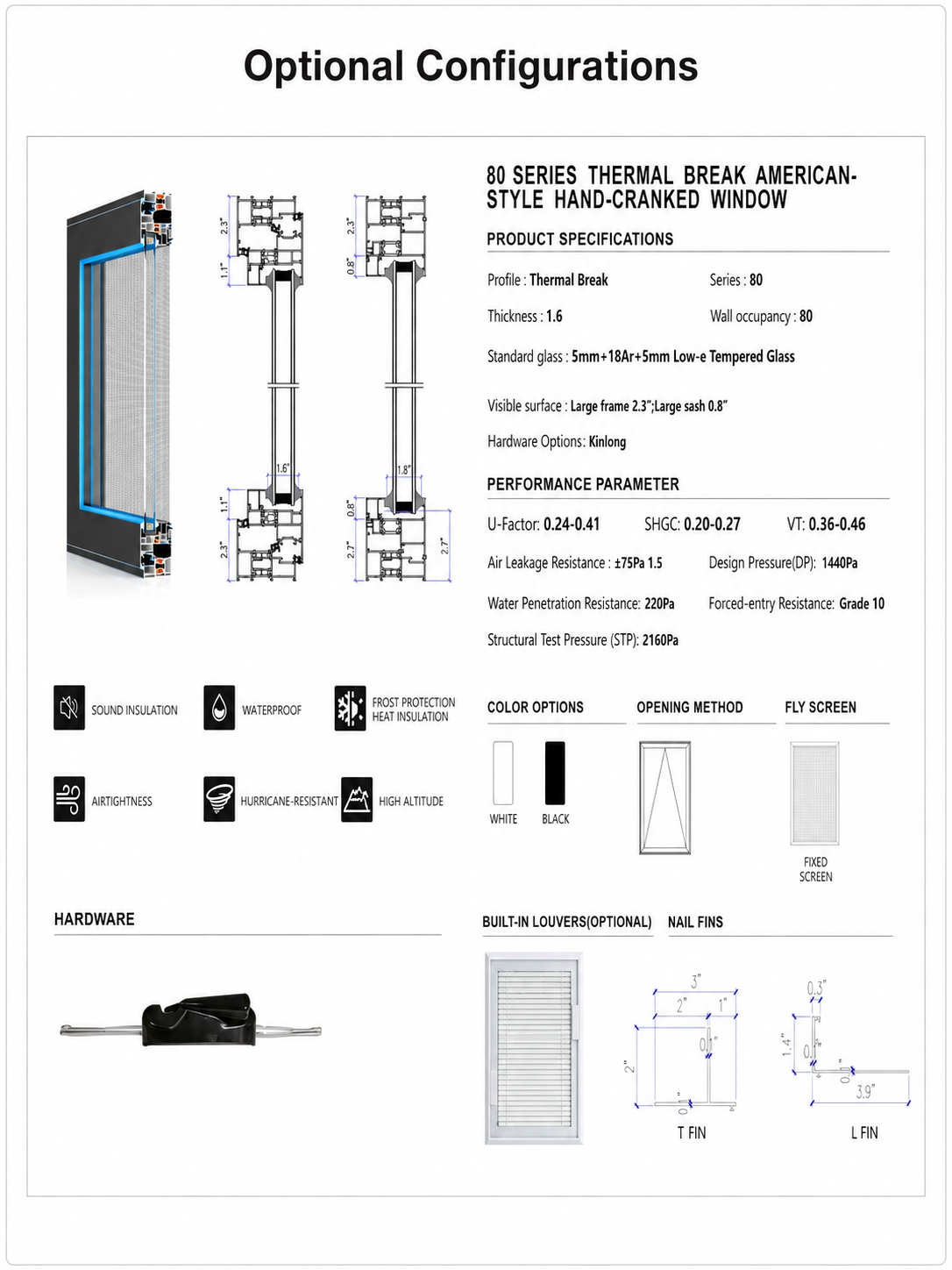

| Series | 80 Series |
| Product Type | American-Style Hand-Cranked Window |
| Profile | Thermal Break |
| Thickness | 1.6 |
| Wall Occupancy | 80 |
| Standard Glass | 5mm + 18Ar + 5mm Low-e Tempered Glass |

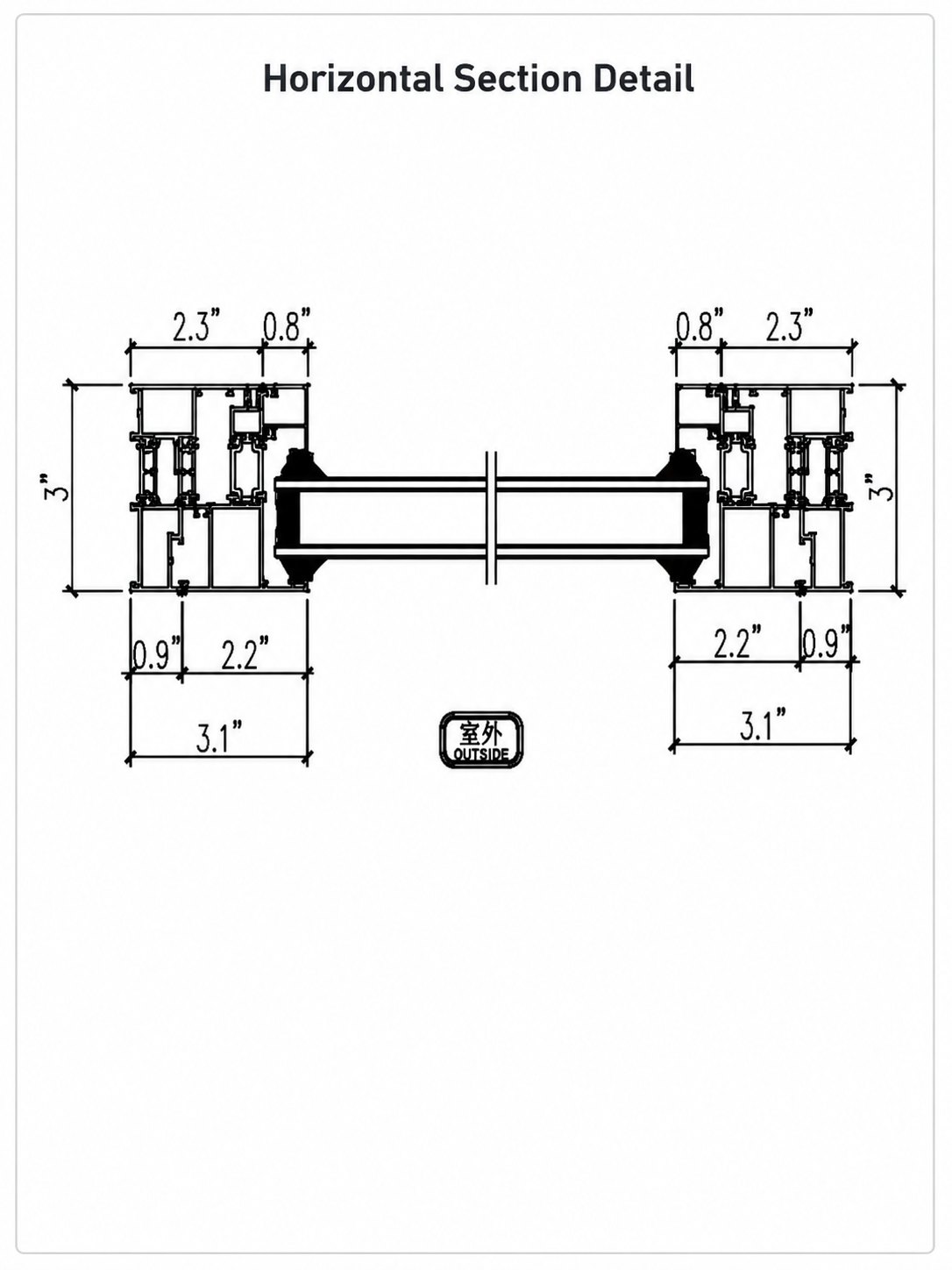

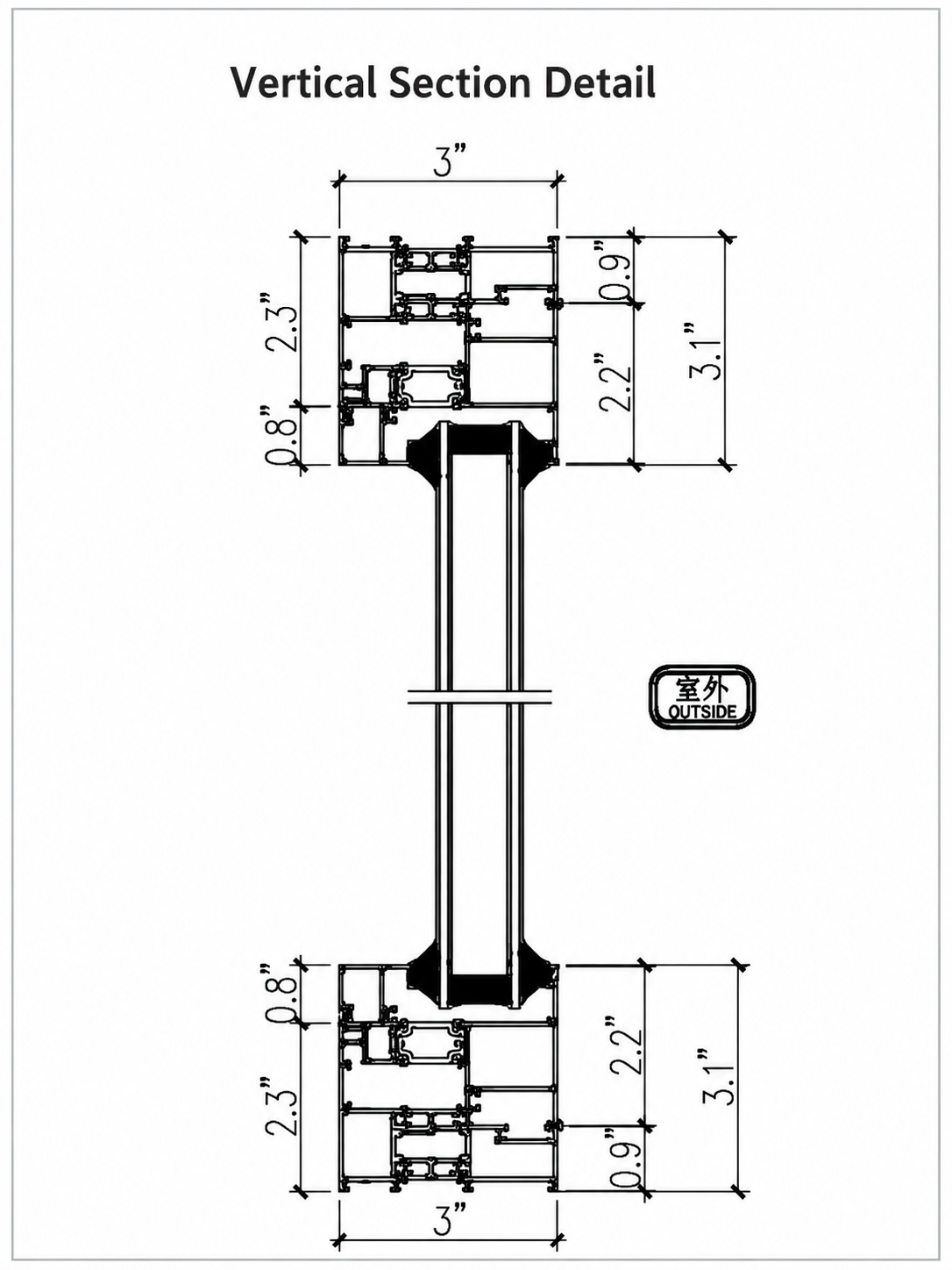

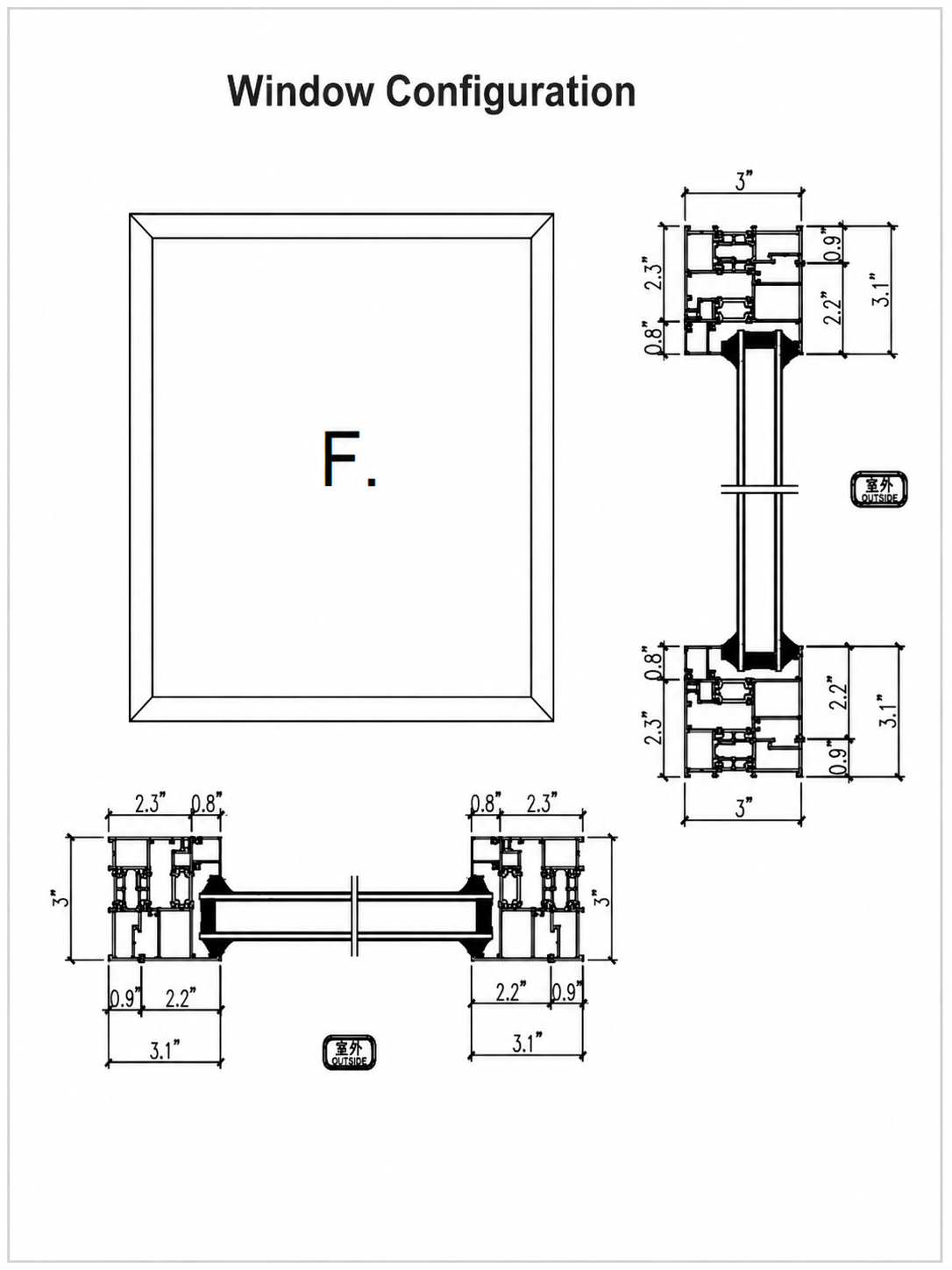

| Visible Surface | Large Frame: 2.3"; Large Sash: 0.8" |

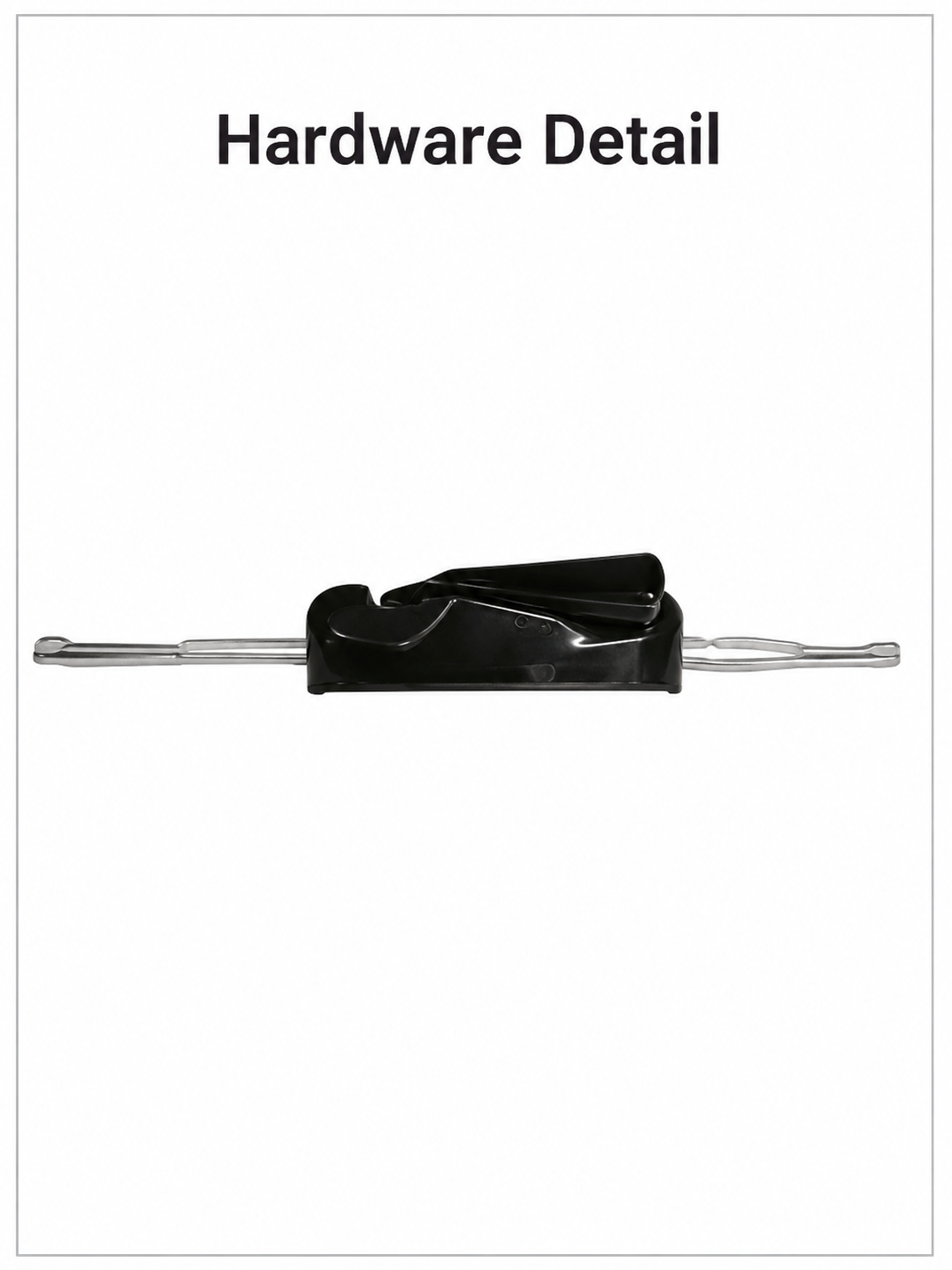

| Hardware Options | Kinlong |

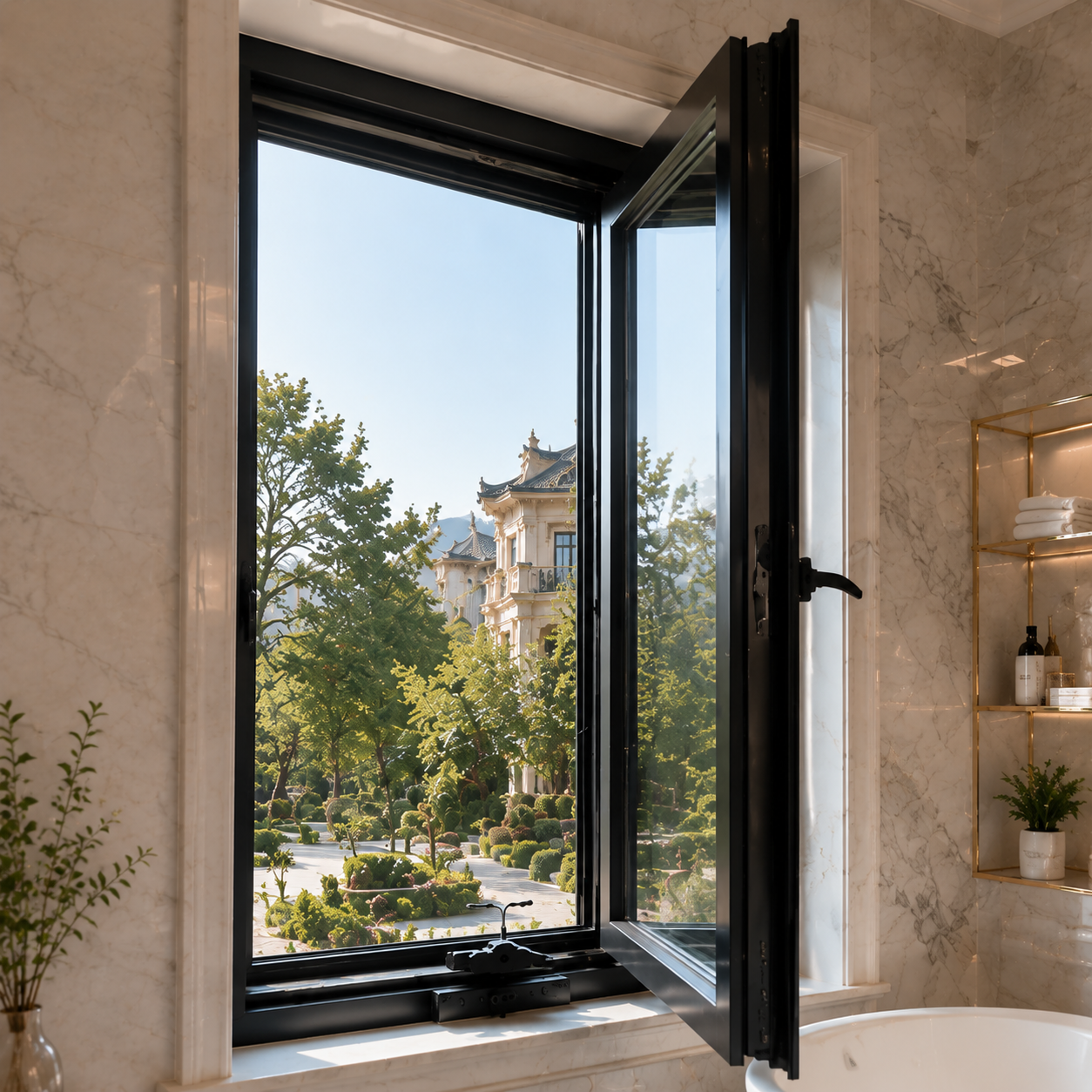

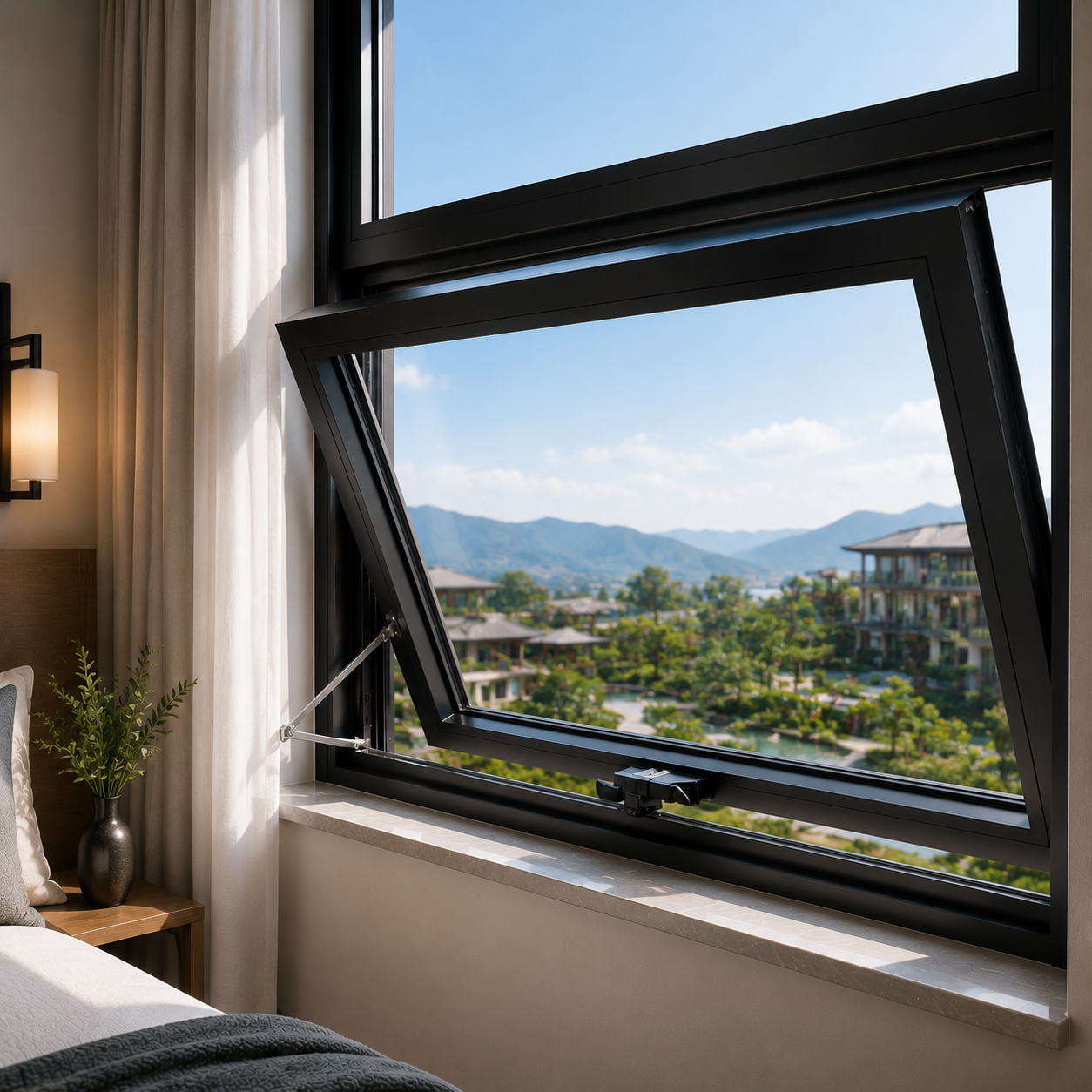

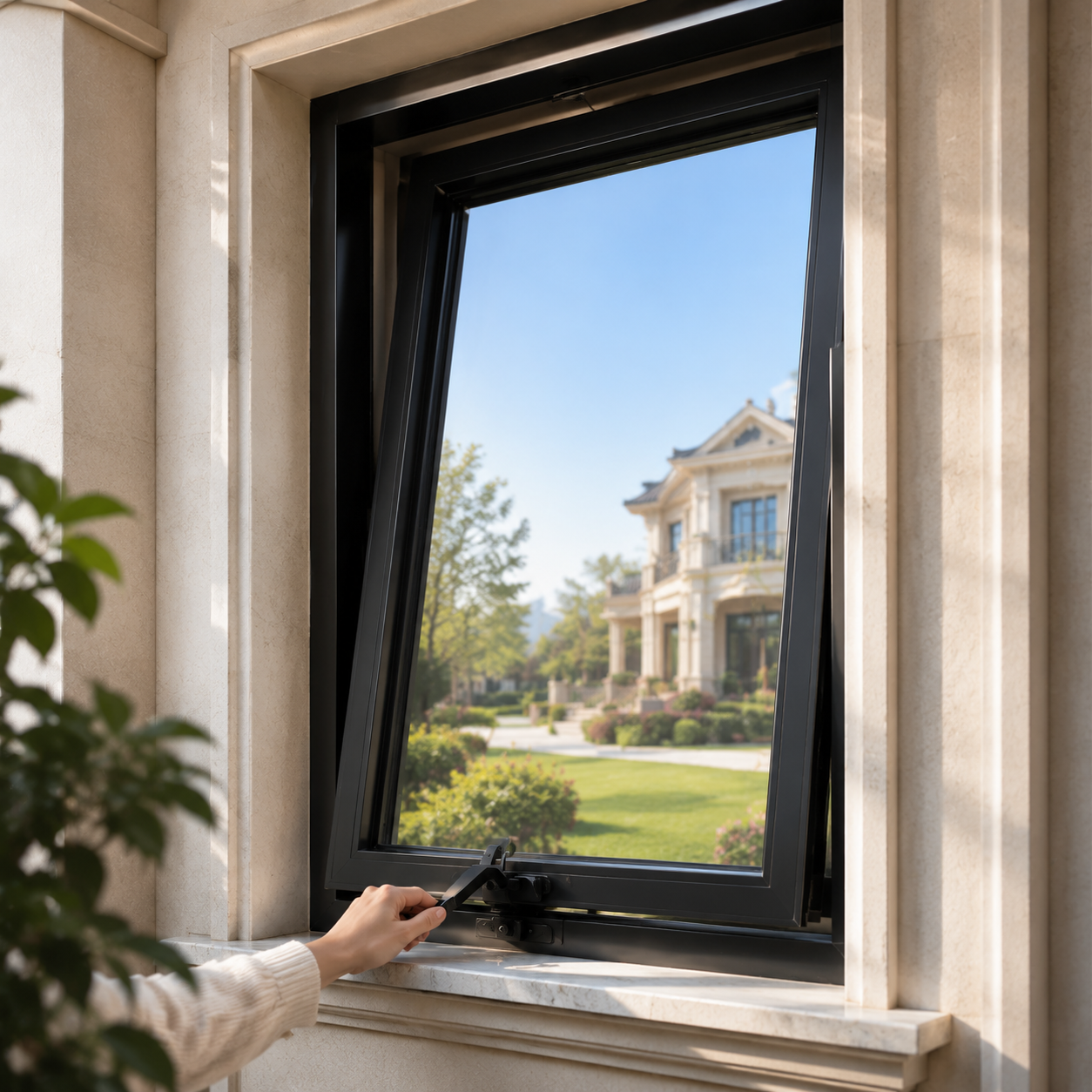

| Opening Method | Hand-Cranked |
| Color Options | White / Black |
| Fly Screen | Fixed Screen |
| Optional Configuration | Built-In Louvers |
| Nail Fin Options | T-Fin / L-Fin |
Certificates
AS2047 Certificate
NFRC Certification
NAFS Test Report
Energy Star
ISO 9001
Installation Video
Main Installation Guide
Certified system installation process overview.
Waterproofing Details
Key sealing and flashing steps.
Hardware Adjustment
Hardware and sash adjustment guide.
On-site Testing
Project testing and final inspection.
Download Center
Product Manual
PDF · 2.4 MB
Installation Guide
PDF · 3.1 MB
CAD & BIM Files
PDF · 15.5 MB
Test Report
PDF · 1.2 MB
Product Details / Features

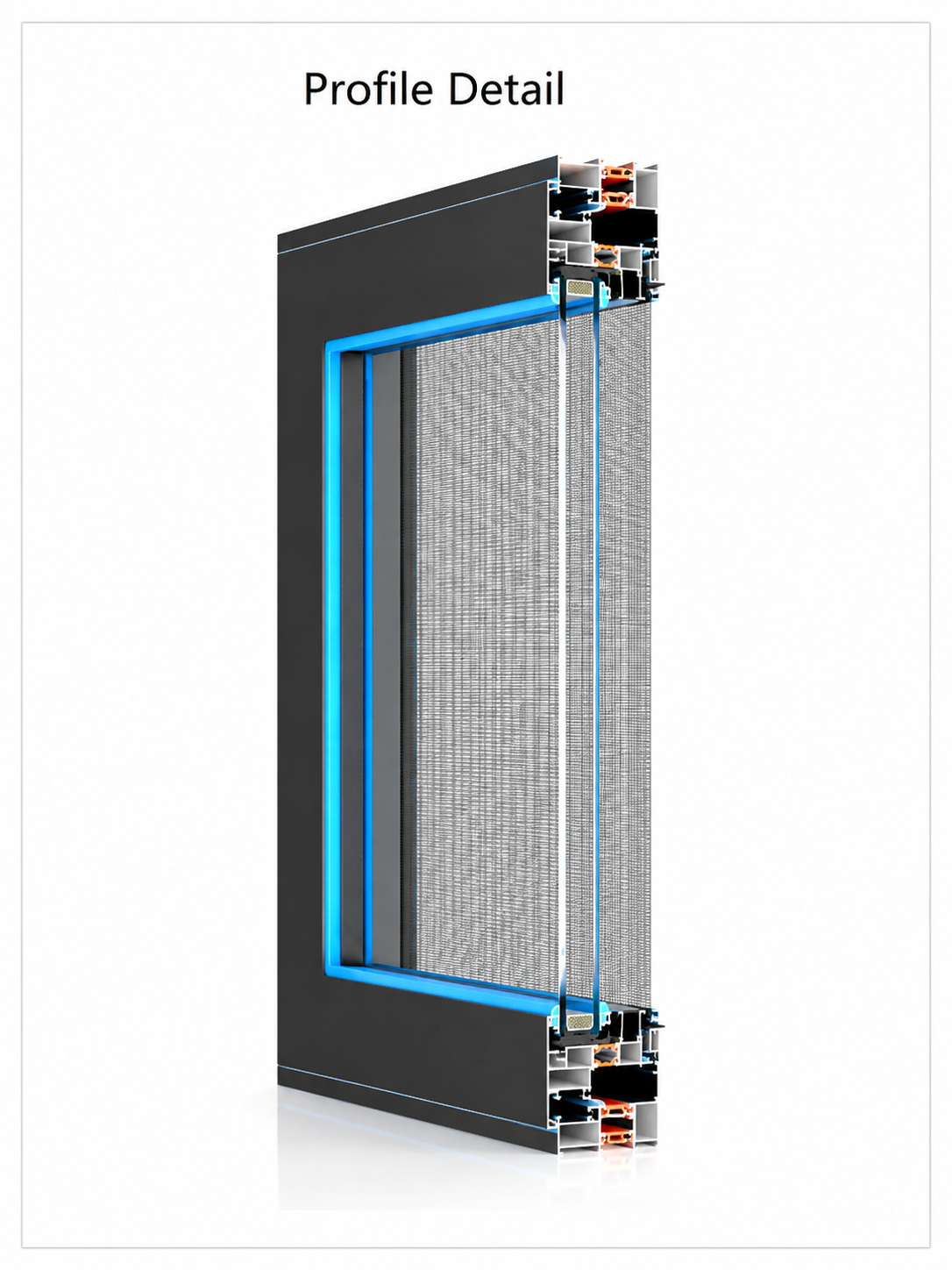

Thermal-Break Profile
Improved insulation and structural performance.
Multi-Point Locking
Secure and smooth locking system.
Drainage Design
Integrated drainage for weather resistance.
EPDM Sealing
Durable gasket system for air and water tightness.
Narrow Sightline
Clean visual profile for modern projects.
Custom Glass Options
Low-E, laminated and acoustic glass options.
Related Projects

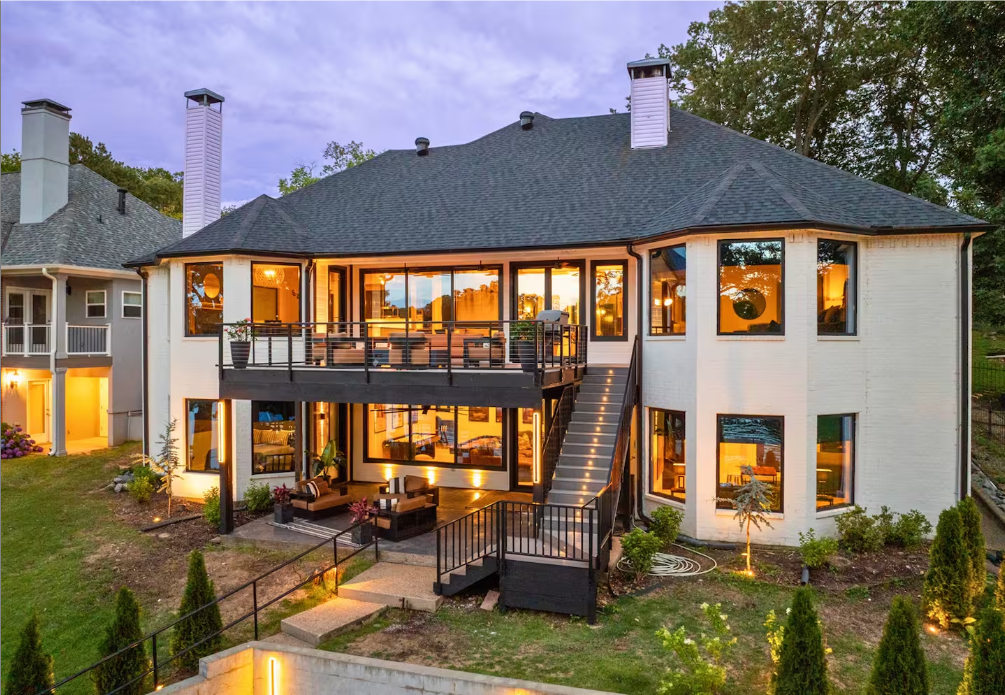

Arkansas High-End Residential Window & Door Project
Public Building | 2021
Arkansas, USA
A high-end single-family residential window and door upgrade project in Hot Springs

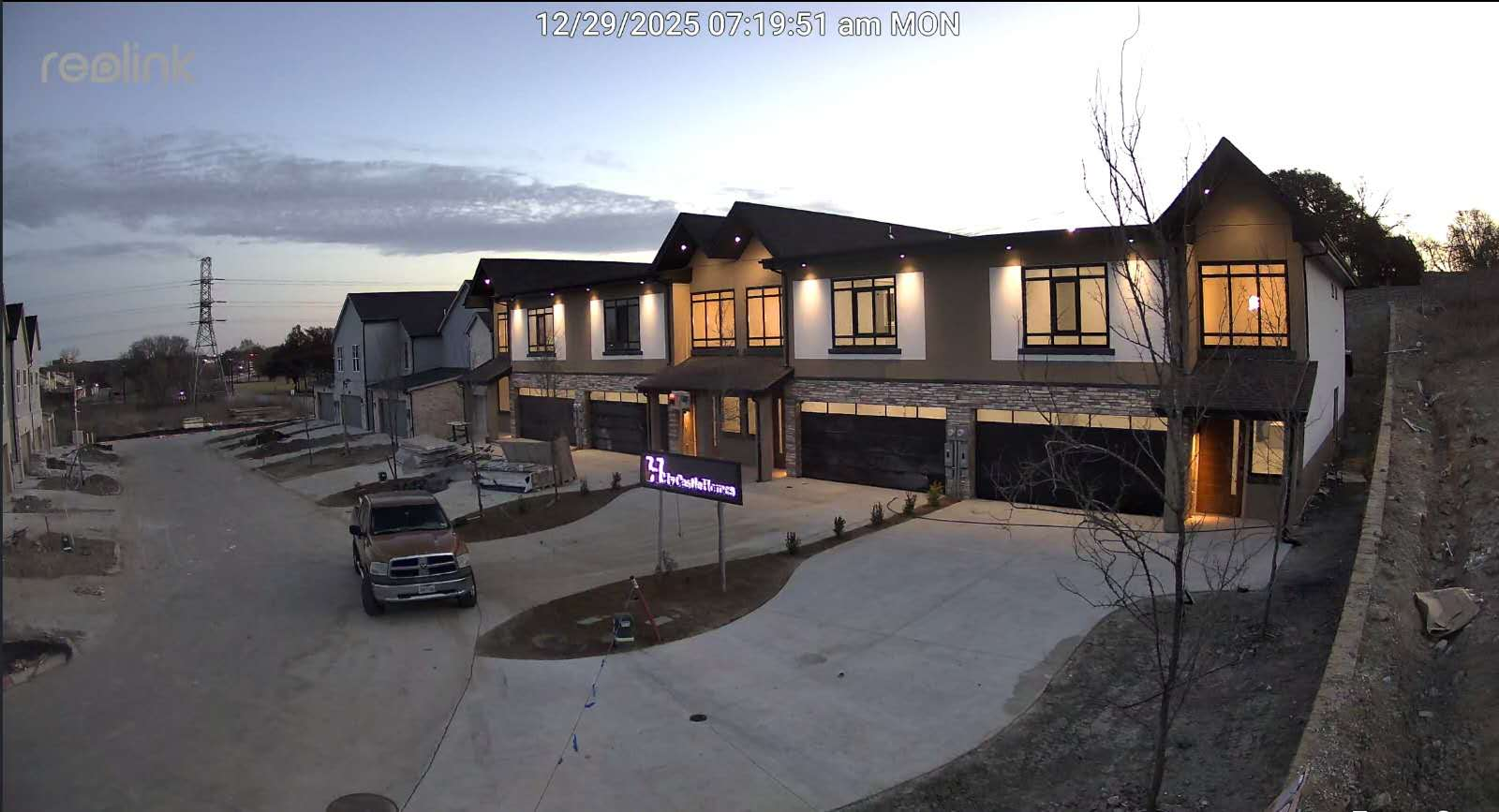

Dallas High-End Residential Window & Door Project
Apartment | 2026
Dallas, TX
this project aims to preserve the home’s elegant character while improving natural daylight and living comfort.

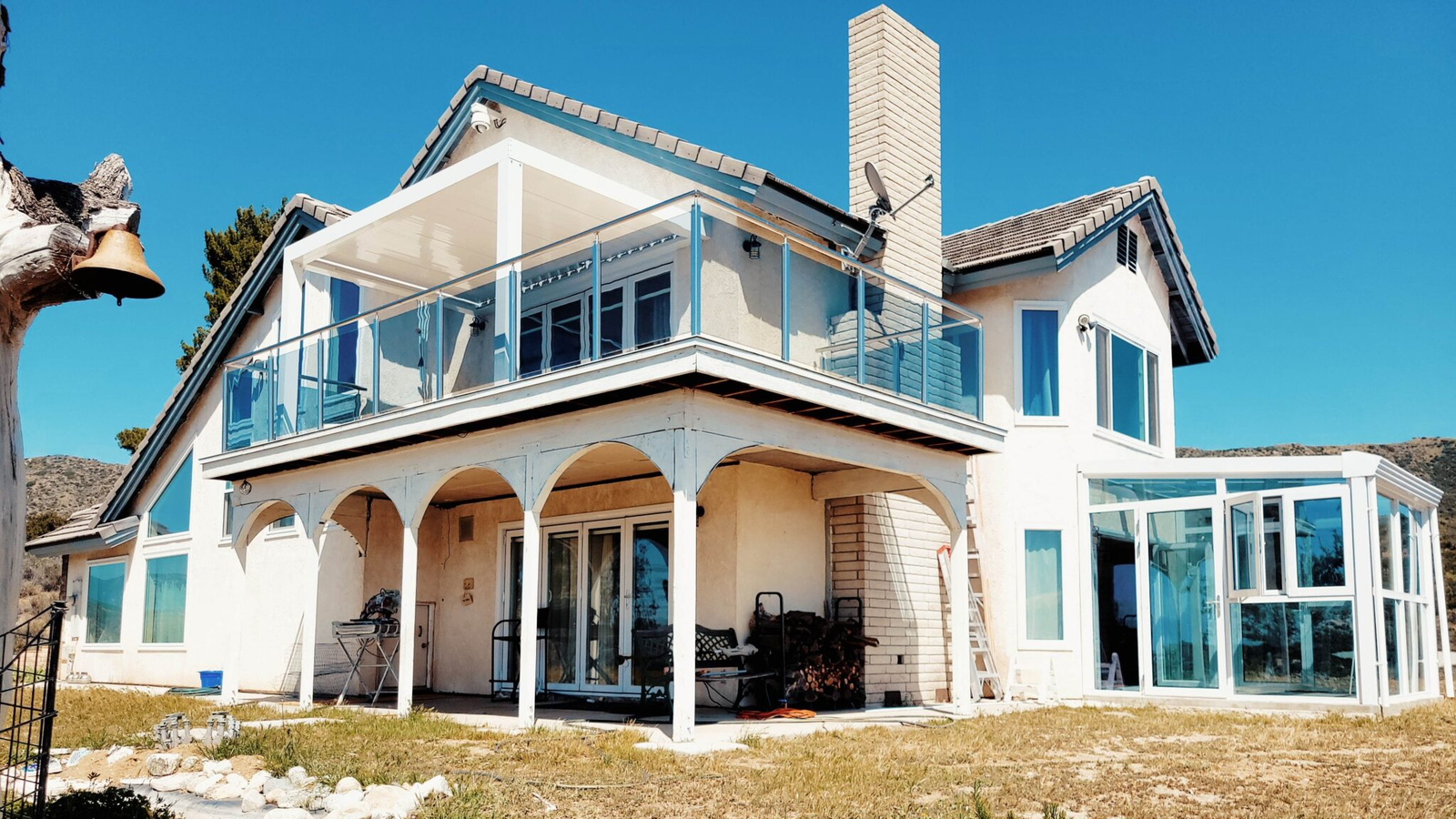

Calimesa Residential Pavilion Project
Apartment | 2024
California, USA
Bright, transparent, and naturally connected outdoor living space.

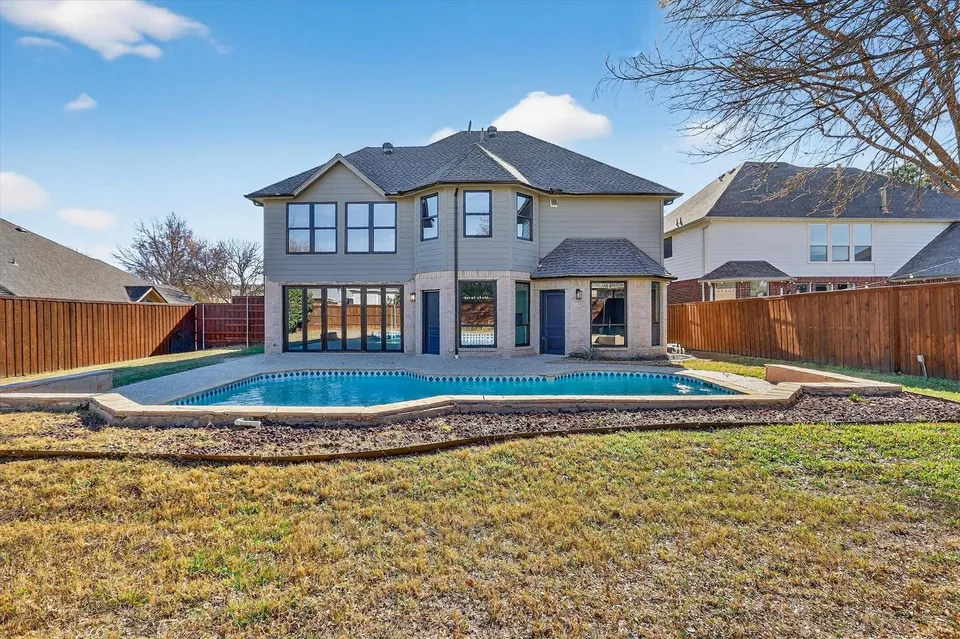

Dallas High-End Residential Window & Door Project
Public Building | 2025
North Richardson, Dallas, USA
A high-end townhouse window and door upgrade project that enhances natural daylight, improves comfort and exterior quality
Performance Parameters
| Performance Item | Result |
|---|---|
| U-Factor | 0.24–0.41 |
| Solar Heat Gain Coefficient (SHGC) | 0.20–0.27 |
| Visible Transmittance (VT) | 0.36–0.46 |
| Air Leakage Resistance | 1.5 at ±75 Pa |
| Water Penetration Resistance | 220 Pa |
| Design Pressure (DP) | 1440 Pa |
| Structural Test Pressure (STP) | 2160 Pa |
| Forced-Entry Resistance | Grade 10 |
