Certified Product
95 Tilt Turn
Certified product solutions for residential, commercial, and project-based applications.
Certified Performance
Project Applications
Technical Support
Product Overview
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
| Series | 95 Series |
| Product Type | Thermal Break Tilt-Turn Window |
| Profile | Thermal Break |
| Thickness | 1.8 |
| Wall Occupancy | 95 |

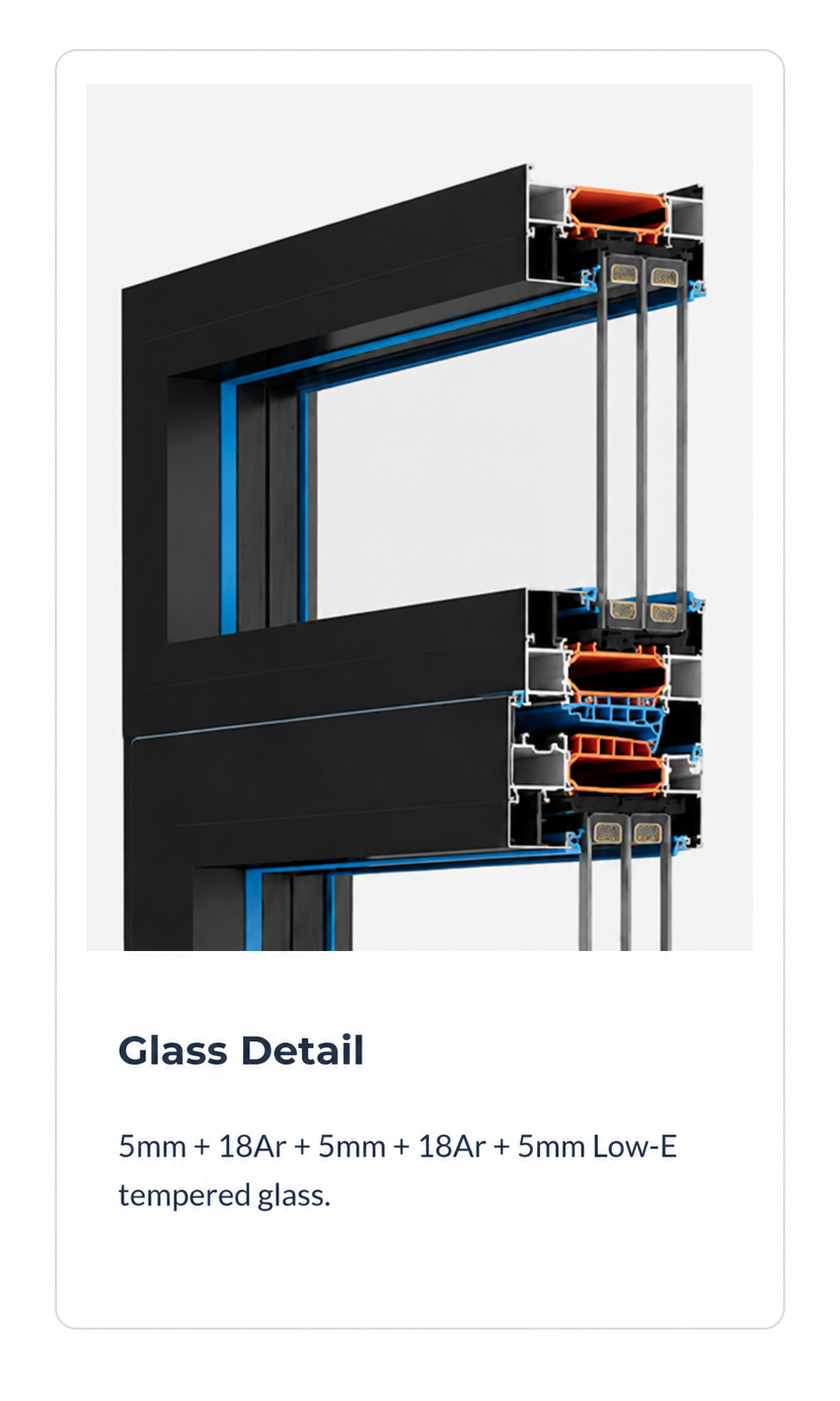

| Standard Glass | 5 + 18Ar + 5 + 18Ar + 5 Low-E Tempered Glass |

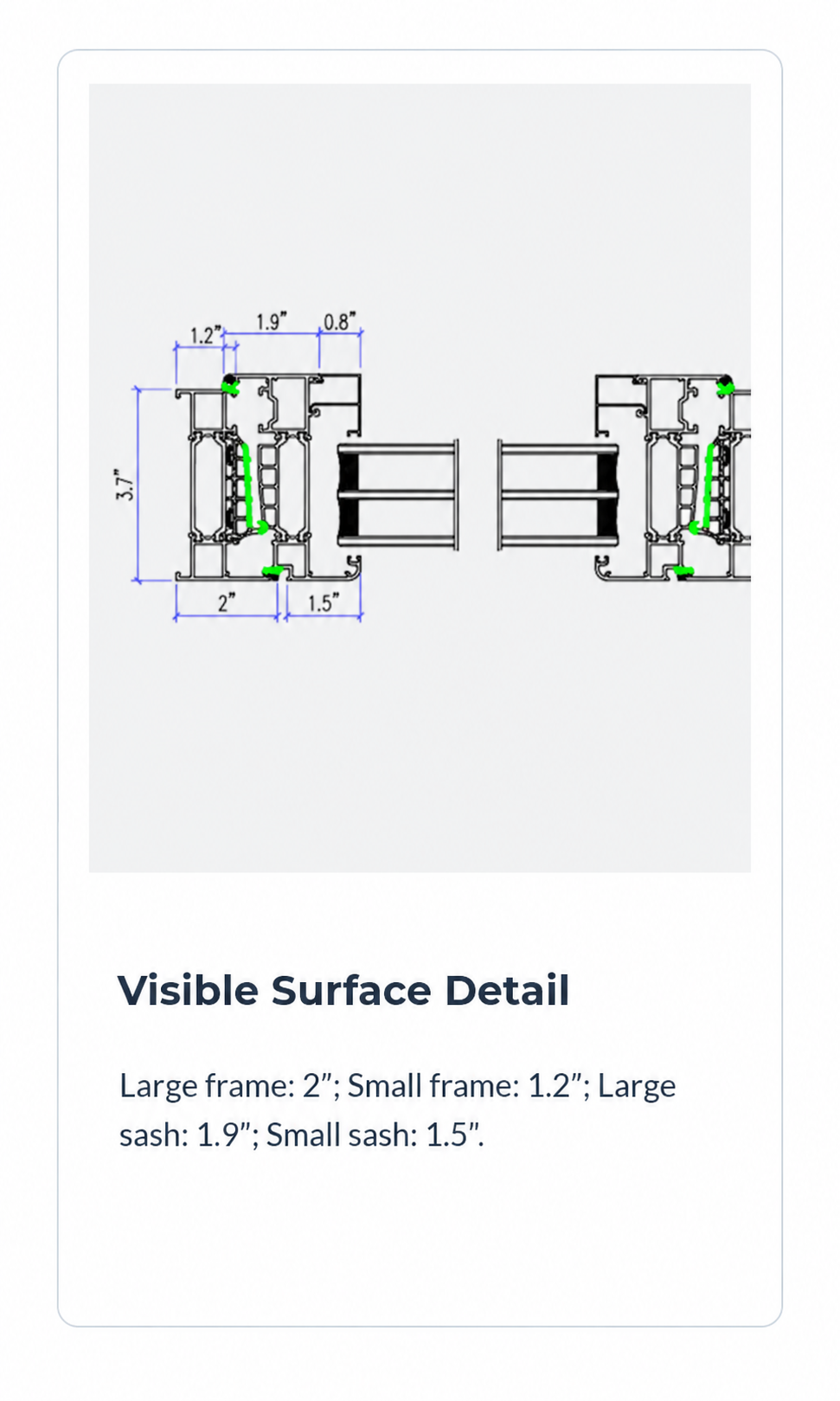

| Visible Surface | Large Frame: 2"; Small Frame: 1.2"; Large Sash: 1.9"; Small Sash: 1.5" |

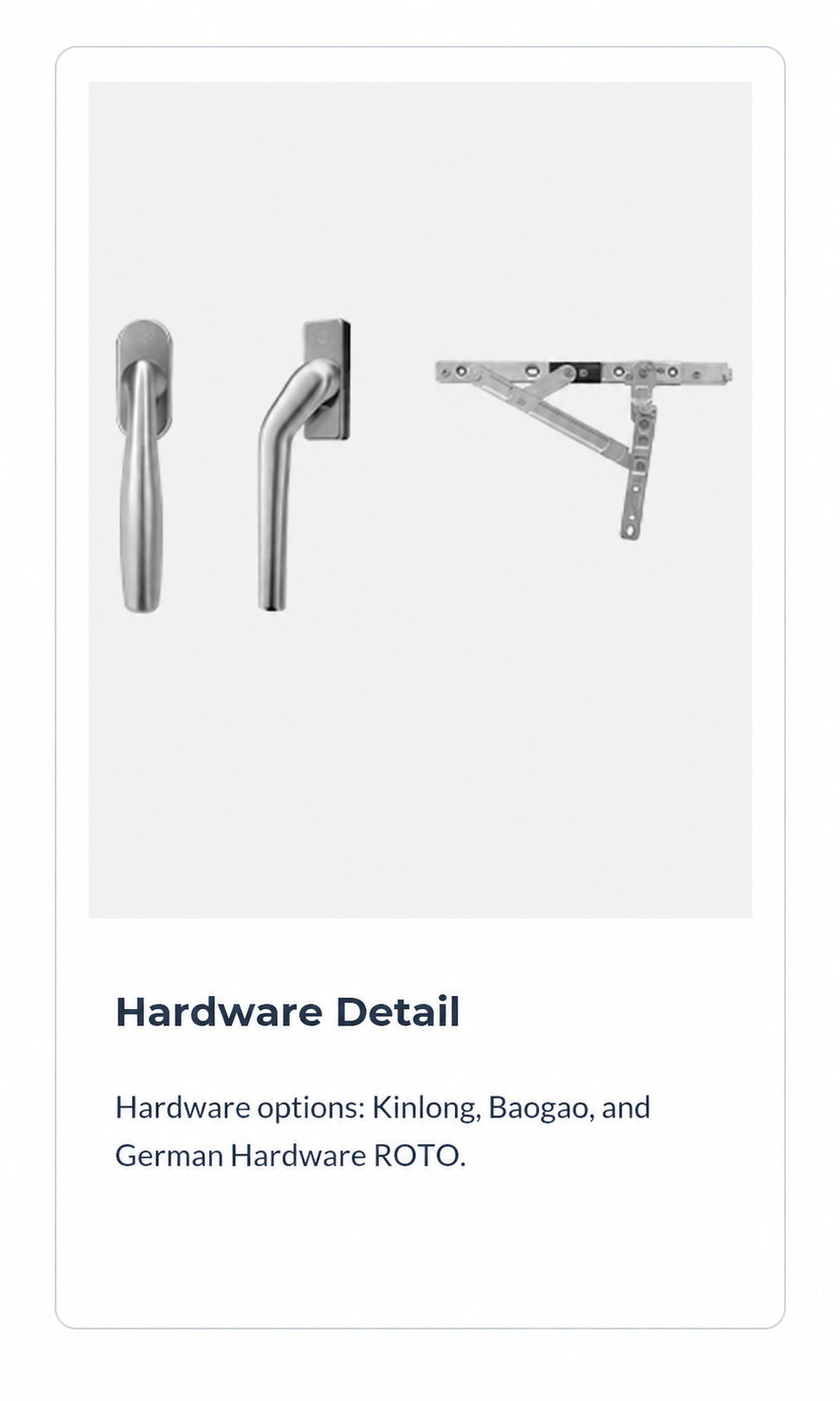

| Hardware Options | Kinlong, Baogao, German Hardware ROTO |

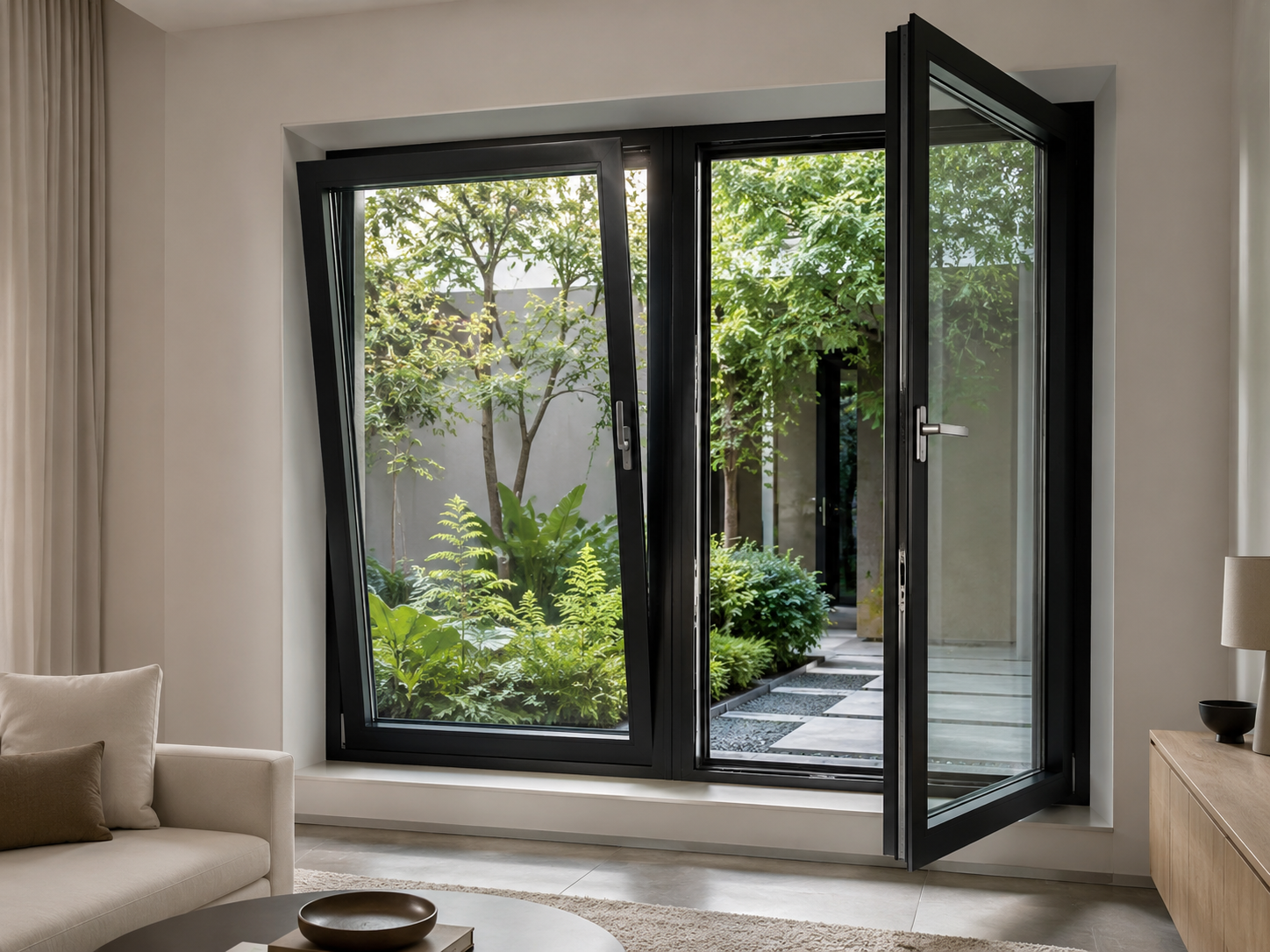

| Opening Method | Tilt-Turn |
| Color Options | White / Black |
| Fly Screen Options | Roller Screen / Folding Screen / Fixed Screen |

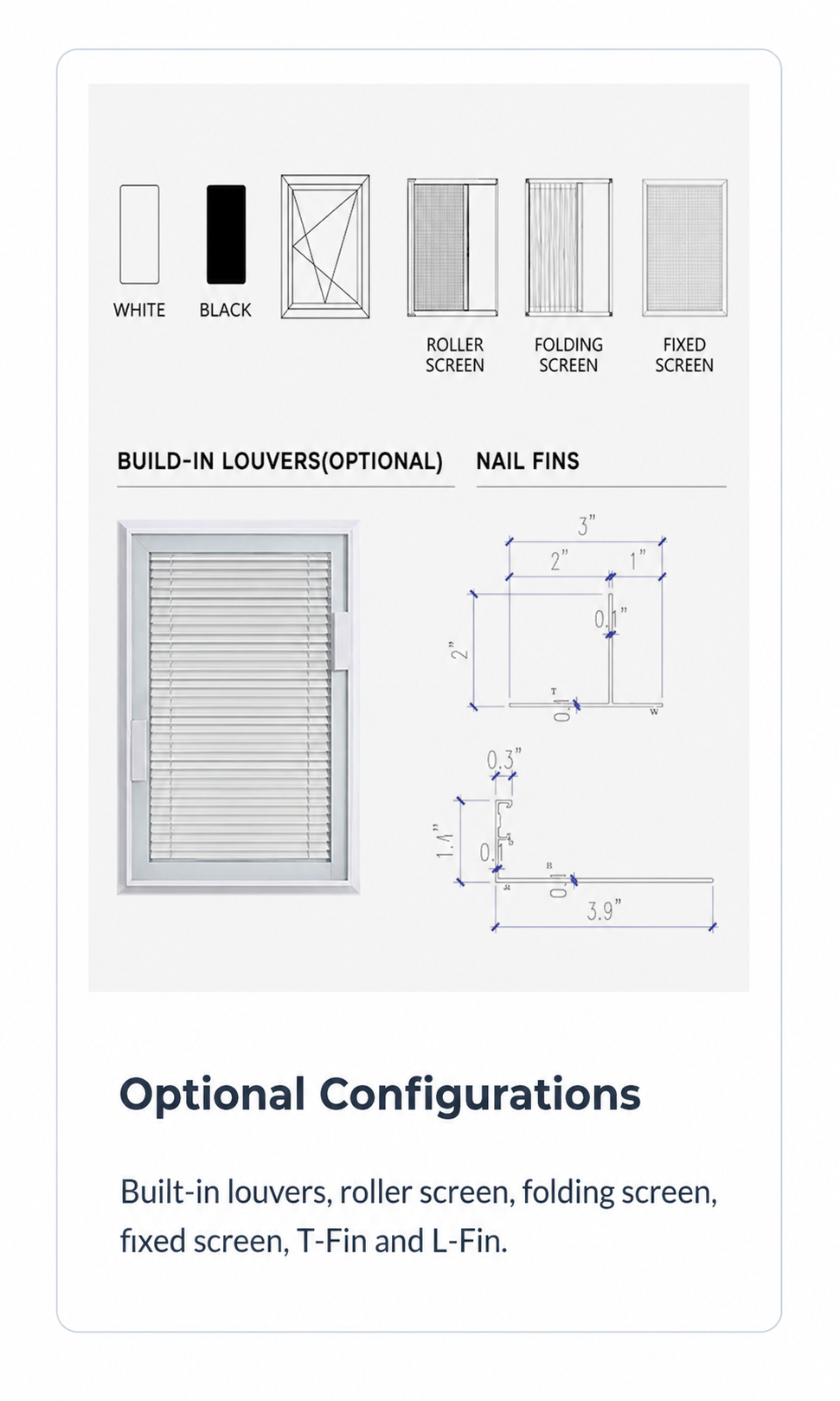

| Optional Configuration | Built-In Louvers |
| Nail Fin Options | T-Fin / L-Fin |
Certificates
AS2047 Certificate
NFRC Certification
NAFS Test Report
Energy Star
ISO 9001
Installation Video
Main Installation Guide
Certified system installation process overview.
Waterproofing Details
Key sealing and flashing steps.
Hardware Adjustment
Hardware and sash adjustment guide.
On-site Testing
Project testing and final inspection.
Download Center
Product Manual
PDF · 2.4 MB
Installation Guide
PDF · 3.1 MB
CAD & BIM Files
PDF · 15.5 MB
Test Report
PDF · 1.2 MB
Product Details / Features

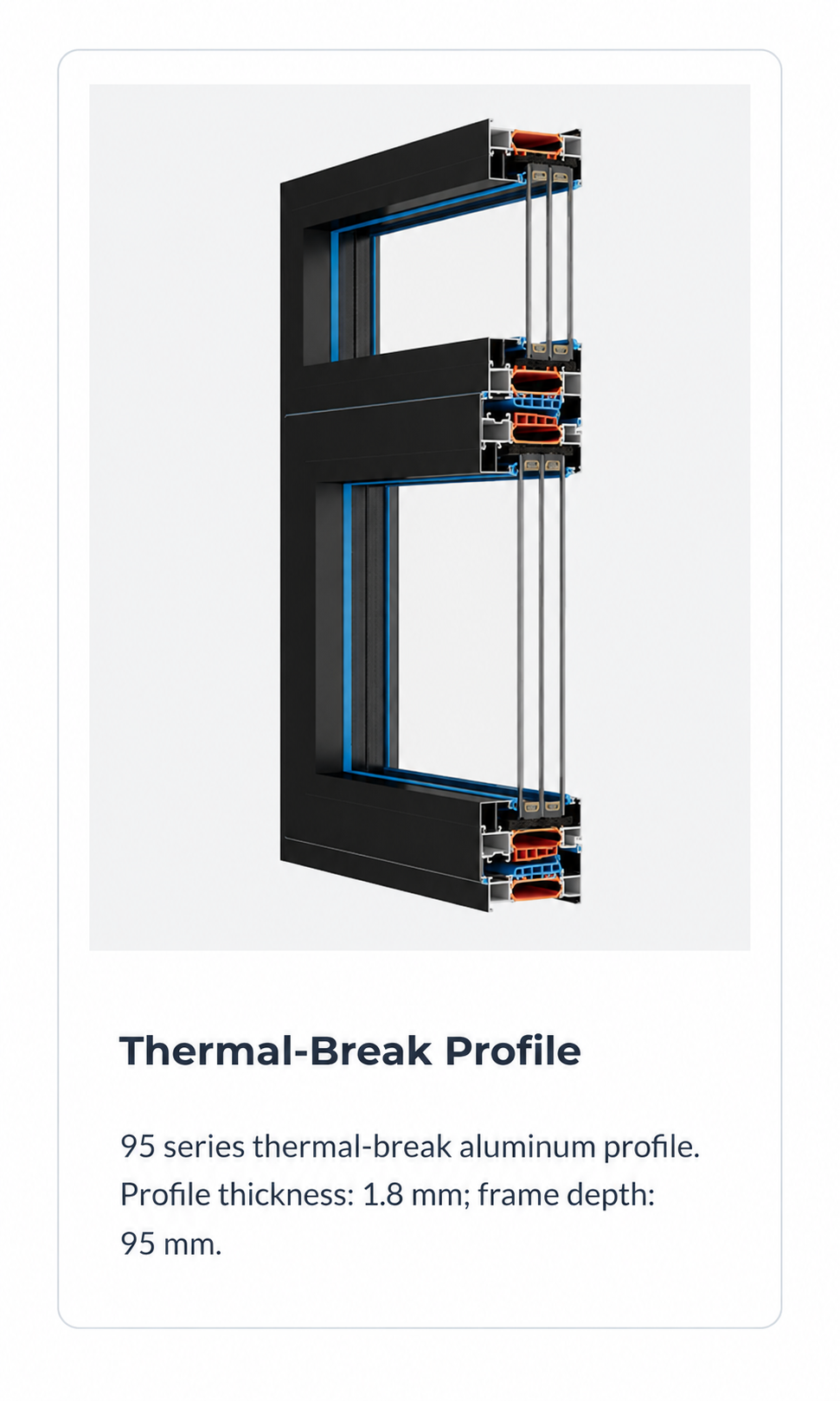

Thermal-Break Profile
Improved insulation and structural performance.
Multi-Point Locking
Secure and smooth locking system.
Drainage Design
Integrated drainage for weather resistance.
EPDM Sealing
Durable gasket system for air and water tightness.
Narrow Sightline
Clean visual profile for modern projects.
Custom Glass Options
Low-E, laminated and acoustic glass options.
Related Projects

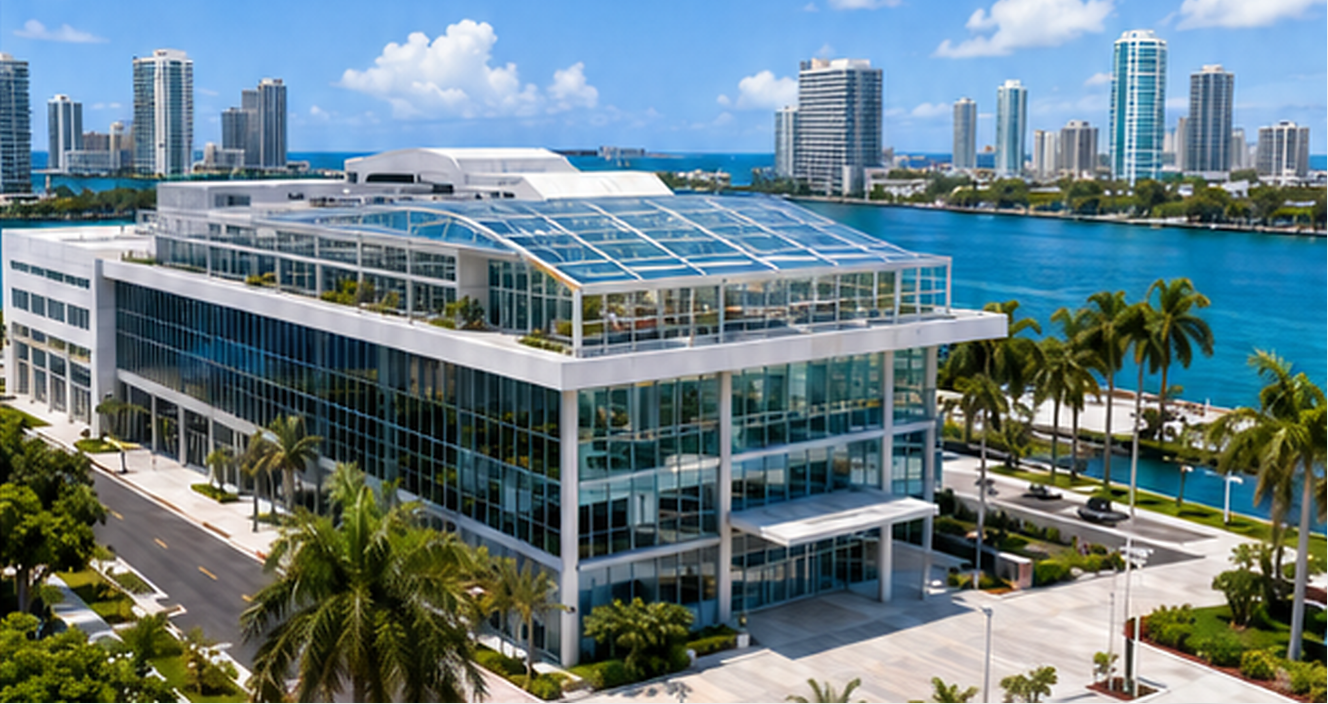

Miami Bayfront Resort Hotel Project
Hotel | 2024
Miami, Florida, USA
Impact-resistant aluminum windows, sliding doors, and curtain wall systems designed for coastal weather, panoramic ocean views, and long-term guest comfort.

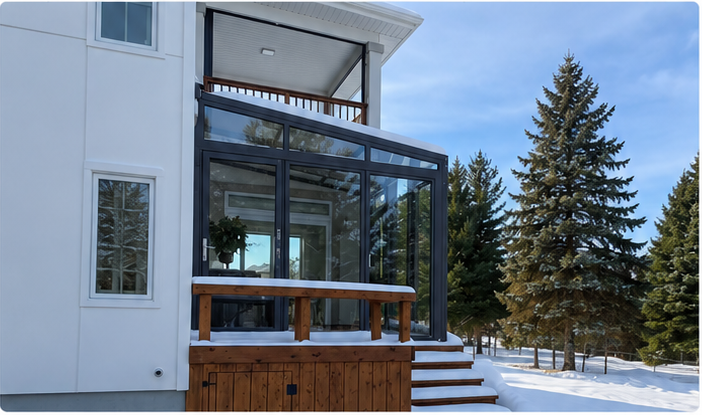

Kanata Fixed Sunroom Project
Public Building | 2020
Kanata, Ontario, Canada
A four-season extension blended with the natural scenery of Kanata, bringing sunlight and warmth into everyday home life

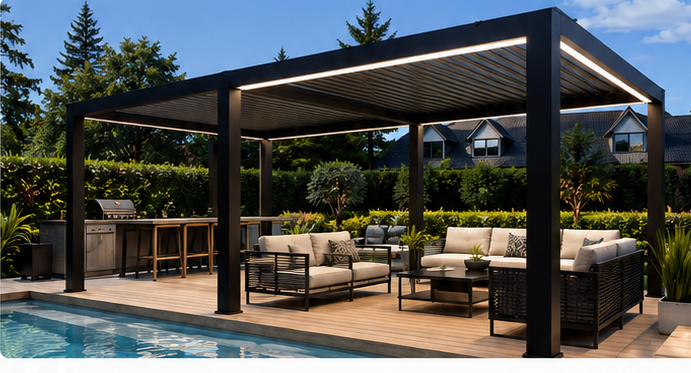

Wellington Outdoor Pavilion Project
Apartment | 2023
Wellington, New Zealand
Located in Wellington, New Zealand, this project creates a modern outdoor pavilion around the pool and courtyard area.It focuses on shading, openness, and leisure ambience.

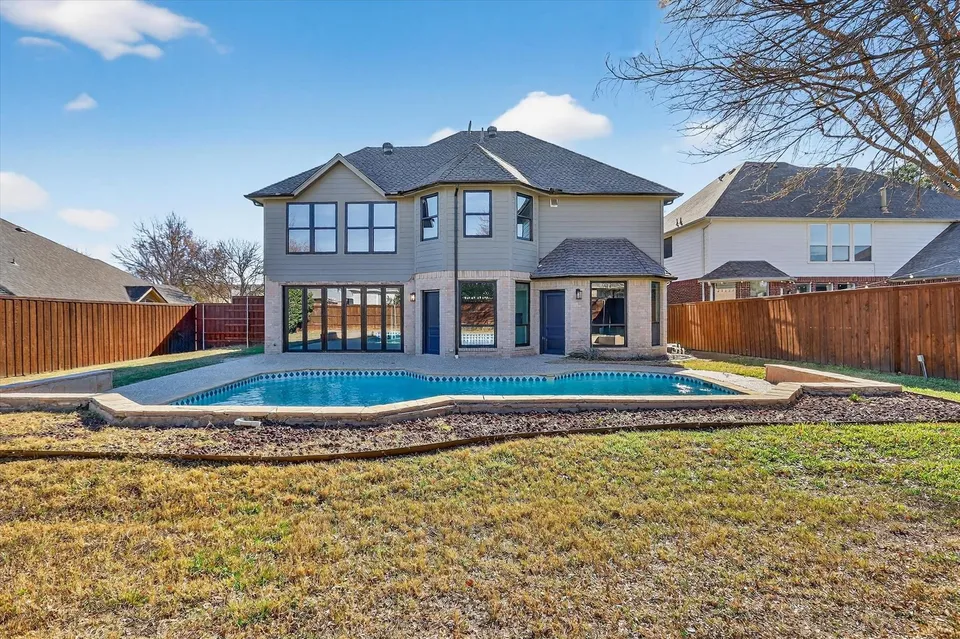

Dallas High-End Residential Window & Door Project
Apartment | 2026
Dallas, TX
this project aims to preserve the home’s elegant character while improving natural daylight and living comfort.
Performance Parameters
| Performance Item | Result |
|---|---|
| U-Factor | 0.20–0.24 |
| Solar Heat Gain Coefficient (SHGC) | 0.20–0.27 |
| Visible Transmittance (VT) | 0.36–0.46 |
| Air Leakage Resistance | 1.5 at ±75 Pa |
| Water Penetration Resistance | 220 Pa |
| Design Pressure (DP) | 1440 Pa |
| Structural Test Pressure (STP) | 2160 Pa |
| Forced-Entry Resistance | Grade 10 |
